Aocoda-RC F475S V4 Stack F405 V4 FC+75A ESC



$69.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
Aocoda-RC F475S V4 Stack F405 V4 FC+75A ESC for
FPV Racing Drone DIY Accessories
Product Details

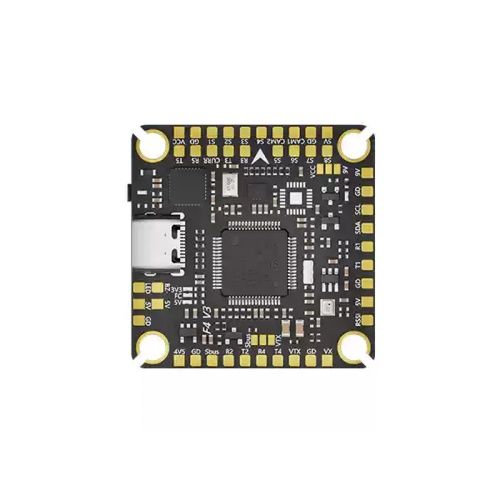

Aocoda-RC F405 V4 FC
Main control chip:STM32F405RGT6
Gyroscope:ICM42688P
Barometer:SPL06-001
OSD:Supported
Black box:16MB
Motor output:8ch
LED light strip:Supported
Buzzer:Supported
Universal serial port:5ch
Output power:5V/3A, 9V/2.5A
Mounting hole:M3 30.5mmx30.5mm

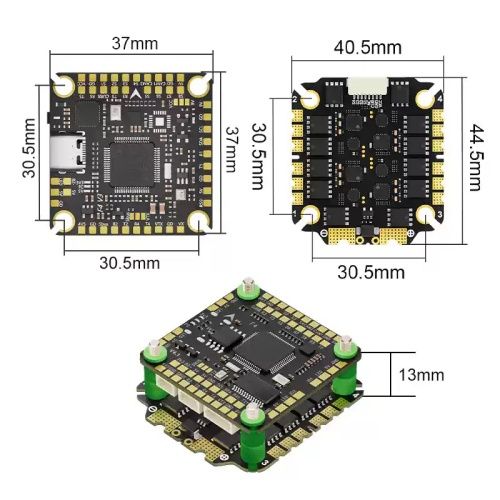

Dimensions:37mmx37mm
Weight:9.4g
Firmware name:AOCODARCF405V3
Input voltage:DC 12V-33V(3-8S Lipo)
Receiver protocol:ELRS/CRSF/S.BUS/Frsky/Futabayfysky/TBs Crossfre/DSMX

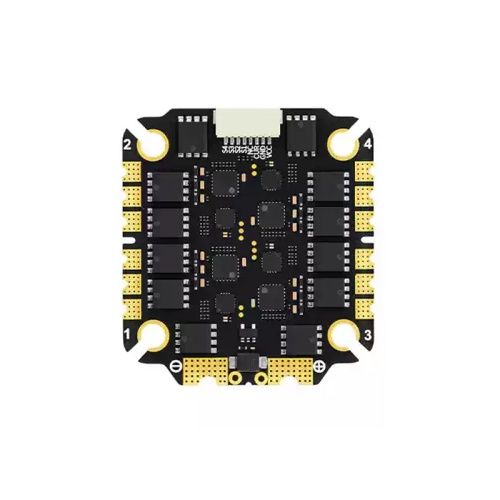

Aocoda-RC 3075S ESC
Firmware version:Bluejay D_X_30_v0.21.1-RC1-hex
Input voltage:DC 9V~40V(3-8SLipo)
Continuous maximum current:75Ax4
Instantaneous current:80Ax4
ESC telemetry:Supported
BEC:None
Dimensions:44.5mmx40.5mm
Mounting hole:M3 30.5mmx30.5mm
Weight:15.8g
Ammeter ratio:77
Protocol name:DShot150/300/600&MultiShot/OneShot etc.
Item Packing
Aocoda-RC F405 V4 FC x1
Aocoda-RC 3075S ESC x1
8PIN SH1.0MM reverse connection cable x1
M3*8 MM shock-absorbing ball x8
35V 1000UF capacitor x1
XT60 power cord x1
Nut x8
M3*30MM screw x4
AR-F475S
Aocoda-RC F475S V4 Stack F405 V4 FC+75A ESC for FPV Racing Drone DIY Accessories
Aocoda-RC F475S V4 Stack F405 V4 FC+75A ESC for FPV Racing Drone DIY Accessories
Aocoda-RC F475S V4 Stack F405 V4 FC+75A ESC for FPV Racing Drone DIY Accessories
Aocoda-RC F475S V4 Stack F405 V4 FC+75A ESC for FPV Racing Drone DIY Accessories
  • 100 Units in Stock

Be the first to write a review.  Write a Review.
