CUAV X25 EVO Intelligent Controller Ardupilot Pixhawk


$349.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features

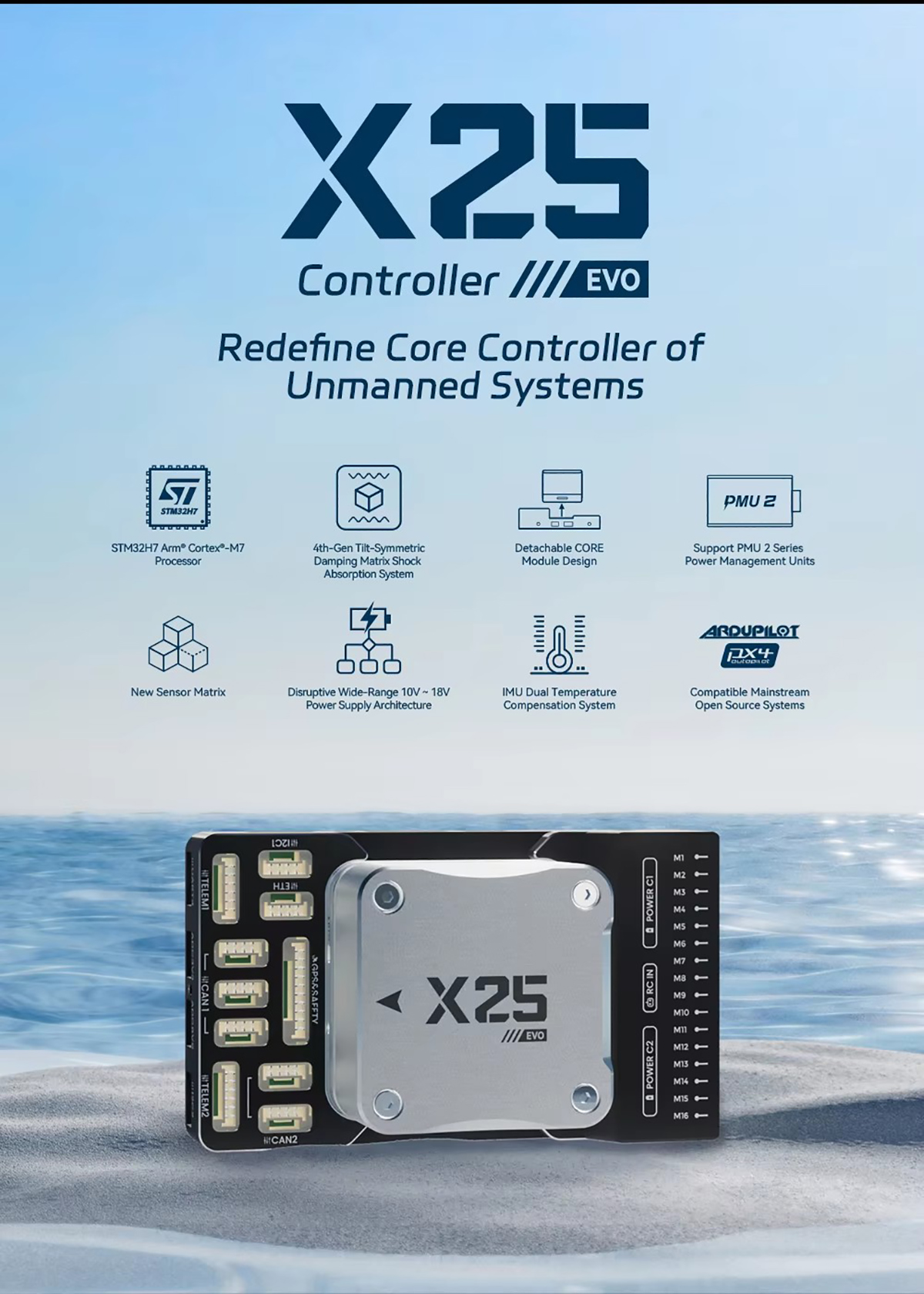

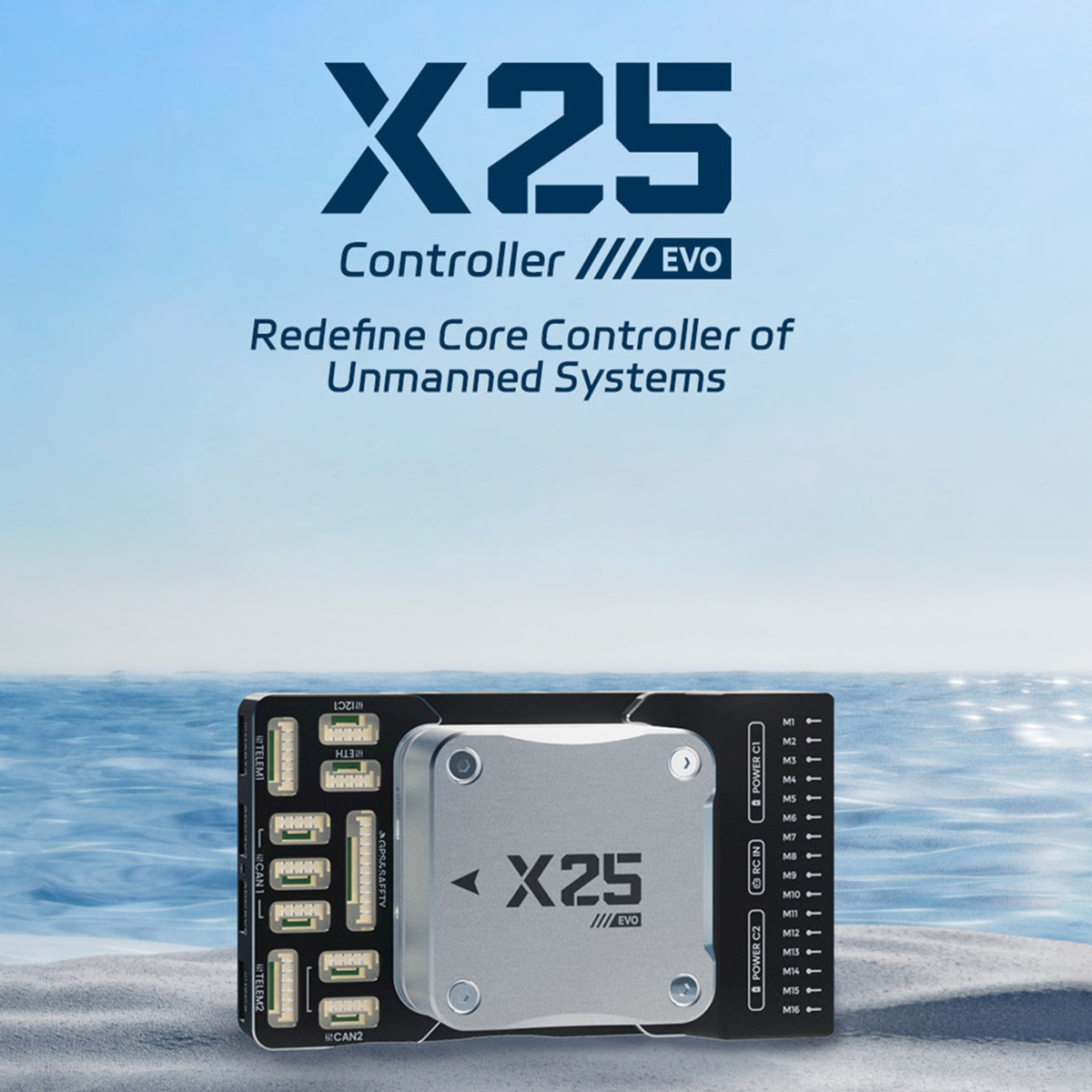

CUAV X25 EVO Intelligent Controller Ardupilot Pixhawk
Open Source Controller for Boat Multi-Rotor Vtol Drone
X25 EVO is a high-performance industrial-grade controller
from CUAV. Compared with traditional controllers, X25
EVO has achieved breakthrough upgrades and optimization in aspects
such as power rails, sensors, shock absorption systems,
temperature compensation systems, hardware reliability
and device compatibility, significantly improving its
performance and stability in complex environments and meeting
the application needs of various unmanned system.

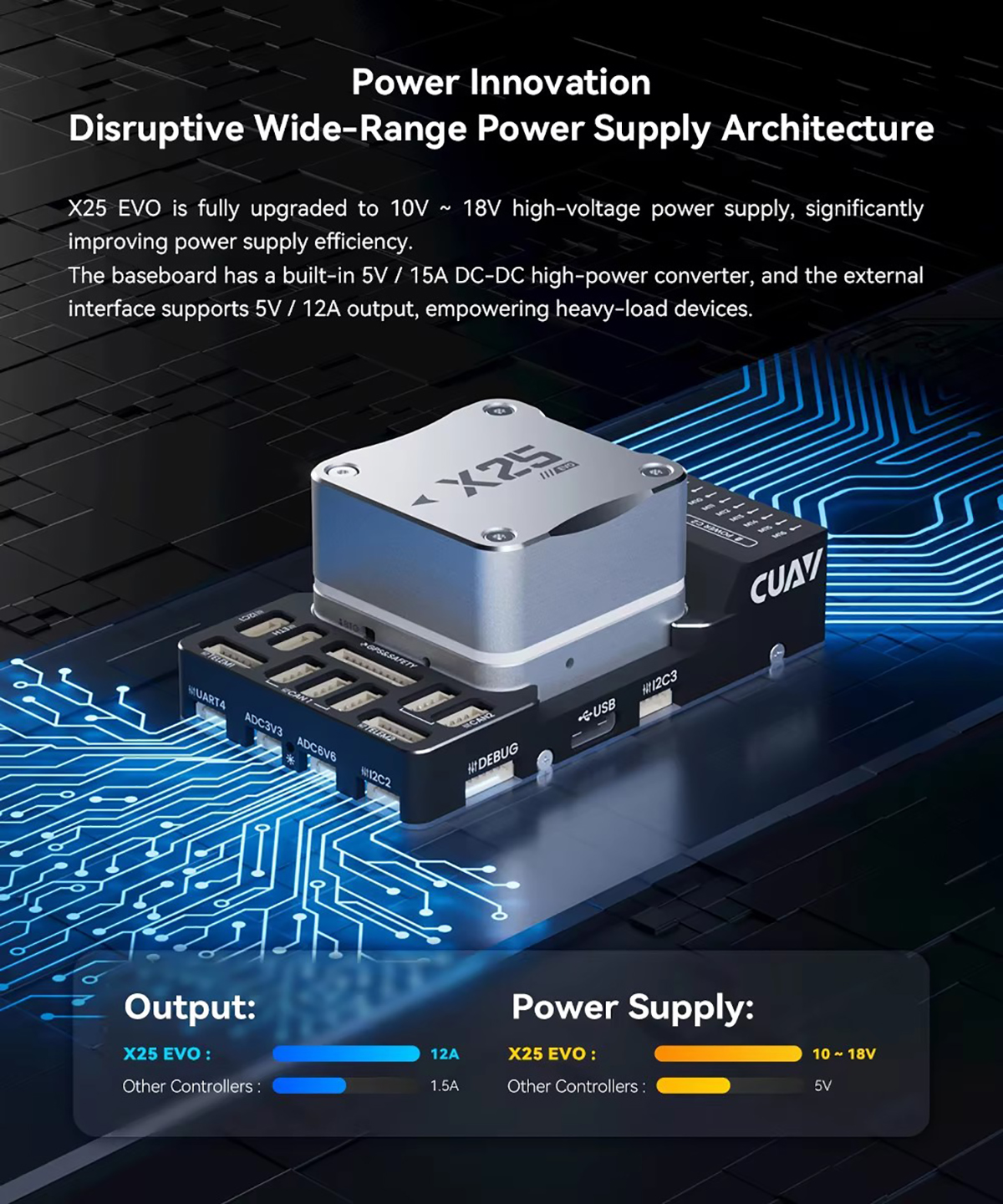

Disruptive Wide-Range Power Supply Architecture

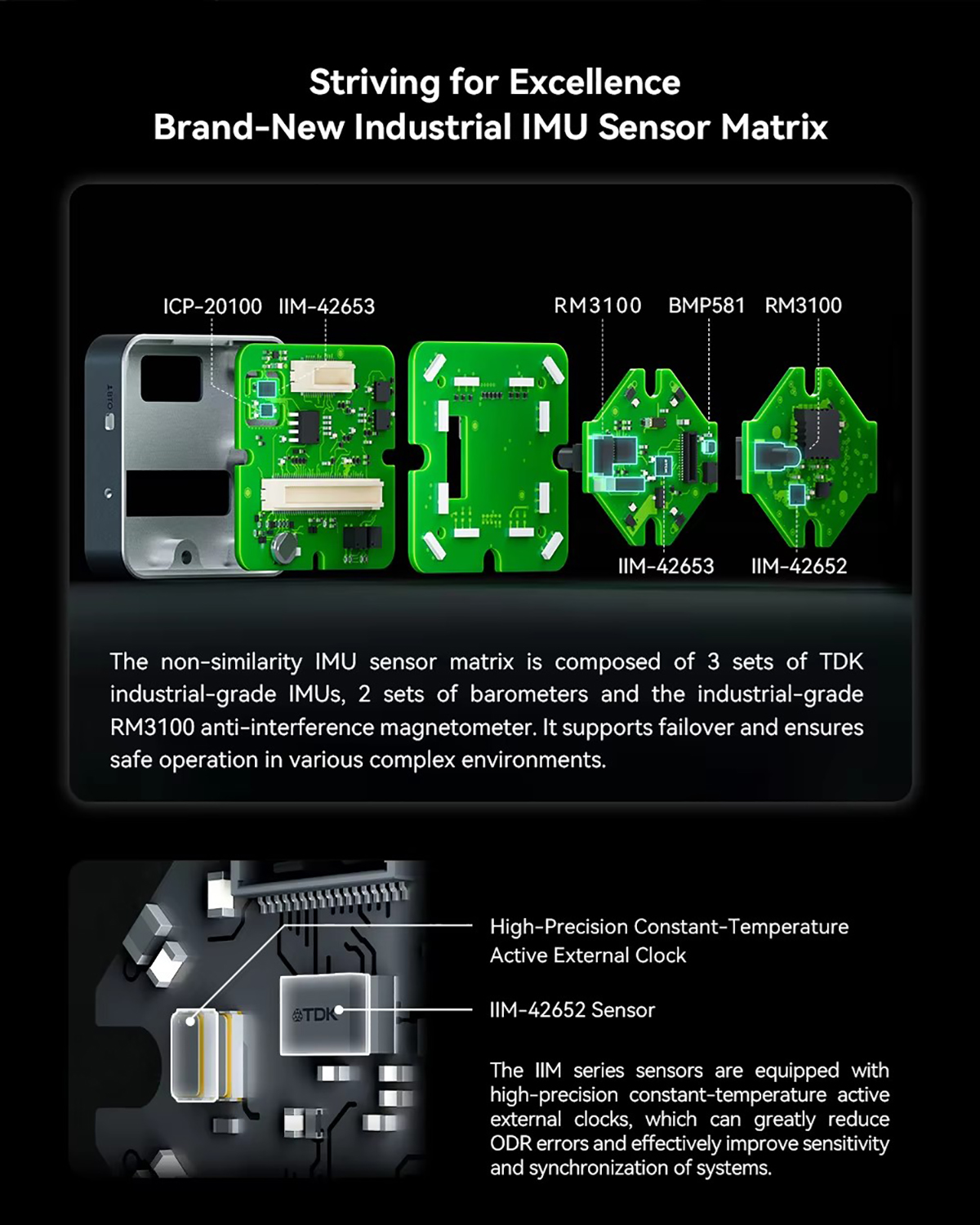

Brand-New Industrial IMU Sensor Matrix

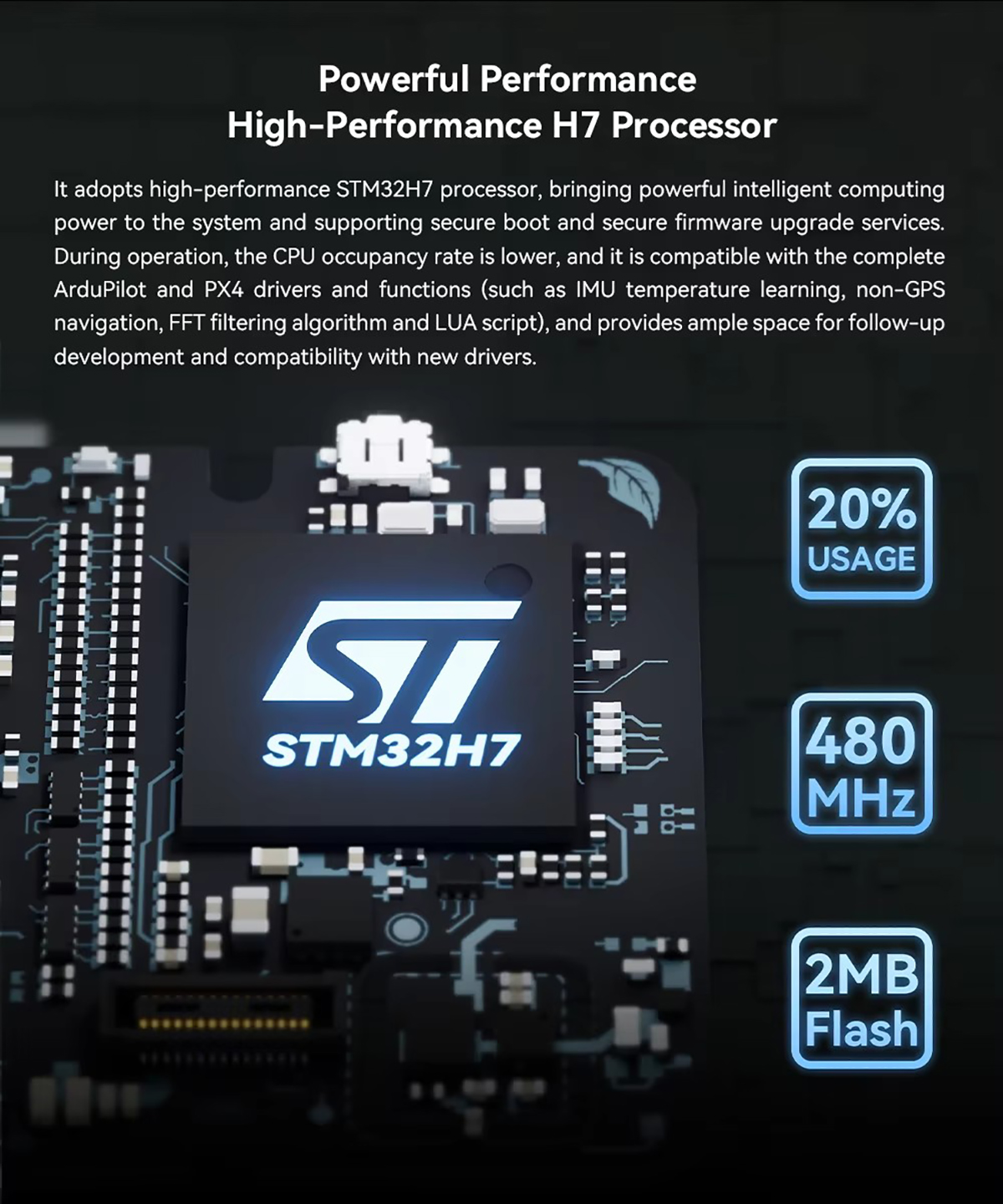

High-Performance H7 Processor

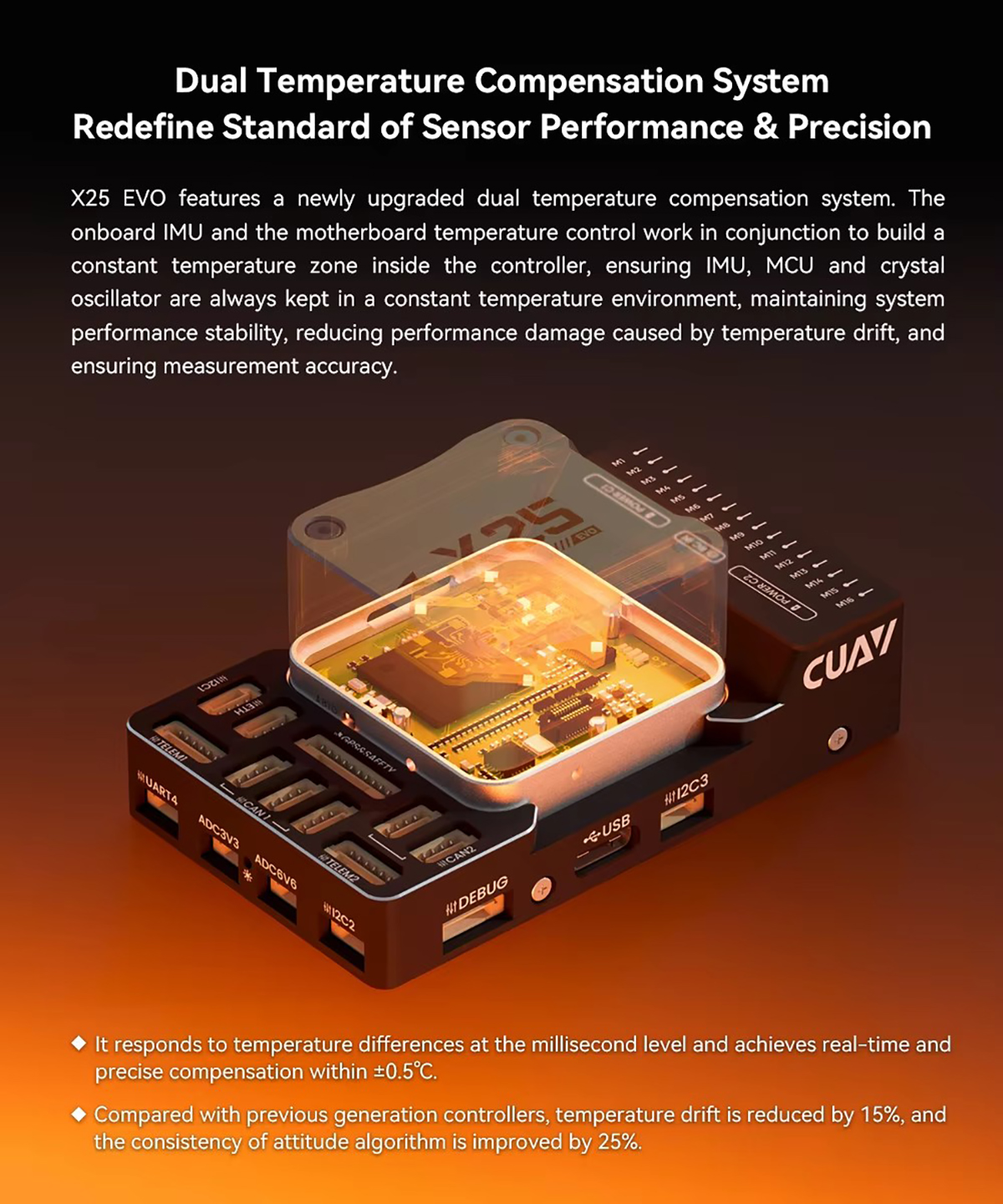

Dual Temperature compensation System

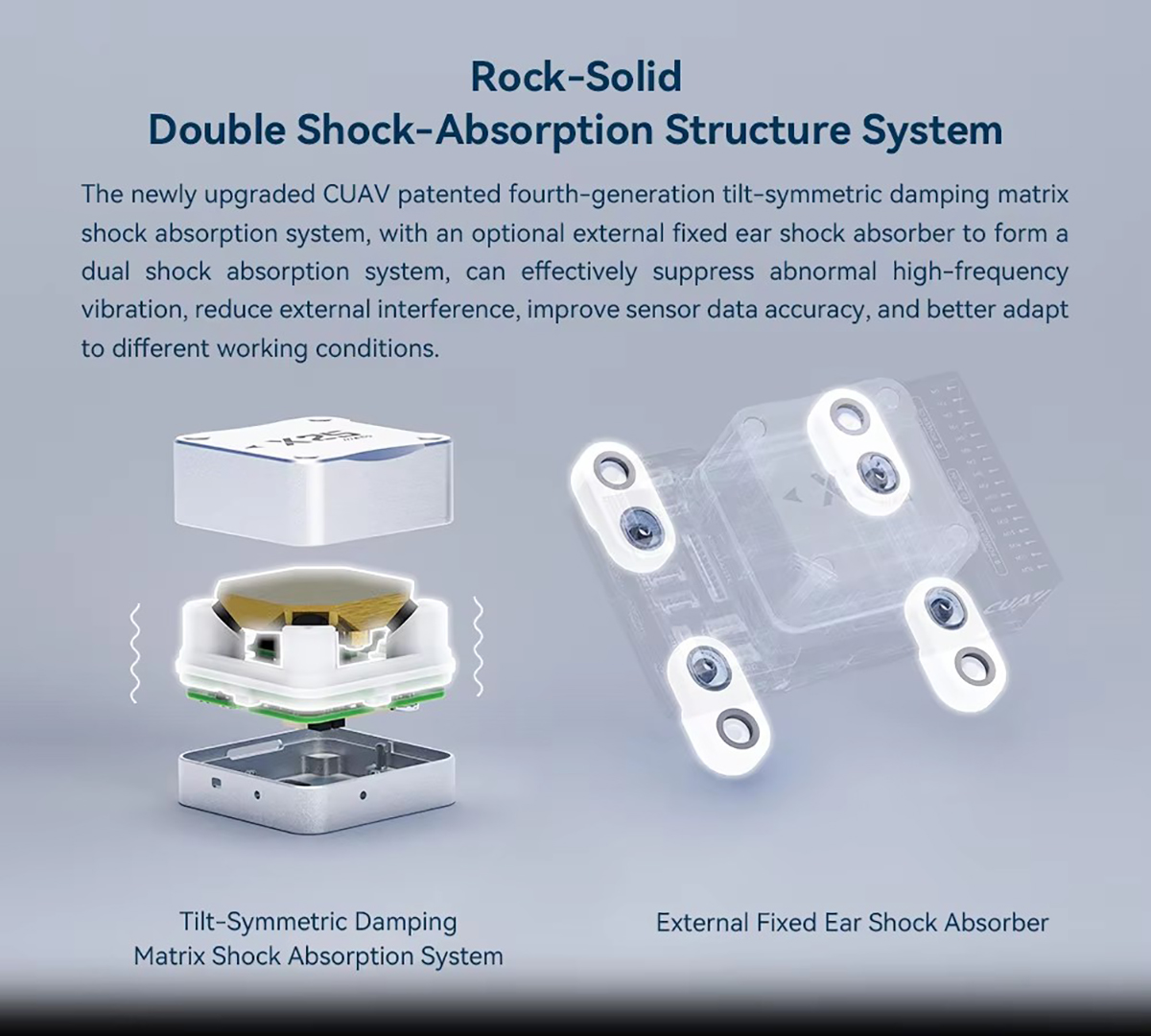

Double Shock-Absorption Structure System

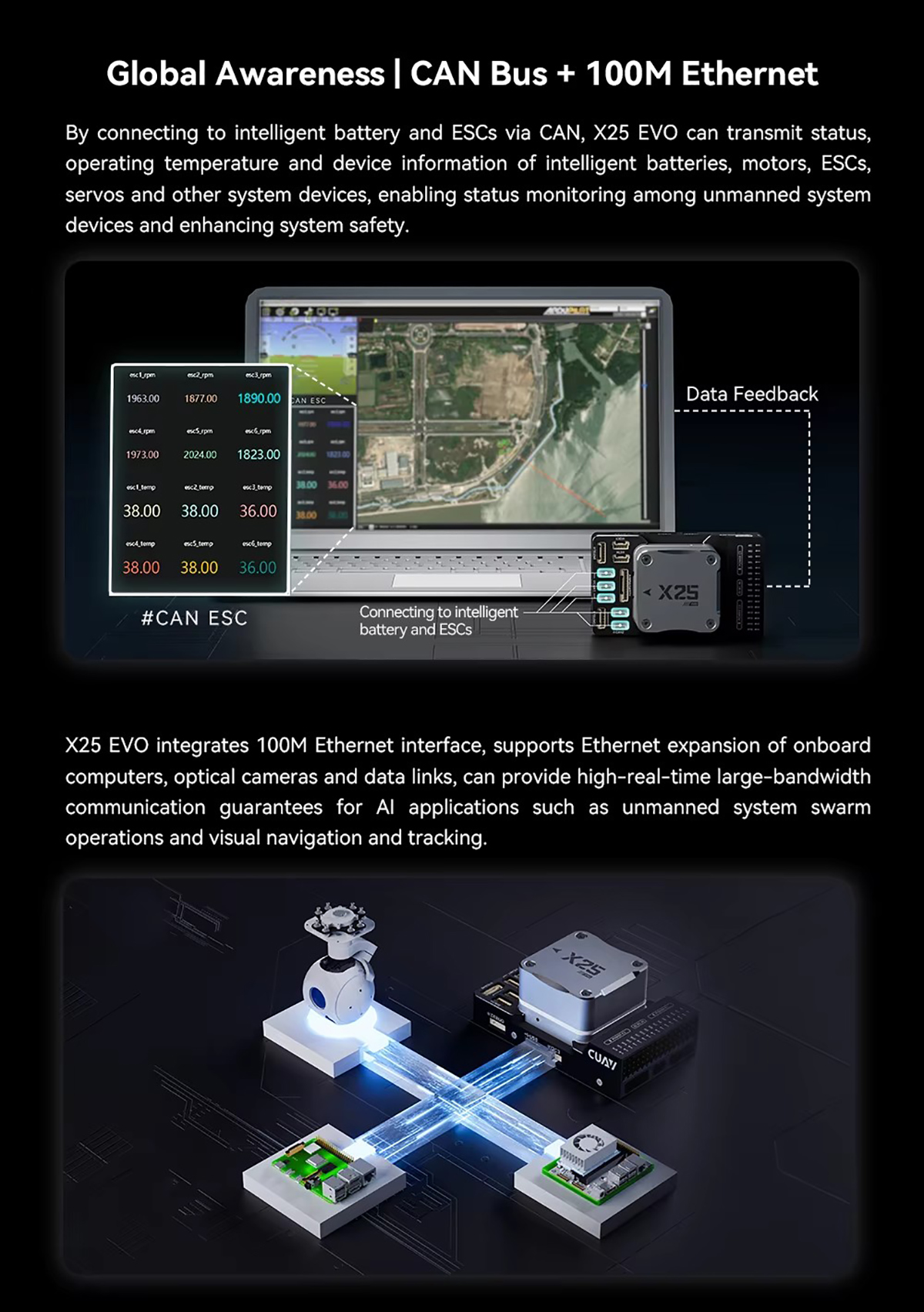

Global AwarenessI CAN Bus + 100M Ethernet
Enhanced Compatibility with High-Power
Large Unmanned Systems
Multifunctional RGB Full-Color indicator Light
Product Details
Model: X25 EVO
Processor: STM32H7 Arm° Cortex°-M7 480 MHz
Version: X25Evo

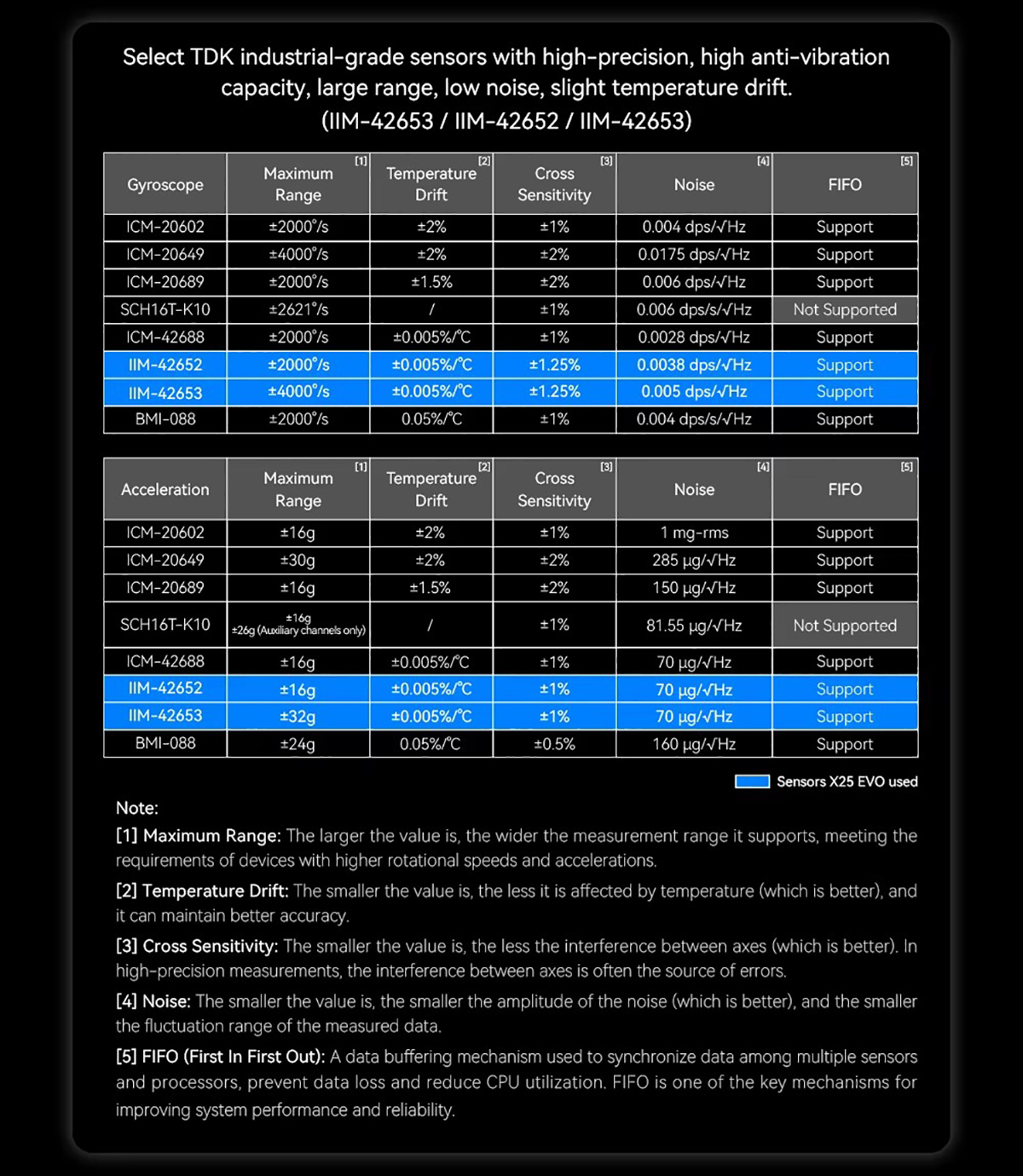

Gyro&Acce: IIM-42653×2
Gyro Sensing Range:±4OOO°/s
Accel Sensing Range: ±32g
IIM-42652
Gyro Sensing Range:±2000°/s
Accel Sensing Range: ±16g
Compass: RM3100
Barometer: TDK IPC20100/Bosch BMP581
PortType
PWM OUT: 16
Power IN (CAN): 2(5055670871-5055650801)
GPS Ports: 2
TELEM Ports: 2
UART4 Ports: 1
RC IN: 1(PPM/SBUS/DSM,etc.)
DEBUG Ports (DSU): 1
Ethernet (ETH): 1
CAN Bus: CAN1x3;CAN2x2
SPl6 Expansion: 1
ADC 3V3: 1
ADC 6V6: 1
USB Ports: 1(Type-C)
I2C Ports: 3
RSSI Ports: 1

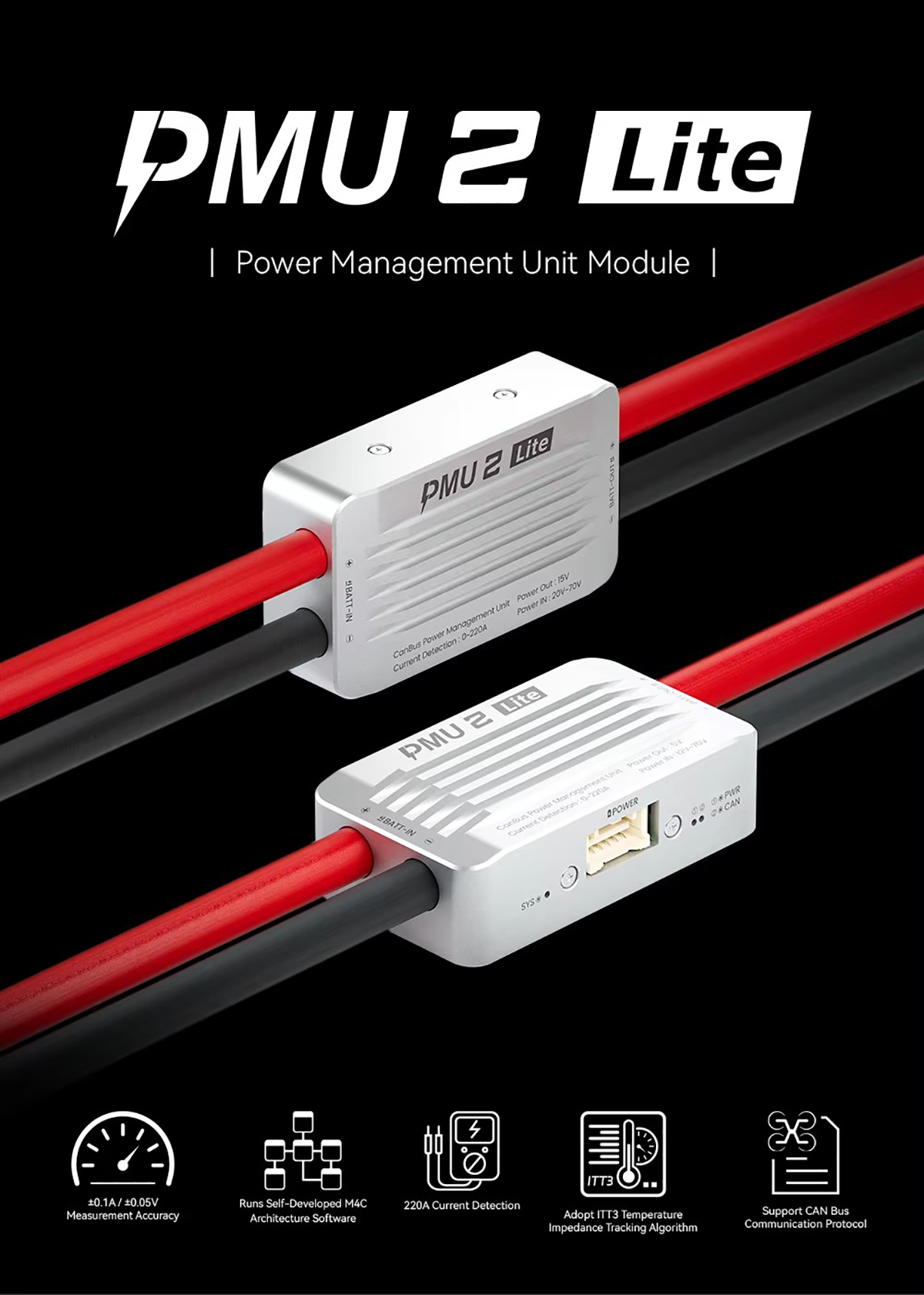

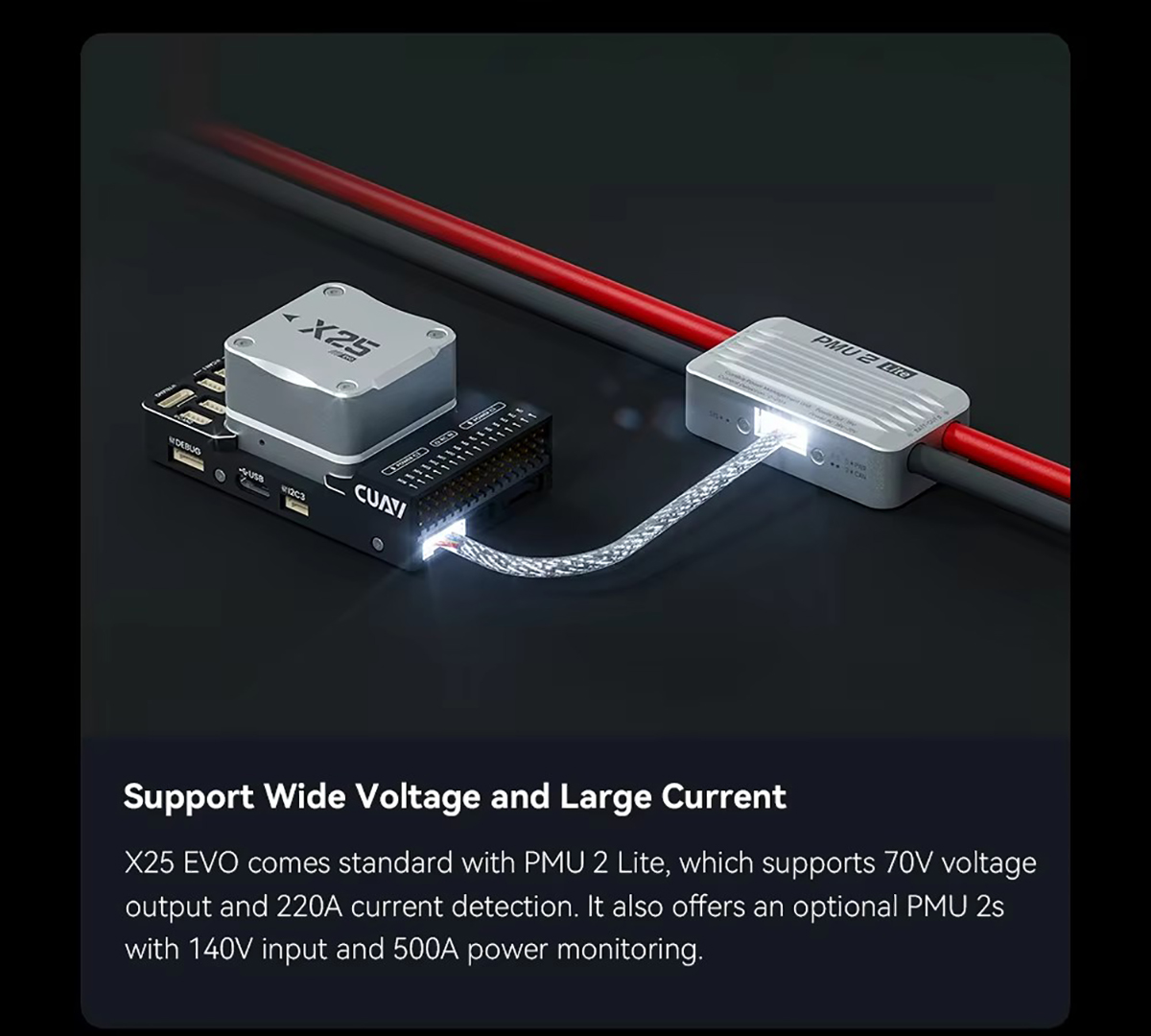

Power Module: PMU 2 Lite
Electrical and Mechanical Data
Input Voltage: USB:4.75v~5.25v
PMU 2Lite: 20V～70V
Power: 1OV~18V
Operating Temperature: -2OC～+85C
Size: 76.5×45.45×32.2mm
Weight: 110g
