Futaba CGY770R Helicopter Flight Control Gyro




$495.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features

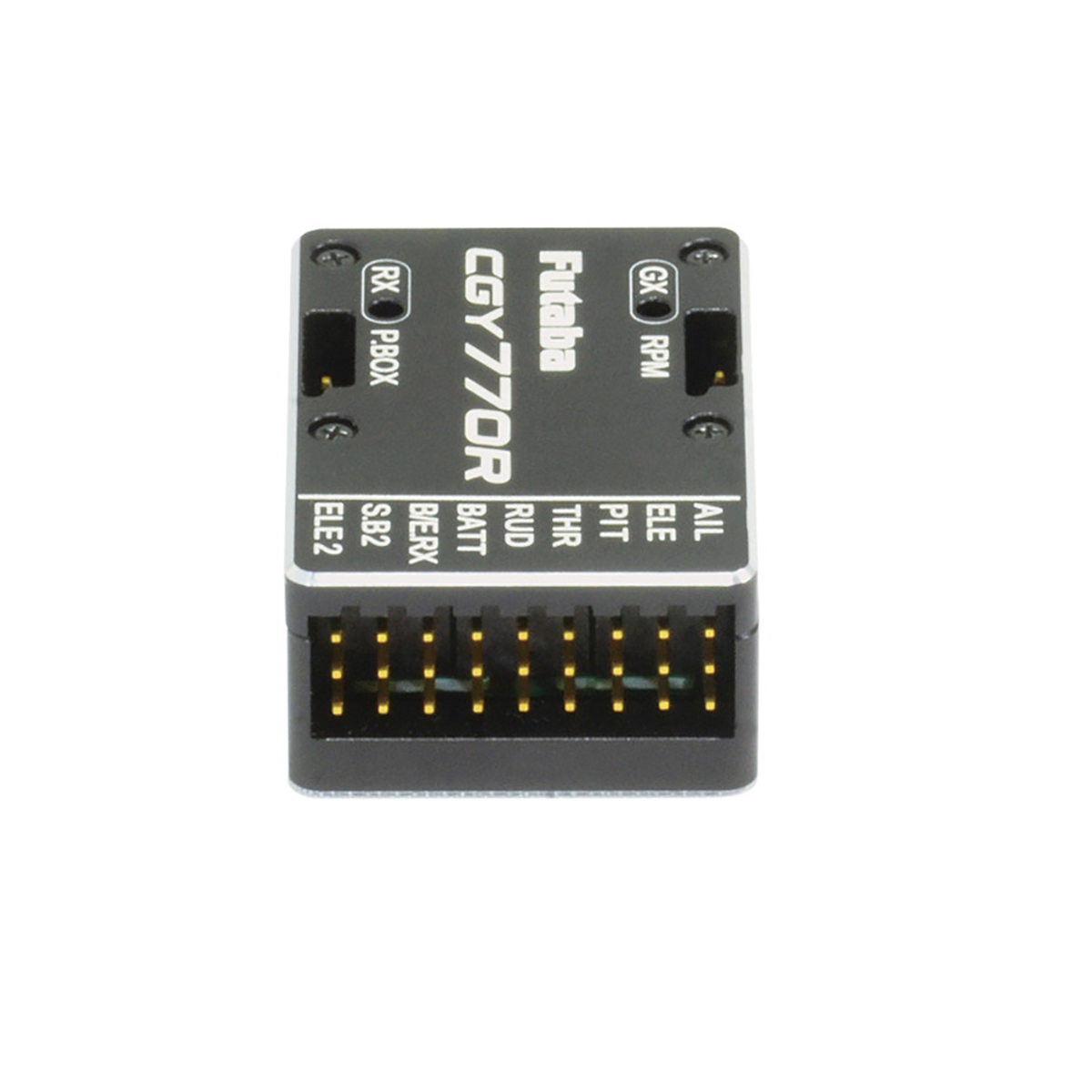

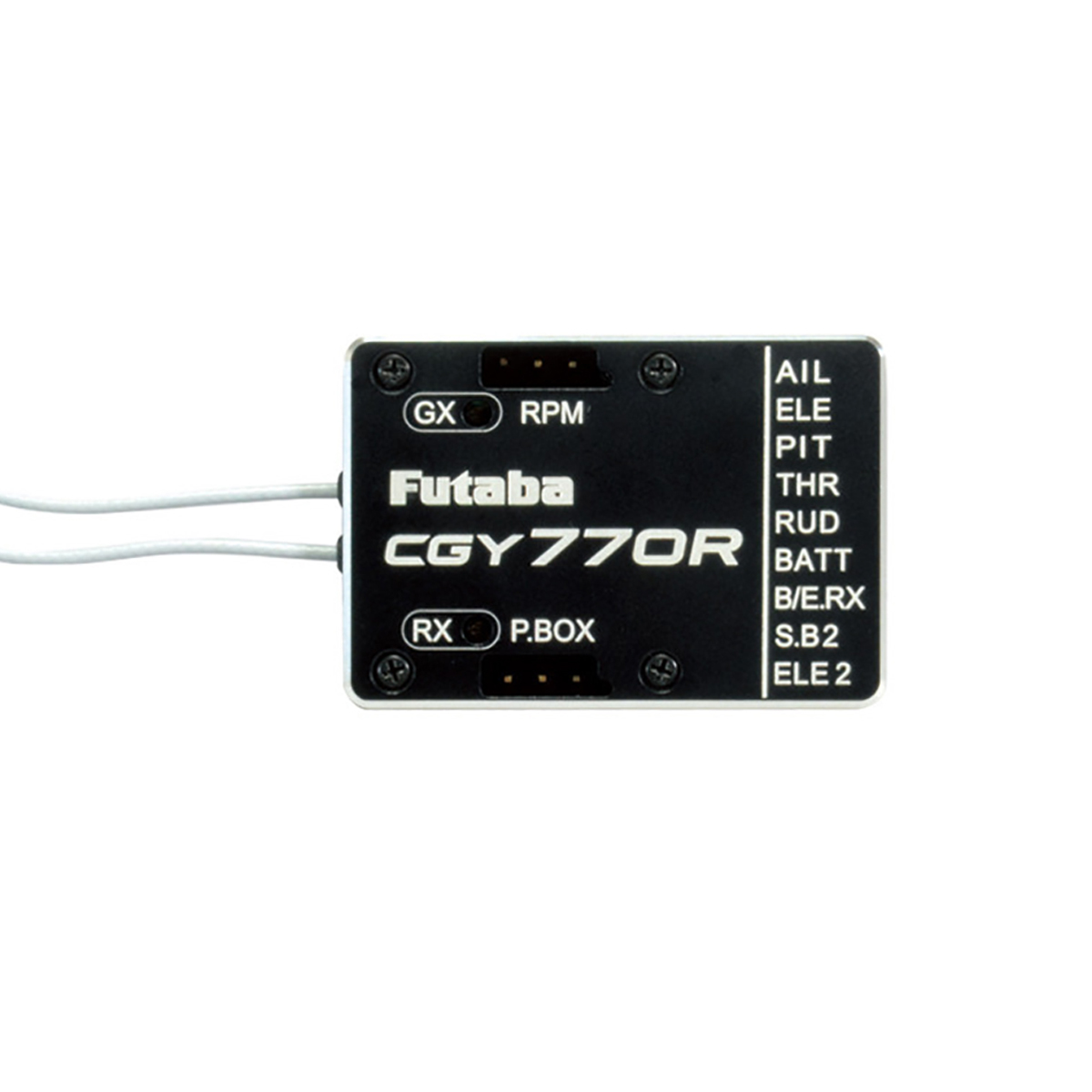

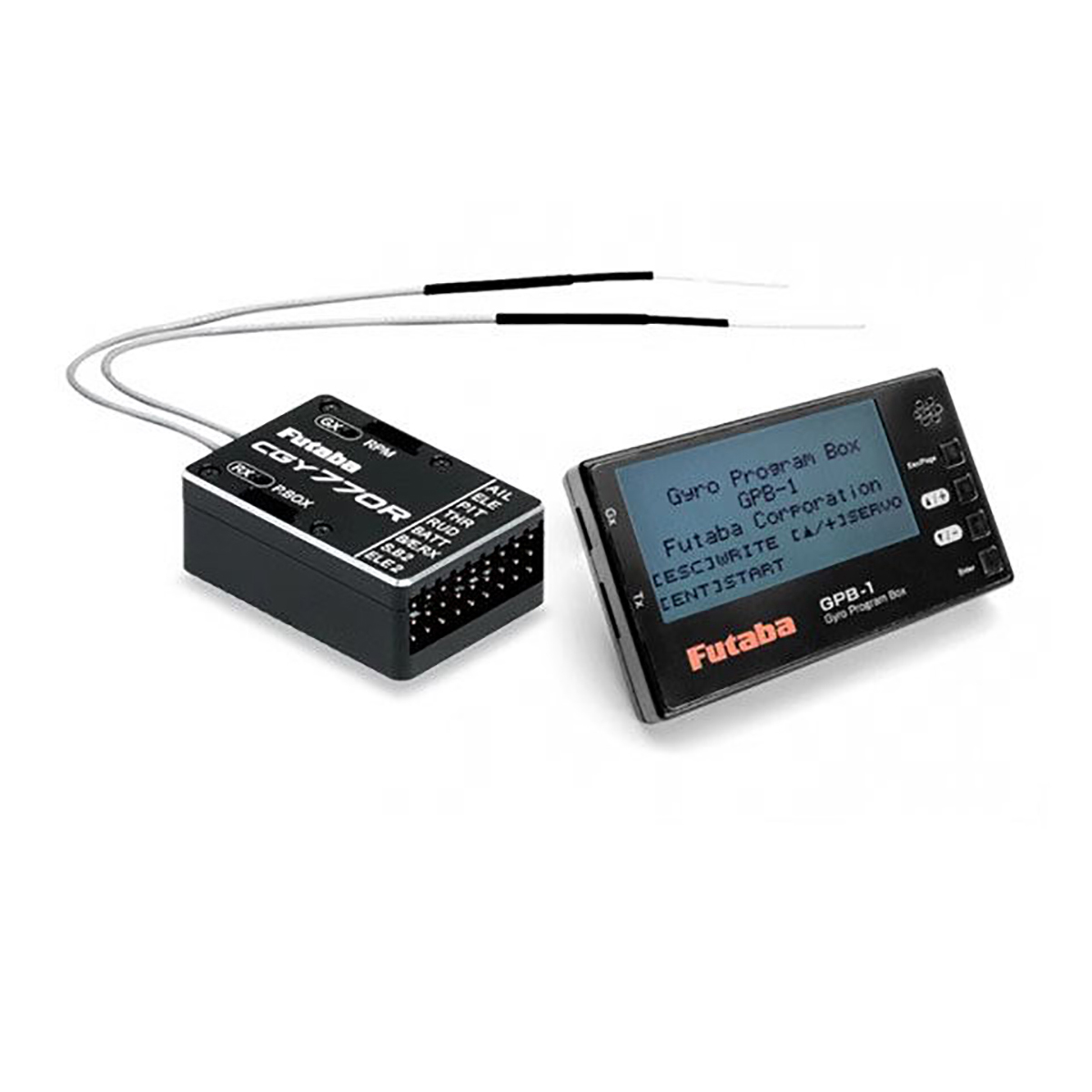

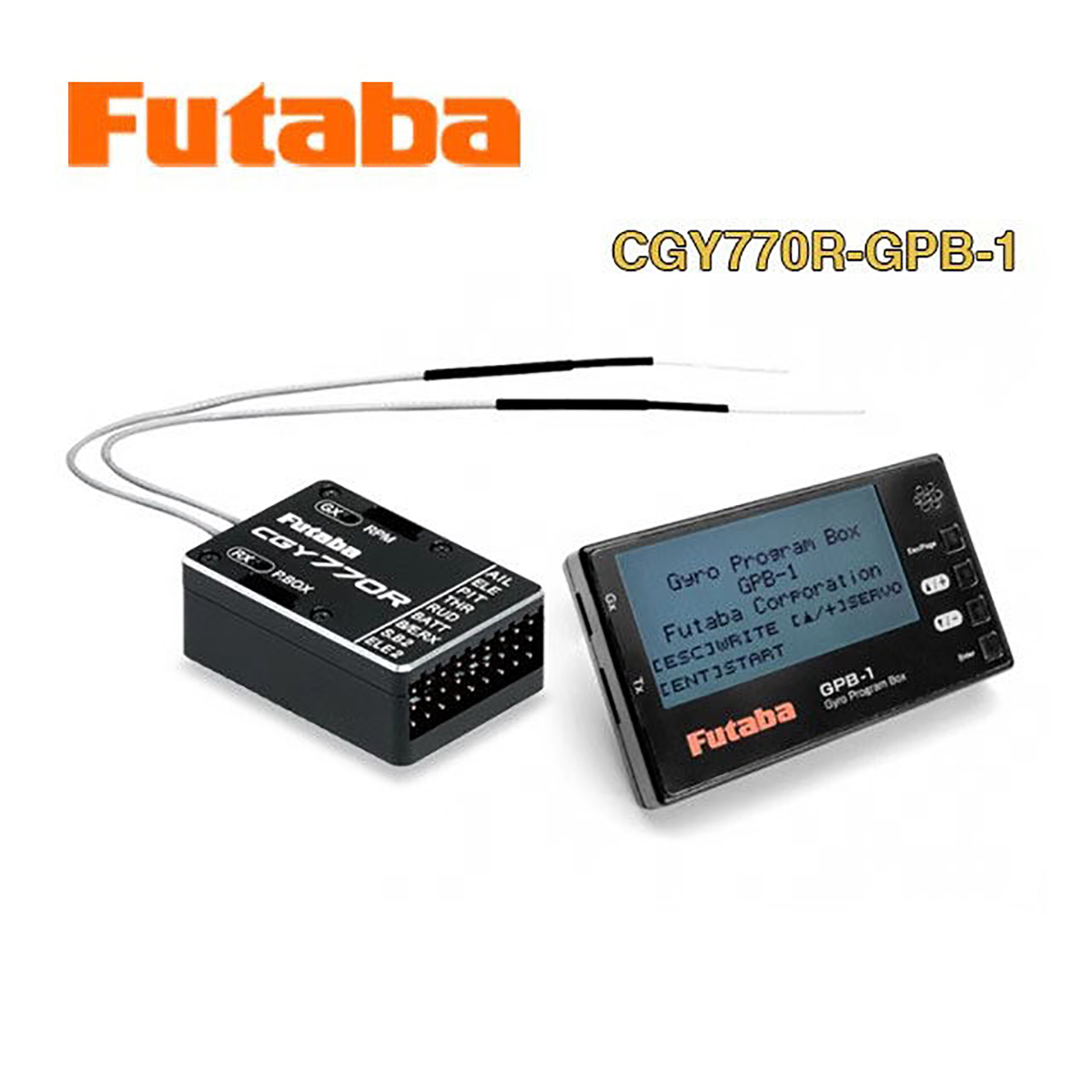

Futaba CGY770R Helicopter Flight Control Gyro with GPB-1
Programming Box for Fixed Wing Helicopter RC Drone
Product Details
Model: CGY770R
Receiving System: FASSTest-2.4GHz (18CH/12CH mode);T-FHSS-Air-2.4GHz
method;S.BUS2 input/output + PWM output (CH1-6) ordinary 2.4G antenna
Rated Voltage: DC3.7V ~ 7.4V
Maximum Voltage: DC3.5V ~ 8.4V
Special Note: When using multiple high-power servos, please confirm
that the power supply voltage does not fall below DC3.5V when the
servos are working continuously. Low voltage will cause the built-in
receiver of CGY770R to lose control! Consumption Current: 85mA
(only gyroscope consumption, without servo, without RPM sensor)
Operating Temperature Range: -10 ~ +45℃C
Operating Humidity Range: 10 ~ 90%RH (no condensation)
Dimensions: 39.2 x 27.0 x 15.0 mm
Weight: 22.3 g
Model: GPB-1 Programming Box
Operating Voltage: DC 3.5-8.4V
Size: 54 mm X 90 mm X 15.5 mm / 2.126 in X 3.543 in X 0.6102 in
Weight (RPM Sensor): 53.3 g / 1.88 oz
Futaba CGY770R Helicopter Flight Control Gyro with GPB-1 Programming Box for Fixed Wing Helicopter RC Drone
Futaba CGY770R Helicopter Flight Control Gyro with GPB-1 Programming Box for Fixed Wing Helicopter RC Drone
Futaba CGY770R Helicopter Flight Control Gyro with GPB-1 Programming Box for Fixed Wing Helicopter RC Drone
Futaba CGY770R Helicopter Flight Control Gyro with GPB-1 Programming Box for Fixed Wing Helicopter RC Drone
Futaba CGY770R Helicopter Flight Control Gyro with GPB-1 Programming Box for Fixed Wing Helicopter RC Drone
Futaba CGY770R Helicopter Flight Control Gyro with GPB-1 Programming Box for Fixed Wing Helicopter RC Drone
Futaba CGY770R Helicopter Flight Control Gyro with GPB-1 Programming Box for Fixed Wing Helicopter RC Drone
Futaba CGY770R Helicopter Flight Control Gyro with GPB-1 Programming Box for Fixed Wing Helicopter RC Drone
  • 100 Units in Stock

Be the first to write a review.  Write a Review.

The NEW Small UAS Rule (Part 107), including all pilot and operating rules, will be effective in August 2016. For more detailed information, please see:

Need more information? Read about how to fly a UAS for your work or business.
