NOVA20 20 channel near-field Multi Point LiDAR Module


$66.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
NOVA 20 Solid-State Multi-Point LiDAR Module 66.99
Near-field sensing for robot mobility.
NOVA 20 outputs a 20-channel near-field distance profile across up to 40°.
Pointed toward the ground ahead, it detects abrupt distance changes and
supplies real-time distance data for robot fall prevention indoors and outdoors.
Product Details

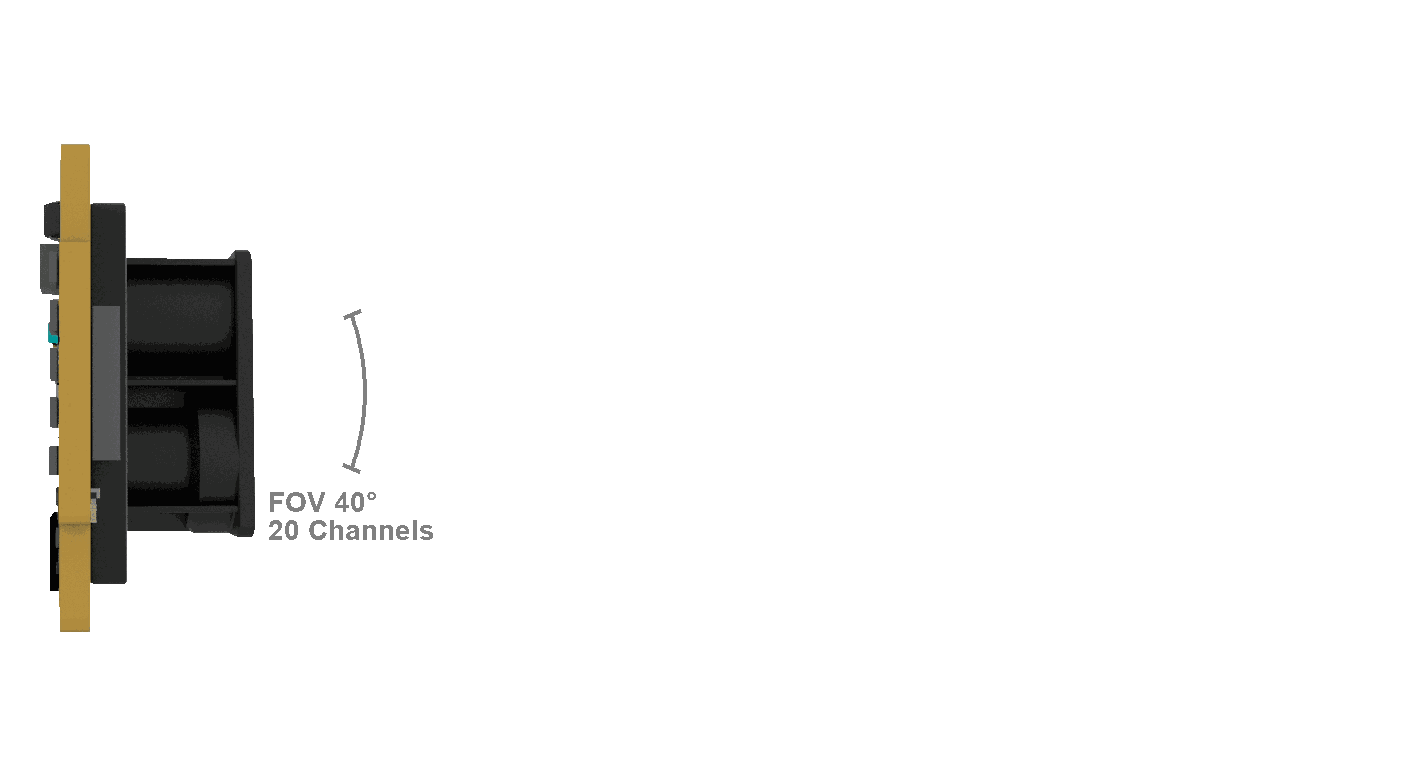

20-point detection · 40° FOV
Real-time distance profile for contour recognition.
25 × 22 × 14 mm · < 5 g
Compact size and lightweight design simplify embedded installation.
Power consumption < 1 W
Low power demand supports compact robotic platforms.
Precision ≤ 3 cm (1σ)
Consistent distance data for near-field detection.
Strong Ambient Light Immunity
1m @ 10% reflectivity at 100Klux sunlight.
Ranging points / FOV 20 channels / ≤ 40°
Measurement range 1m @ 10% reflectivity at 100Klux sunlight
Max. 3m
Precision (1σ) ≤ 3 cm
Frame rate 10 Hz
Light source 905 nm VCSEL
Interface UART
Working temp −20°C to +55°C
Size 25 × 22 × 14 mm
Weight < 5 g
Power consumption < 1 W
NOVA 20 channel near-field Multi Point LiDAR Module
NOVA 20 channel near-field Multi Point LiDAR Module
NOVA 20 channel near-field Multi Point LiDAR Module
NOVA 20 channel near-field Multi Point LiDAR Module
  • 100 Units in Stock

Be the first to write a review.  Write a Review.
