SP Pro Racing F3 6DOF Acro Flight Controller with M8N-GPS OSD


$79.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
SP Pro Racing F3 6DOF Acro Flight Controller + M8N GSP + OSD combo
Product Details
36x36mm board with 30.5mm mounting holes
*Weight : 6 grams
*STM32F303 CPU, 72Mhz inc FPU
*High-Capacity Flash (Acro and Deluxe)
*MPU6050 accelerometer/gyro
*MS5611 barometer (Deluxe only)
*HMC5883 compass (Deluxe only)
*MicroUSB socket
*2x 8pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
*8x 3pin though-holes for pin headers for ESC/Servo connections
*2x 4pin though-holes for pin headers for 2x serial ports
*1x 2pin though-holes for pin headers for battery voltage
*1x 2pin though-holes for pin headers for buzzer
*1x 4pin JST-SH socket for I2C
*1x 4pin JST-SH socket for SWD debugging

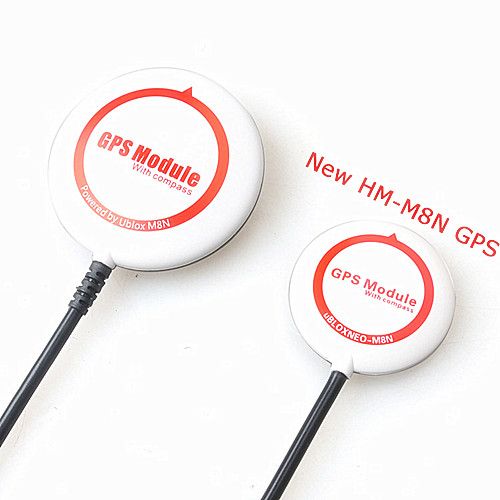

GPS Chip parameters:
Receiver type 72-channel u-blox M8 engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav: –167 dBm
Cold starts: –148 dBm
Hot starts: –156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO (NEO-M8N/Q),
Crystal (NEO-M8M)
RTC crystal Built-In
Noise figure On-chip LNA (NEO-M8M). Extra LNA for
lowest noise figure (NEO-M8N/Q)
Anti jamming Active CW detection and removal. Extra
onboard SAW band pass filter (NEO-M8N/Q)
Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time (NEO-M8N)
Operating temp. –40° C to 85° C
Storage temp. –40° C to 85° C (NEO-M8N/Q)
–40° C to 105° C (NEO-M8M)
RoHS compliant (lead-free)
Qualification according to ISO 16750
Manufactured and fully tested in ISO/TS 16949 certified production sites Uses u-blox M8 chips qualified according to AEC-Q100
Supply voltage 1.65 V to 3.6 V (NEO-M8M)
2.7 V to 3.6 V (NEO-M8N/Q)
Power consumption4 23 mA @ 3.0 V (continuous)
5 mA @ 3.0 V Power Save Mode
(1 Hz, GPS mode only)
Backup Supply 1.4 to 3.6 V
NEO-M8N-0 u-blox M8 Concurrent GNSS LCC Module, TCXO, flash, SAW, LNA,
Timepulse Configurable 0.25 Hz to 10 MHz



  • 100 Units in Stock
