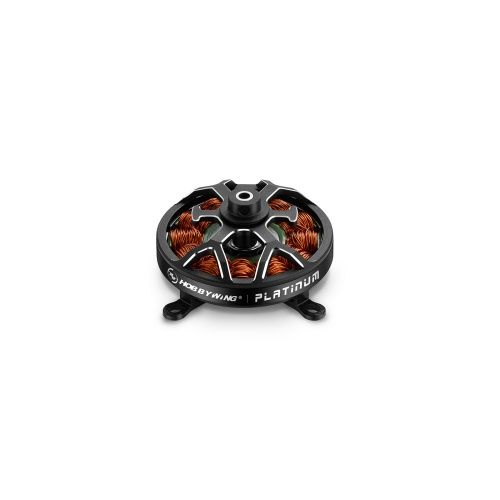

Hobbywing Platinum 2603SL 1800KV Brushless Motor



$19.00

Please Choose:



Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
With a lightweight size, the motor is perfectly suited
for 80g-300g F3P indoor aerobatic aircraft and lightweight
aircraft with extremely strict weight requirements.
When used with the Platinum 18A V5 F3P ESC, it delivers
precise, linear power output, enabling the completion
of various challenging maneuvers.
Product Details
Model：Platinum 2603SL 1800KV
Motor size：Φ30*H16.2mm
Stator size：Φ26*H2.6mm
Stator process：High standard silicon steel sheet
Enamelled wire：220℃
Isolation test：500V AC high voltage resistance test
Propeller：UP8338
Slot & pole：12N14P
Dynamic balance：≤5mg
Bearing：630ZZ
Motor axle diameter：Φ5.5×t2.4mm
Shaft material：Titanium alloy
Motor mounting dimensions：4×Φ21@D33
KV：1800
Battery(LiPo)：2S Lipo
No-load current：0.5A/8V
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）：14A/42s
Max power：114W/42s
Max thrust：526g
Resistance：204mΩ
Wire Size：Enamelled Wire Outlet
Wire length：45mm
Weight (With wire)：18g
Recommended application combinations
Motor：Platinum 2603SL 1800KV
Propeller：UP8338,TP8038
ESC：Platinum 18A V5 F3P
Battery：2S LiPo

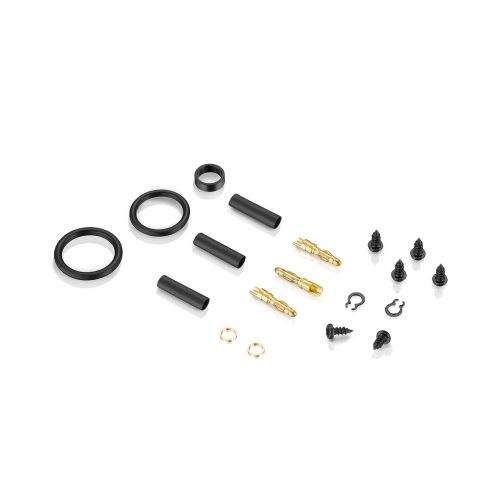

Item Packing
2
PT-2603SL-1800, PT-2603SL-1480, PT-2604SL-1500
Hobbywing Platinum 2603SL 1800KV Brushless Motor for 80g-300g F3P indoor competition machines
Hobbywing Platinum 2603SL 1800KV Brushless Motor for 80g-300g F3P indoor competition machines
Hobbywing Platinum 2603SL 1800KV Brushless Motor for 80g-300g F3P indoor competition machines
  • 100 Units in Stock
