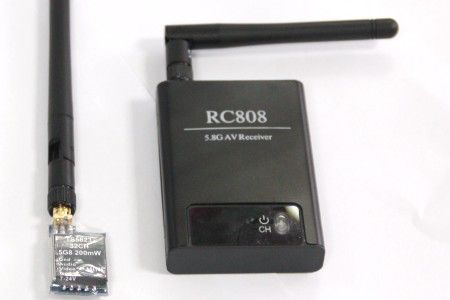

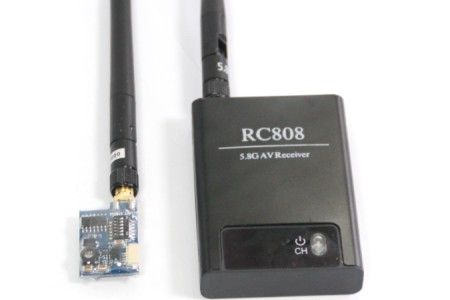

5.8G 32Ch 200mW A/V Transmitter Module (TX) TS5823+RC808 COMBO


$55.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
-Super mini, super light, specially designed for mini quadcopter/ multicopters.

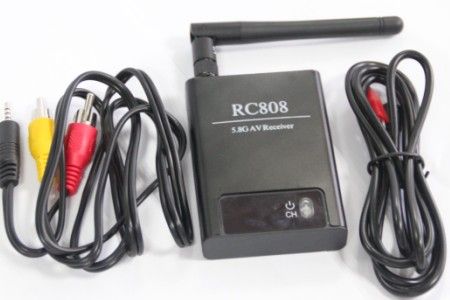

-This RC808 5.8Ghz AV Receiver features a LED digital channel display and jumperless, one press channel selection. This receiver also includes an additional AV output for video recording while using FPV goggles.
Product Details
Receiving sensitivity: < -90dBm
Receiving frequency: ISM 5.8GHz 32CH
Antenna connection: RP-SMA jack
Antenna: Gain: 2dBi
Power supply: DC8-12V 230mA
Video output level: 1Vp-p @ 75ohm
Audio output level: 1Vp-p @ 10Kohm
Audio Carrier:6.5MHz
Type Standard:NTSC/PAL
DiMENSION(LxWxH):72x54x16mm
Weight:80g

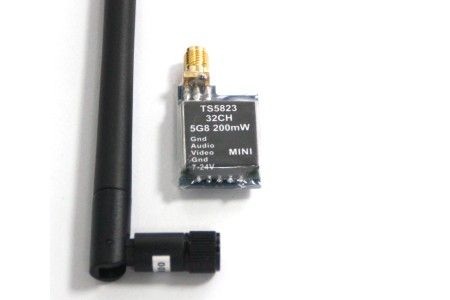

Transmitting unit weight: 7.3g (excluding antenna)
video format supported: NTSC/PAL
Working frequency: 5645-5945Mhz
Power input: 7-24V
Transmitting current: 190mA @ 12V
Video band width: 8M
Audio coding: 6.5M
Dimension: 30*20*8mm (excluding antenna)
Antenna connection: RP-SMA jack (TX module side)
Item Packing
-TS5823 X 1
-RC808 X
