Aomway 11dbi 7 Turn 5.8GHz Helical Antenna (RHCP) (SMA)


$26.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
Aomway released their new 5.8GHz, 7 Turn 11dbi tuned reflector base helical antennas.
The Aomway 7 is supported by a precision cut glass fiber frame and PCB tuned reflector. The antenna includes a flexible coaxial adapter letting you achieve virtually any installation angle of your setup. Helical antennas are designed for maximum range, having a tighter focus than an Omni or patch style antenna. Helical antennas also have a broader “tune” range and have great gain across the entire 5.8GHz band. Note: Helical antennas have a narrower focus for further range, so it's recommended to be used in a diversity system and or antenna tracker setup for the ultimate in video lock and range.
• Perfectly compatible with all 32ch of the 5.8GHz range
• All frequency channel standing wave less 1.3
• PCB board as reflection board, effectively improves antenna gain
• High self-recovery function
• Supported coil
• Flexible Adapter
Product Details
Bandwidth: 5645-5945Mhz
Gain: 11dbi
Cross polar rejection: >10dbi

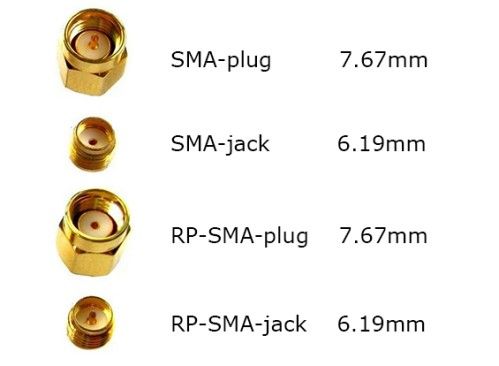

Connection: SMA
Polarity: Right Circular Polarization
Weight: 10g
Impedance: 50ohm


  • 100 Units in Stock

Be the first to write a review.  Write a Review.
