RX-LCD5806 FPV 7in 5.8GHz 32CH Diversity Receiver DVR LCD HD


$245.00

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info

Features

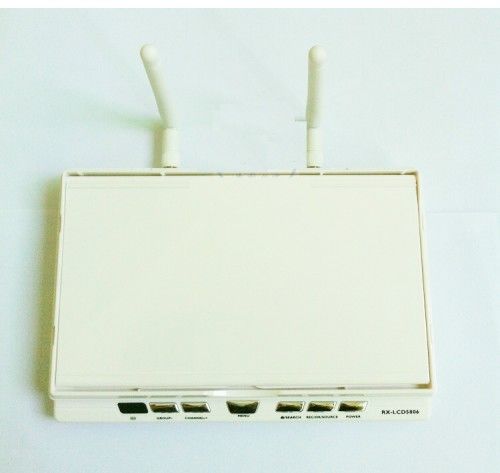

LCD5806 FPV 7'' 5.8GHz 32CH Diversity Receiver DVR LCD HD Monitor

Product Details

- LCD Screen: 7inch
- Pixel: 1024*600
- Brightness: 500cd/m2
- View angle: 140/120degree(H/V)

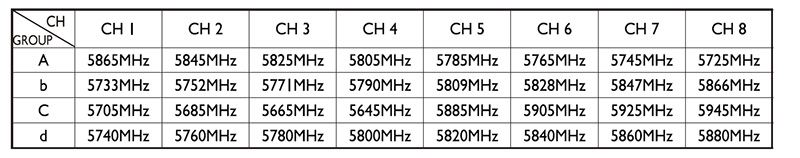

- 5.8Ghz receiver frequency: ISM5.6~5.95GHz, 32CH
- Videou output: 1V+/-0.2Vp-p/75ohm
- Video output: 0.5~2.0Vp-p/10kohm
- Video format: PAL/NTSC/AUTO
- RF receive sensitivity: <-92DBM(15DBuV)

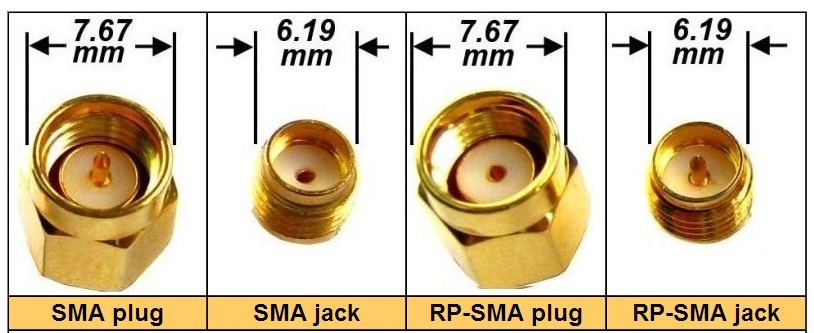

- Antenna port: SMA

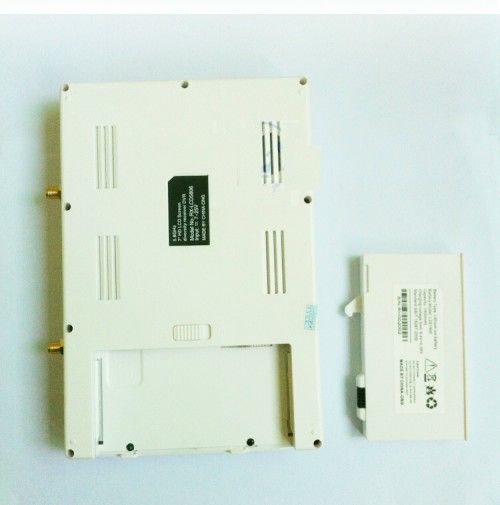

- Built-in 1900mAh/7.4V detachable lipo battery
- Work voltage: DC7-25V
- Current: <650mA/12V DC

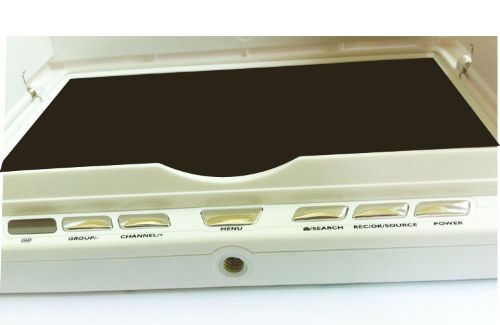

- One button auto search, easy operation
- Built-in SD card for video recording
- Video resolution: 1080P/720P
- Max.support 32GB(NOT INCLUDE)
- Video record time: 2, 5, 19mins, infinite
- USB HOST AV display, Photoviewing, software upgrade

Parameters:

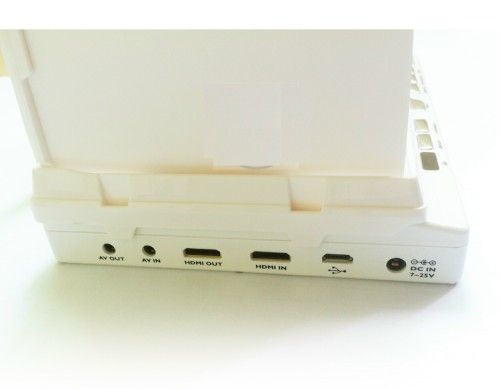

- HDMI IN: Max.1080P
- AV format: MPEG2, MPEG2_HD, MPEG4, MPEG4_SD, MPEG4_HD, H.264
- 1* AV OUT2.5(RF A OUT/RF B OUT and multi OUT)
- AV IN: 2.5*1
- HDMI C-shape *1
- Micro USB *1
- DC IN OD/ID: 3.5/1.2mm*1
- Dimension: 180*120*19.5mm
- With sunshade
- Weight: 500g
- Color: White






  • 100 Units in Stock

Be the first to write a review.  Write a Review.

The NEW Small UAS Rule (Part 107), including all pilot and operating rules, will be effective in August 2016. For more detailed information, please see:

Need more information? Read about how to fly a UAS for your work or business.


This product was added to our catalog on Tuesday 14 April, 2015.
