Features

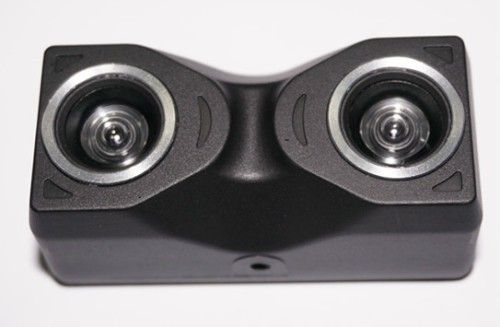

The FPV Goggles SKY02 with Built-in 5.8Ghz Diversity Receiver and diversity Antenna inputs and two independent video display modules can bring you the 3D Vision FPV experience of flying. It requests the 3D camera SKY301 and the dual transmitter SKY201. The two lens 3D camera that using the parallel shooting method will bring you strong 3D vision for close-range shooting and weaker for long-distance shooting. But there will be more vivid visual experience as a whole.
The FPV goggles can also work in normal diversity mode which is in 2D vision. And they are well compatible to SKY201 and most of other transmitters. It supports 4 Bands and total 32channels (Bands selection and Resulting Frequencies see details in Specifications
FOV | 85 degrees (Diagonal) |
F/NO | F/NO=3.0 |
Resolution | 720X576 |
Video Standard | PAL |
Video output level | 1.0Vp-p Typ. / 75ohm |
Audio output level | 2.0Vp-p Typ. / 10Kohm |
Power supply | DC 5.0V/ 0.5A |
Power Consumption | 1.6W |
Dimensions | 65(L)X30(W)X28(H)mm |
Weight | g |
Operating Temperature | 0℃～+60℃ |
Modulate | Wideband FM Modulate |
Video Standard | NTSC/PAL |
RF Output Impedance | 50 ohm |
RF Output Power | Min. | Typ. | Max. | Units |
26.0 | 27 | 28 | dBm |

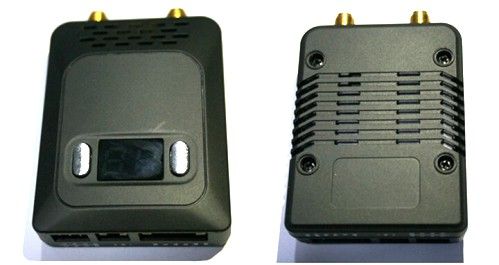

WirelessTransmitter | ISM 5.8GHz 32 Channel, Dual Transmitter. |
PresetFrequency | CH 1 | CH2 | CH3 | CH4 |
5733M / 5771M | 5752M / 5790M | 5809M / 5847M | 5828M / 5866M |
Custom Frequency | Band | CH 1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
A | 5865M | 5845M | 5825M | 5805M | 5785M | 5765M | 5745M | 5725M |
B | 5733M | 5752M | 5771M | 5790M | 5809M | 5828M | 5847M | 5866M |
E | 5705M | 5685M | 5665M | 5645M | 5885M | 5905M | 5925M | 5945M |
F | 5740M | 5760M | 5780M | 5800M | 5820M | 5840M | 5860M | 5880M |
Video input level | 1.0Vp-p Typ. / 75ohm |
Video Band Width | 8.0MHz |
Audio input level | 2.0Vp-p Typ. / 10Kohm |
Audio carrier Frequency | 6.5MHz |
Power supply | DC 7.0V～26V/ 1.5A |
Power Consumption | 12V input: 7.5W |
Dimensions | 59(L)X46(W)X16(H)mm (Not include prominent part) |
Weight | g |
Operating Temperature | 0℃～+70℃ |
| | | | | | | | | | | | | | | |
Binocular Display | FOV | 30 degrees (Diagonal) |
Resolution | 854X480(WVGA), 1,229,760 color sub-pixels |
Brightness | 350cd/㎡ |
Interpupillary distance（IPD） | 57.5-69mm Adjustable |
Wireless Receiver | ISM 5.8GHz 32 Channel, Diversity receiver. |
PresetFrequency | CH 1 | CH2 | CH3 | CH4 |
5733M / 5771M | 5752M / 5790M | 5809M / 5847M | 5828M / 5866M |
Custom Frequency | Band | CH 1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
A | 5865M | 5845M | 5825M | 5805M | 5785M | 5765M | 5745M | 5725M |
B | 5733M | 5752M | 5771M | 5790M | 5809M | 5828M | 5847M | 5866M |
E | 5705M | 5685M | 5665M | 5645M | 5885M | 5905M | 5925M | 5945M |
F | 5740M | 5760M | 5780M | 5800M | 5820M | 5840M | 5860M | 5880M |
Sensitivity | -90dBm±1dBm |
Antenna port | 2 X SMA,50ohm |
Front Camera | FOV | 60 degrees (Diagonal) |
Resolution | 640X480(VGA) |
FOCAL LENGTH | f=4.0mm |
F/NO | F/NO=2.8 |
Head Tracker | Sensor | Magnetic, Inertial and gyro |
Output | PPM 8 channel, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH |
Record | Micro SD | Support to 32GB |
Compression | MJPEG, 30fps, AVI |
Picture | JPEG |
Record rate | 6Mbps |
AV Signal | Video Standard | NTSC/PAL |
Video output level | 1.0Vp-p Typ. / 75ohm |
Audio output level | 1.0Vp-p Typ. / 10Kohm |

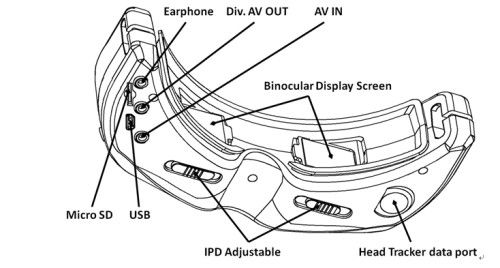

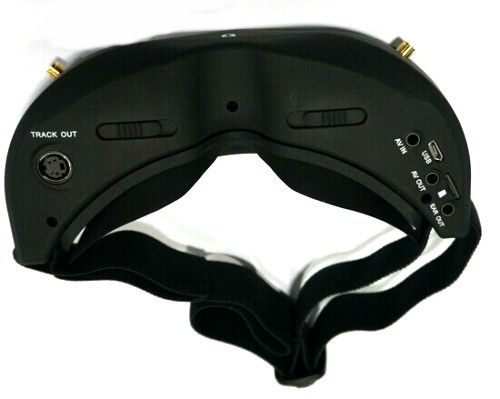

AV Port | Div. AV OUT(3.5mm4P) | Diversity Video, Audio output |
EAR OUT(3.5mm3P) | Stereo 16Ω/150mW |
AV IN(3.5mm4P) | Videoã€Audio input |
Power Supply | DC IN | DC 7～26V/ 1A |
Power Consumption | 12V input: 5.4W |
Dimensions | 168(L)X92.5(W)X41(H)mm (Not include prominent part) |
Weight | g |
Operating Temperature | 0℃～+60℃ |
| | | | | | | | | | | | | |
