Super Light 5.8G 200mW Transmitter + 600 line Camera RTF


$85.83

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Special features:
- Super mini, super light, camera & MIC included, perfect FPV solution for for mini quadcopter/ multicopters.
- Whole set net weigth: 12g only.
- 2-6S Wide input voltage range.
- Integrated Circular Polarized antenna
Product Details

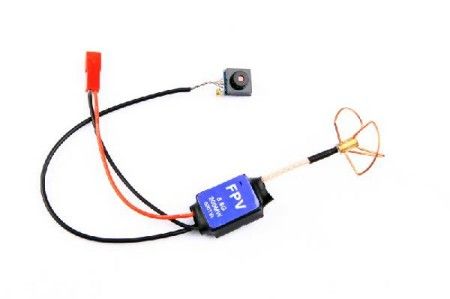

Super Light 5.8G 200mW Transmitter + 600 line Camera + Circular Antenna Combo (12g only, 2-6S input)
Whole system weight: 12g (including wire); 10g excluding wire
video format supported: NTSC/PAL
Power input: 2-6S/ 5-28V
Transmitting current: 142mA @ 12V; 72mA @ 25V
Power input connector: JST
A/V input connector: mini USB (Gopro3 compatible)
Working frequencies:
CH1:5705
CH2:5685
CH3:5665
CH4:5645
CH5:5885
CH6:5905
CH7:5925
CH8:5945

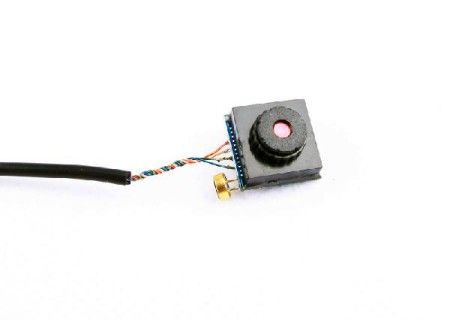

Camera specs:
Sensor: 1/4" HD Sensor
Audio: Yes
Resolution: 1280x960 500 Million pixel
Definition: 600 TV line
Power Input: 7-12V
Video resistance: 75Ω
Minimum illuminance: 0.5 LUX
Video frame number: 60 F/S, NTSC, 50 F/S PAL



  • 100 Units in Stock

Be the first to write a review.  Write a Review.

The NEW Small UAS Rule (Part 107), including all pilot and operating rules, will be effective in August 2016. For more detailed information, please see:

Need more information? Read about how to fly a UAS for your work or business.


This product was added to our catalog on Saturday 24 May, 2014.
