TS586 5.8GHz 600mW 32 Channel AV Wireless Transmission Transmitt


$46.88

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features

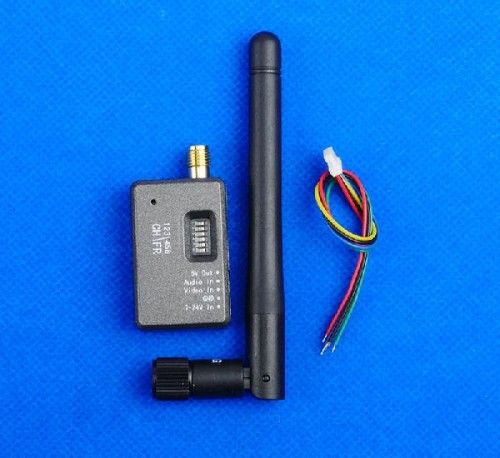

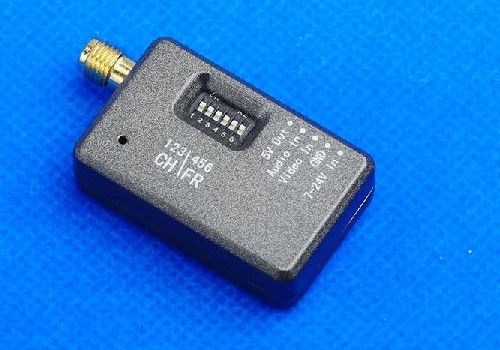

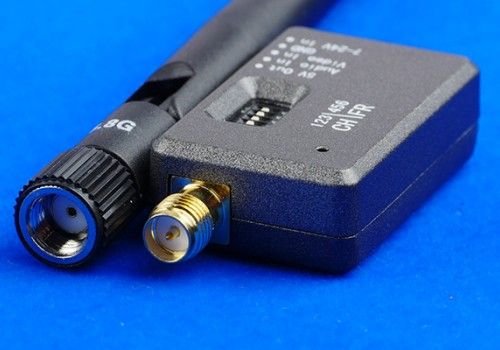

TS586 5.8GHz 600mW 32 Channel AV Wireless Transmission Transmitter TX Module Product Details
- Frequency: 5.8GHz
- Power: 600mW
- Modulate: Wideband FM Modulate
- Video format: NTSC/PAL
- Output impedance: 50ohm
- Output power: 23~24dbm
- Operating temperature: -10~+85°C
- Video band width: 0~8.0Mhz
- Audio carrier frequency: 6.5Mhz
- Video input level: 0.8~1.2Vp-p
- Video input impedance: 75ohm
- Audio input level: 0.5~2.0Vp-p
- Audio input impedance: 10Kohm
- Weight: 10g
- Antenna connector: RP-SMA
- Dimension: 36*23*11mm
TS586 5.8GHz 600mW 32 Channel AV Wireless Transmission Transmitt
TS586 5.8GHz 600mW 32 Channel AV Wireless Transmission Transmitt
TS586 5.8GHz 600mW 32 Channel AV Wireless Transmission Transmitt
  • 100 Units in Stock
