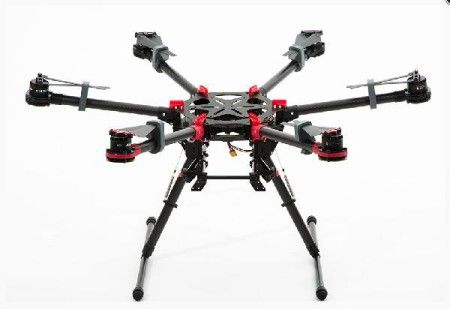

DJI Spreading Wings S900 Frame Kit


$1,499.00

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
Lightweight, Strong and Stable
Highly Portable, Easy to Carry

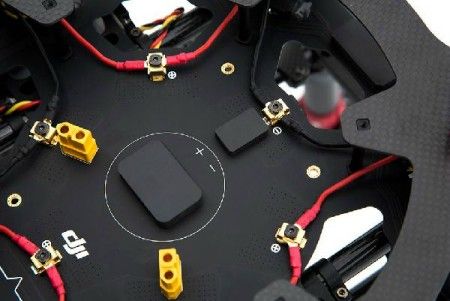

New Power Distribution System

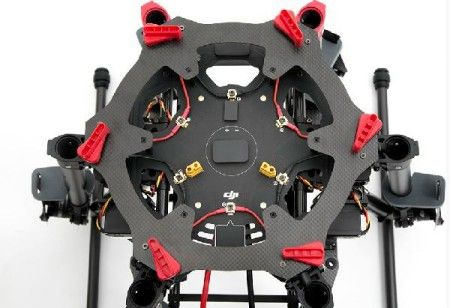

Removable Upper Center Board
Sparkproof Plug
Professional Quality
Wide Range of Shooting Angles
Retractable Landing Gear
Compatible with Zenmuse Gimbals
Reduced Vibrations, Clearer Footage
Greater Power

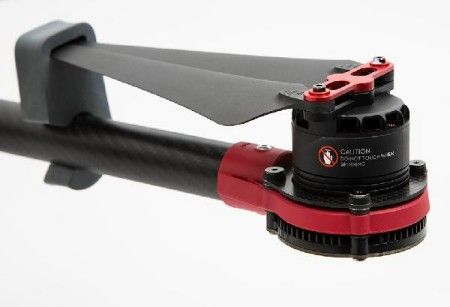

Innovative Arm Design
Product Details
Diagonal Wheelbase:900mm
Frame Arm Length:358mm
Frame Arm Weight:(Including Motor, ESC, Propeller )316g
Center Frame Diameter:272mm
Center Frame Weight (With Landing Gear Mounting Base, Servos):1185g
Landing Gear Size:460mm(Length)×450mm(Width)×360mm(Height)
MotorStator Size:41×14mm
KV:400rpm/V
Max Power:500W
Weight(With Cooling Fan)"158g
ESC Working Current:40A
Working Voltage:6S LiPo
Signal Frequency:30Hz ~ 450Hz
Drive PWM Frequency:8KHz
Weight(With Radiators):35g
Foldable Propeller (1552/1552R)
Material:High strength performance engineered plastics
Size:15×5.2inch
Weight:13g
Flight Parameters:Takeoff Weight:4.7Kg ~ 8.2Kg
Total Weight:3.3Kg
Power Battery:LiPo (6S、10000mAh~15000mAh、15C(Min))
Max Power Consumption:3000W
Hover Power Consumption:1000W (@6.8Kg Takeoff Weight)
Hover Time:18min (@12000mAh& 6.8Kg Takeoff Weight)
Working Environment Temperature:-10 °C ~ +40 °C
Item Packing
-DJI Spreading Wings S900 Kit X 1



  • 100 Units in Stock

Be the first to write a review.  Write a Review.

The NEW Small UAS Rule (Part 107), including all pilot and operating rules, will be effective in August 2016. For more detailed information, please see:

Need more information? Read about how to fly a UAS for your work or business.


This product was added to our catalog on Saturday 16 August, 2014.
