Features

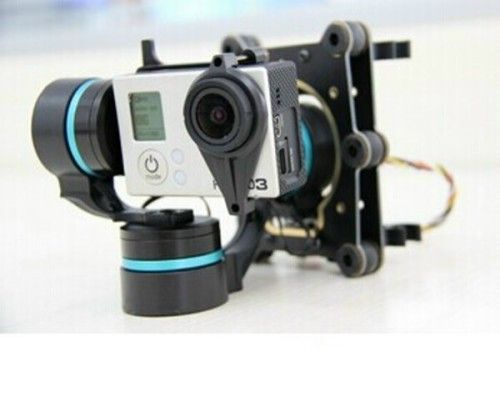

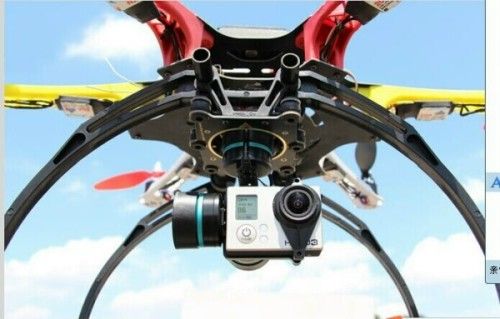

FY-G3 Ultra 3 Axis Brushless Gimbal( for aircraft ) Suitable for GoPro3,GoPro3+ or camera with similar size.Can be easily mounted in fixed wing, multirotor, helicopter for aerial photography, and can work independently only need power supply.
You can assemble the gimbal properly according to the drawing, and then install the video camera on it. The camera mount currently is only suitable for GOPRO3, for other kinds of cameras, you can design the mount by yourself or concern Feiyu Technology,and we will release more camera mount accessories in the near future. There is no need to set up and adjust the parameter. For the first use, power on the Gimbal, and then keep it static for a while, after its reset, the gimbal will be in a level position automatically. Then you can use it normally.
Function Instruction
● Heading Following Mode —— Camera Pitch and Roll angles remain constant, heading follows the nose position, pitch can be control by RC. ● Heading And Pitch Following Mode —— Camera Roll angle remains constant. Heading follow the nose position and Pitch follow the elevation of the aircreft.
● Locking Mode —— Heading, Pitch and Roll are all locked to point at one position.Heading and pitch can be control by RC.
Initialize The FY-G3Ultra Gimbal
FY-G3 Ultra Gimbal needs to be initialized when the following situation appears: 1. After power on, the angle of pitch has a little angle difference with the horizon line.
2. After power on, the angle of roll has a little angle difference with the horizon line.
3. When the heading is in the till condition, the angle of heading amends frequently in a small angle .
【 The method of initializing the FY-G3 Ultra Gimbal 】
Keep the gimbal in the still condition, then power on , it will initialize automatically.After that the gimbal can work normally.
http://v.youku.com/v_show/id_XNzQzOTE5NDA4.html
