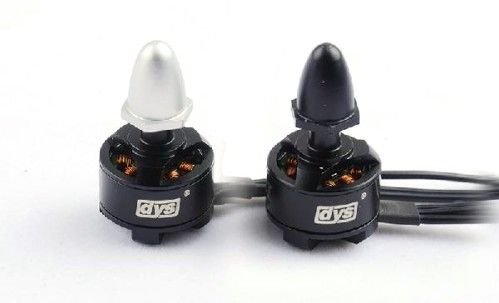

DYS BX1306 / 2300KV 2-3S Outrunner Brushless Motor CW/CCW Set (for mini multicopter)
Suit for mini size multicopters.

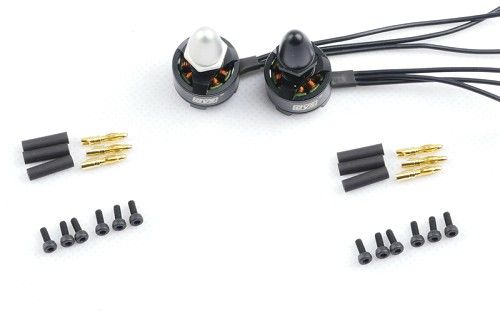

DYS BX1306 / 2300KV 2-3S Outrunner Brushless Motor CW/CCW Set (for mini multicopter)

Specifications:
KV..............................................................................................................2300
Stator Diameter....................................................................................18mm
Stator Length..........................................................................................14.1mm
Shaft Diameter.......................................................................................M5 mm
Motor Dimensions(Dia.*Len)...............................................Î¦18Ã—15.1mm
Weight (g)...................................................................................................12g
No.of Cells(Lipo).....................................................................................2-3S
Max Continuous current(A)...........................................................7.9A
Max Continuous Power(W)...........................................................58.5W

	NO LOAD		ON LOAD				LOAD TYPE
VOLTAGE	CURRENT	SPEED	CURRENT	Pull	Power	EEP	Battery/prop
V	A	rpm	A	g	W	%	Battery/prop
7.4	0.4	23500	1.4	70	10.4	6.8	LiPoÑ…2/5030
			3.3	140	24.4	5.7
			5.7	220	42.2	5.2
11.1	0.4	31400	2.1	100	23.3	4.3	LiPoÑ…3/5030
			5.5	210	61.1	3.4
			9.4	350	104.3	3.4
7.4	0.4	23500	1.3	70	9.6	7.3	LiPoÑ…2/6020
			3.7	150	27.4	5.5
			7.9	230	58.5	3.9

	NO LOAD		ON LOAD				LOAD TYPE
VOLTAGE	CURRENT	SPEED	CURRENT	Pull	Power	EEP	Battery/prop
V	A	rpm	A	g	W	%	Battery/prop
7.4	0.3	17100	0.6	40	4.4	9.0	LiPoÑ…2/5030
			1.6	80	11.8	6.8
			2.5	130	18.5	7.0
11.1	0.3	22800	0.9	70	10.0	7.0	LiPoÑ…3/5030
			2.3	150	25.5	5.9
			4.3	220	47.7	4.6
7.4	0.3	17100	0.7	45	5.2	8.7	LiPoÑ…2/6020
			1.6	80	11.8	6.8
			3.6	140	26.6	5.3
11.1	0.3	22800	1.1	70	12.2	5.7	LiPoÑ…3/6020

DYS BX1306/2300KV 2-3S Outrunner Brushless Motor
