Feetech FT265BL 12V 265kg High Torque Steel Gear


$300.00

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features

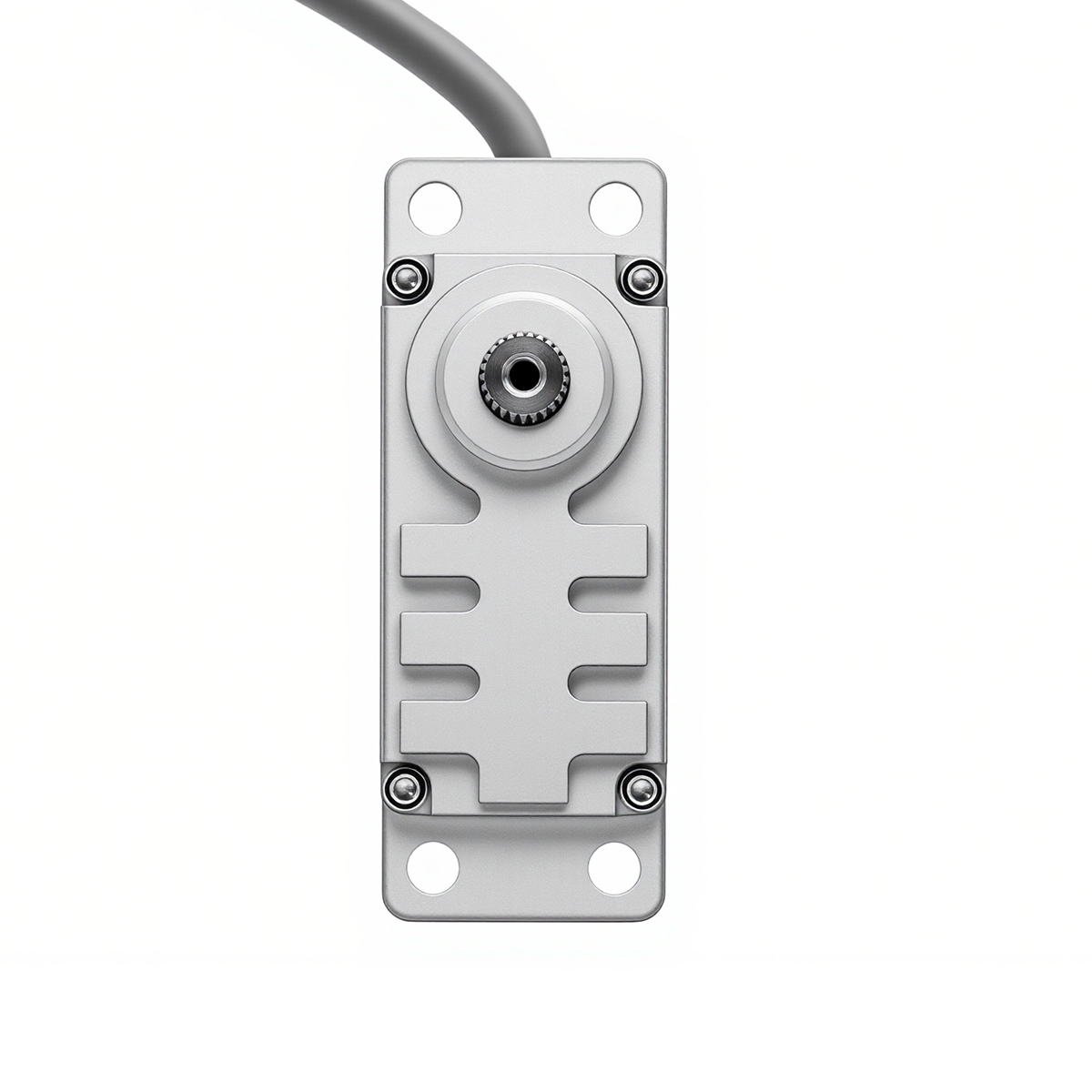

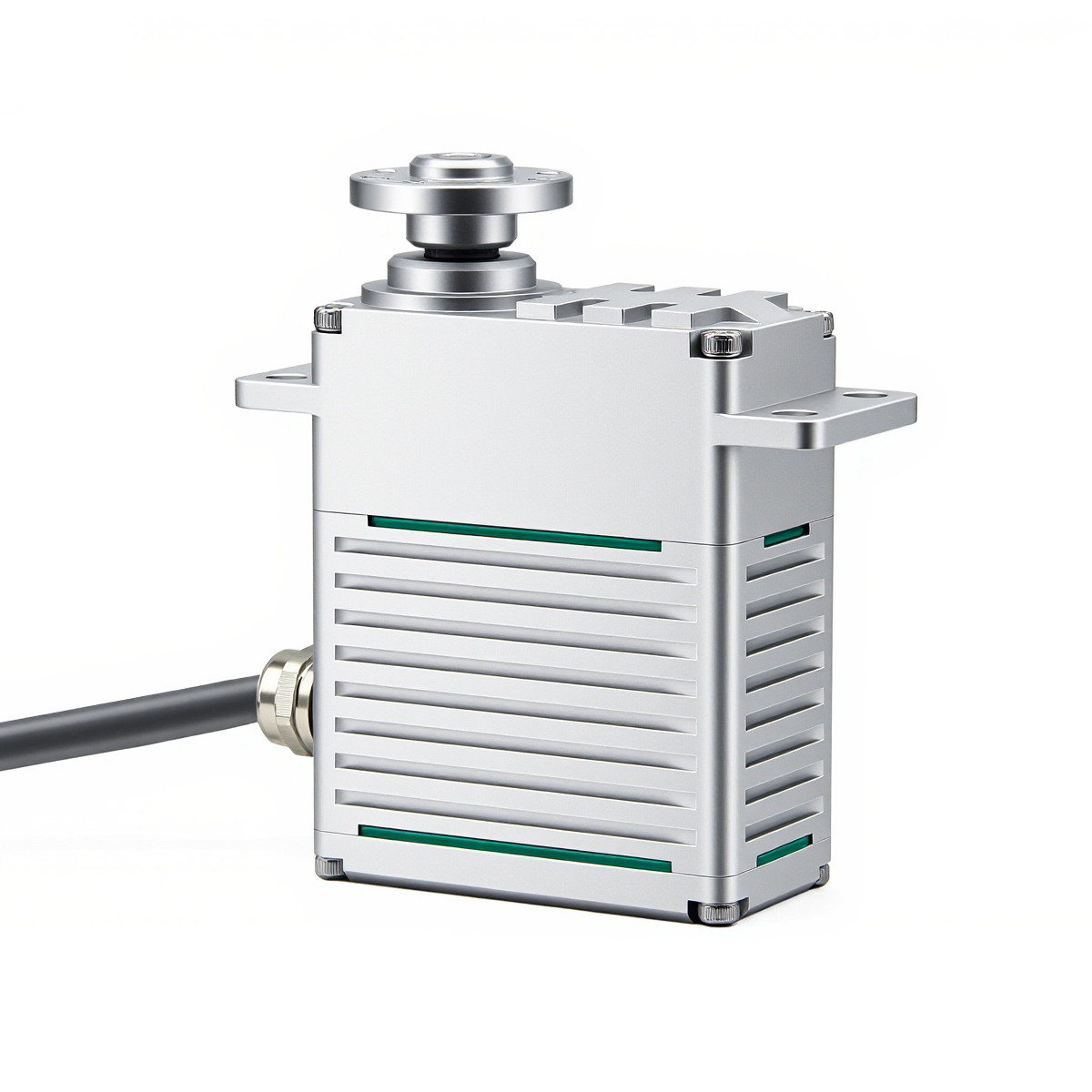

Feetech FT265BL 12V 265kg High Torque Steel Gear Aluminum
Case 180 Degree Brushless Motor Digital Servo
Product Details
Model: FT-265BL-C001
Storage Temperature Range: -40℃~80℃
Operating Temperature Range: -20℃~60℃
Size: 64*32.8*80mm
Weight: 440±5g
Gear Type: Steel
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 25T/9.8mm
Gear Ratio: 1/290
Case: Aluminum
Connector Wire: 430±10mm
Motor: Brushless Motor
Operating Voltage Range: 9V-14V
Idle Current (At Stopped): 20mA@12V
No Load Speed: 0.25sec/60°(40RPM)@12V
Running Current (At No Load): 260mA@12V
Peak Stall Torque: 265kg.cm@12V
Rated Torque: 88kg.cm@12V
Stall Current: 14.5A@24V
Command Signal: Pulse Width Modulation
Control System Type: Digital Comparator
Pulse Width Range: 500~2500μsec
Stop Position: 1500μsec
Running Degree: 180±2°(at 500→2500μsec)
Dead Band Width: ≤4μsec
Rotating Direction: Clockwise (at 1500→2000μsec)
Feetech FT265BL 12V 265kg High Torque Steel Gear Aluminum Case 180 Degree
Feetech FT265BL 12V 265kg High Torque Steel Gear Aluminum Case 180 Degree
Feetech FT265BL 12V 265kg High Torque Steel Gear Aluminum Case 180 Degree
Feetech FT265BL 12V 265kg High Torque Steel Gear Aluminum Case 180 Degree
Feetech FT265BL 12V 265kg High Torque Steel Gear Aluminum Case 180 Degree
  • 100 Units in Stock
