RI50 KV100 Frameless Motor CubeMars Low Cogging Torque Compact


$85.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features

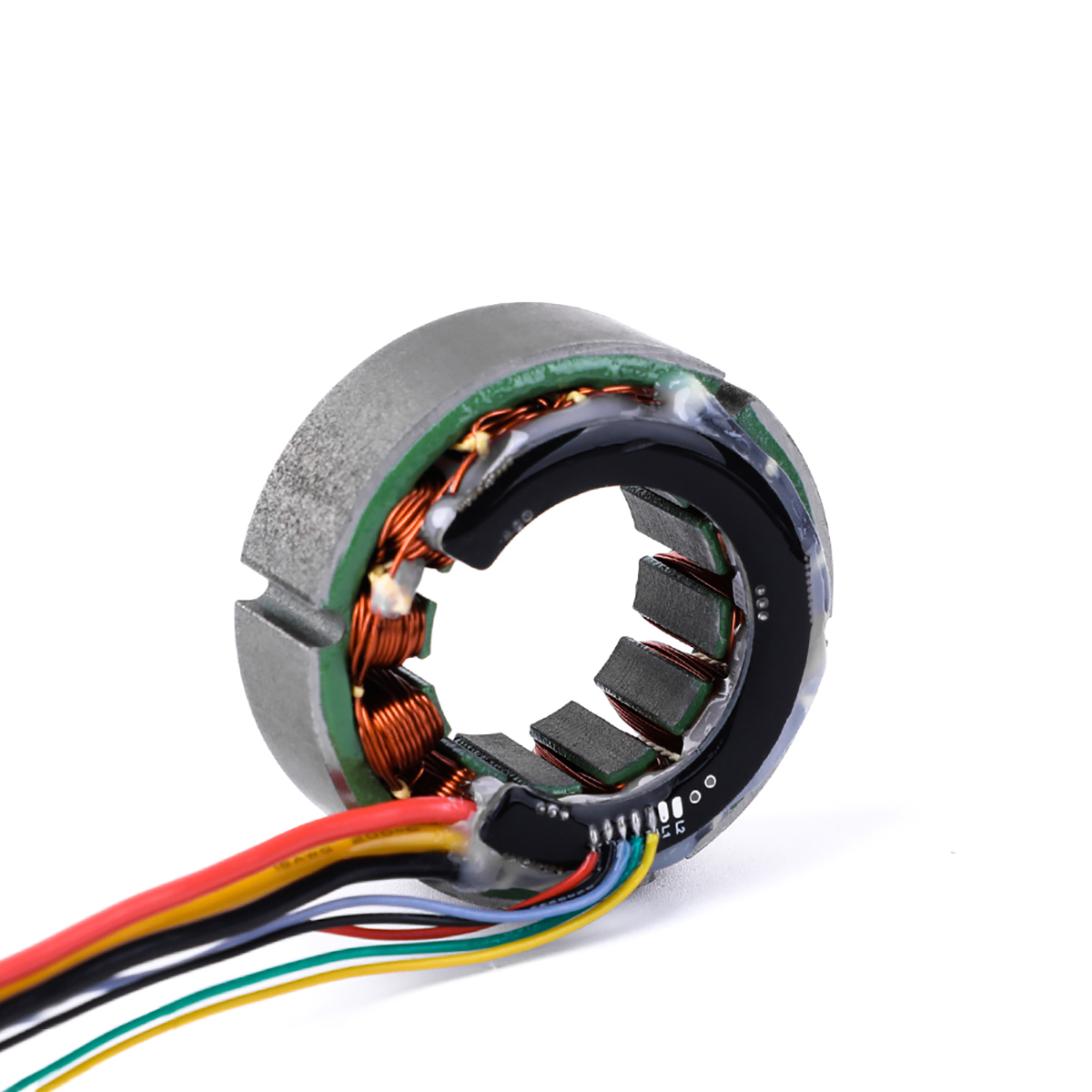

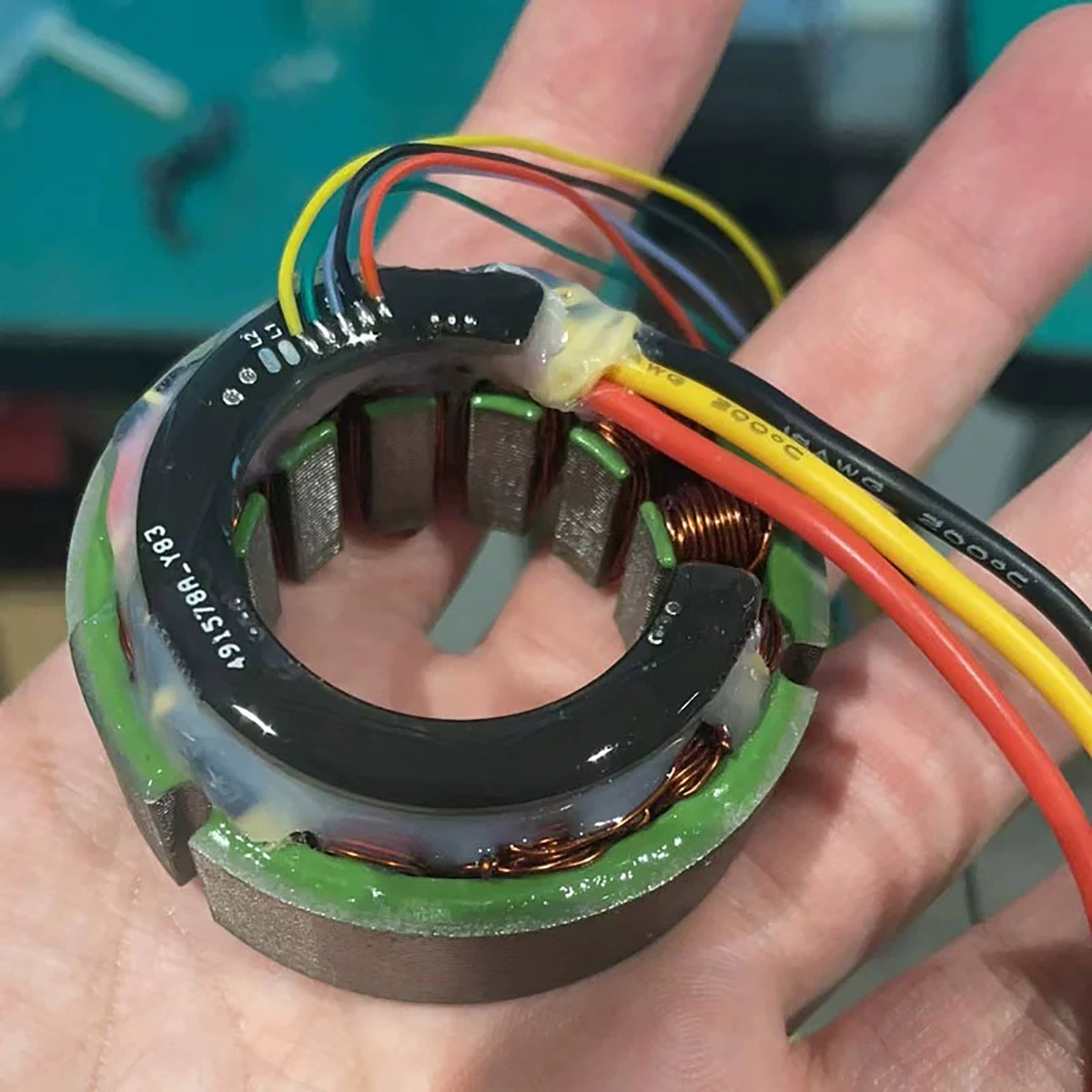

avaleble Without Hall Sensor,With Hall Sensor
CubeMars RI50 KV100 Frameless Motor Low Cogging Torque
Compact for Robotic Joints Exoskeletons

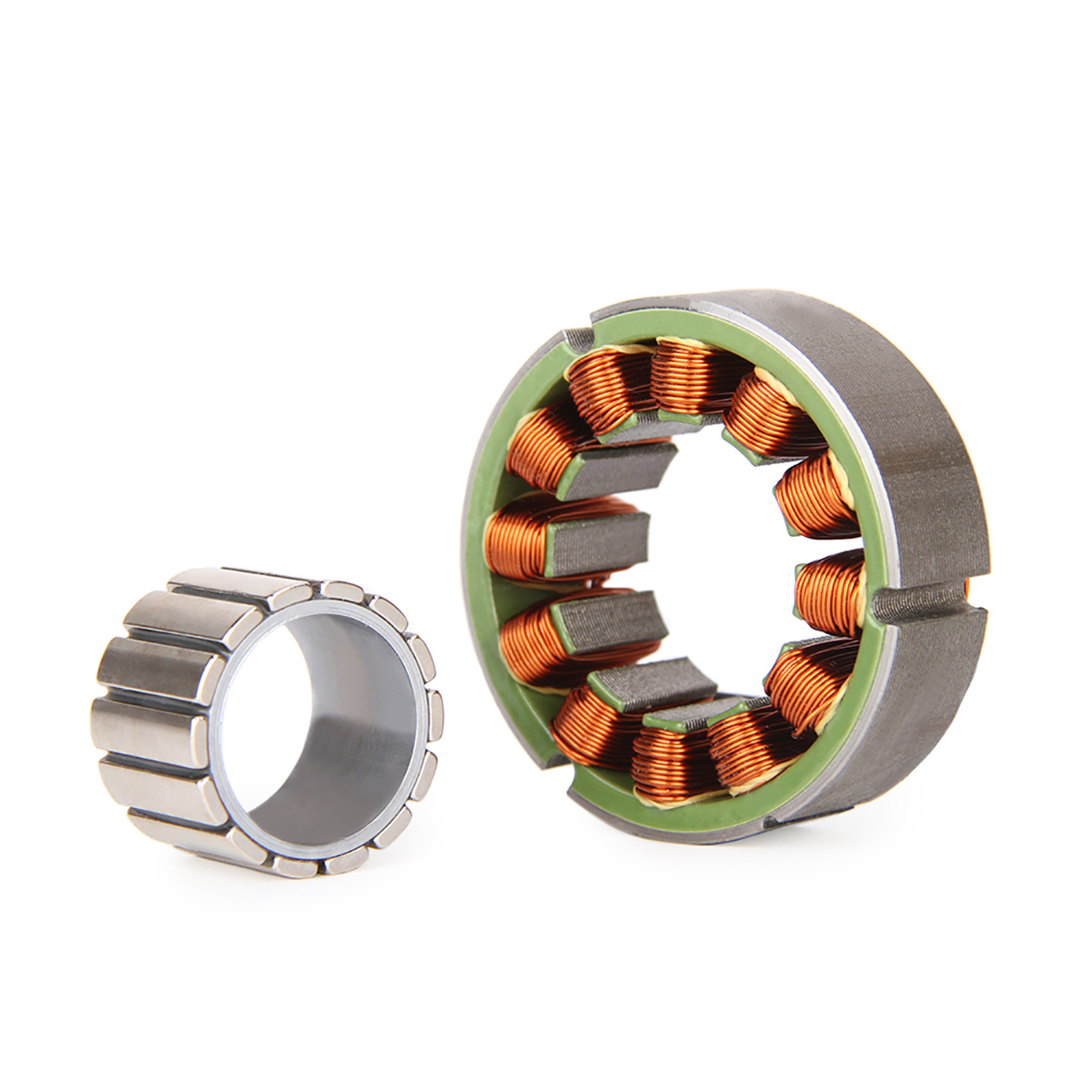

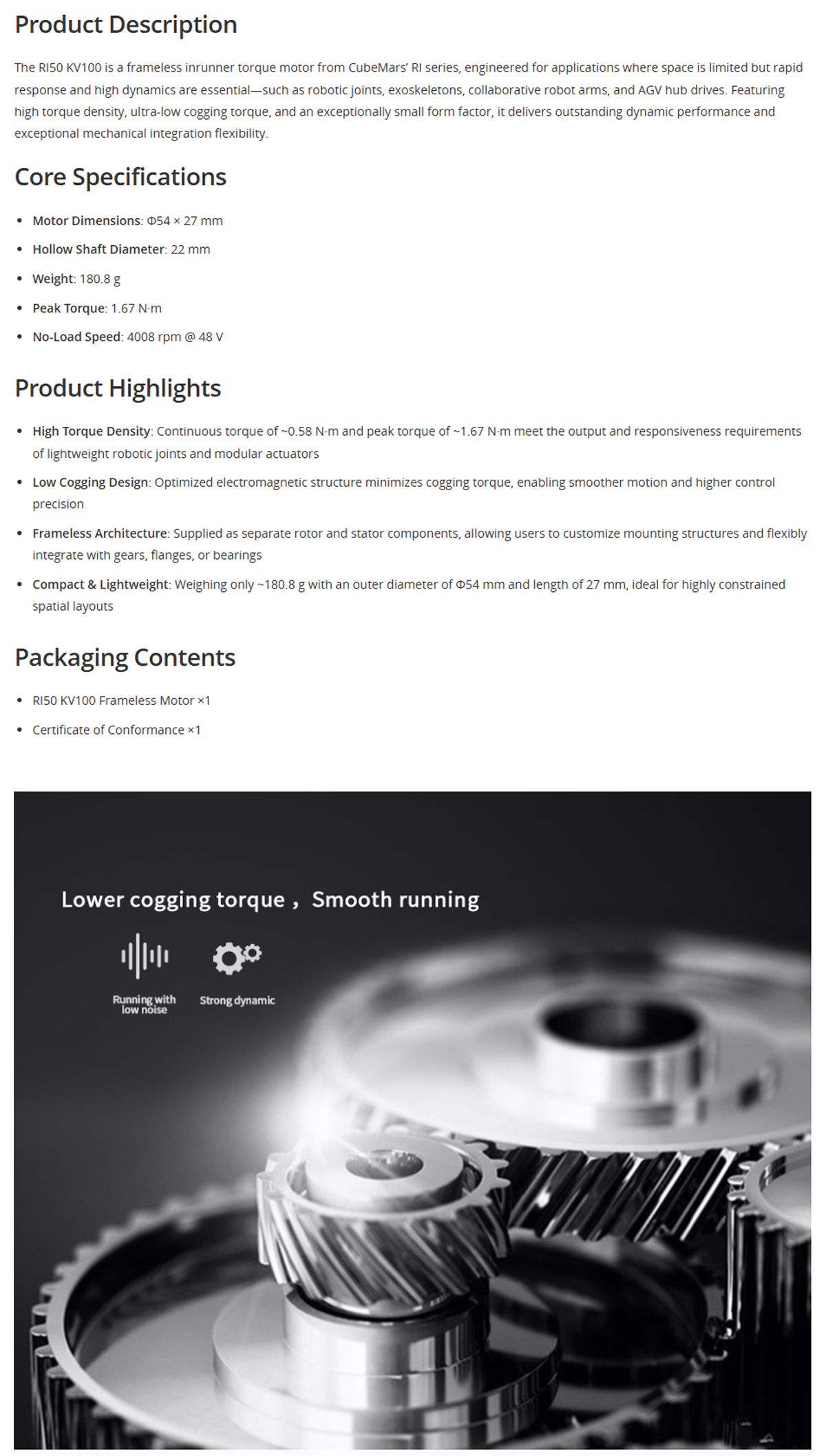

The RI50 KV100 is a frameless inrunner torque
motor from CubeMars’ RI series, engineered for
applications where space is limited but rapid
response and high dynamics are essential—such as
robotic joints, exoskeletons, collaborative robot
arms, and AGV hub drives. Featuring high torque density,
ultra-low cogging torque, and an exceptionally small
form factor, it delivers outstanding dynamic performance
and exceptional mechanical integration flexibility.

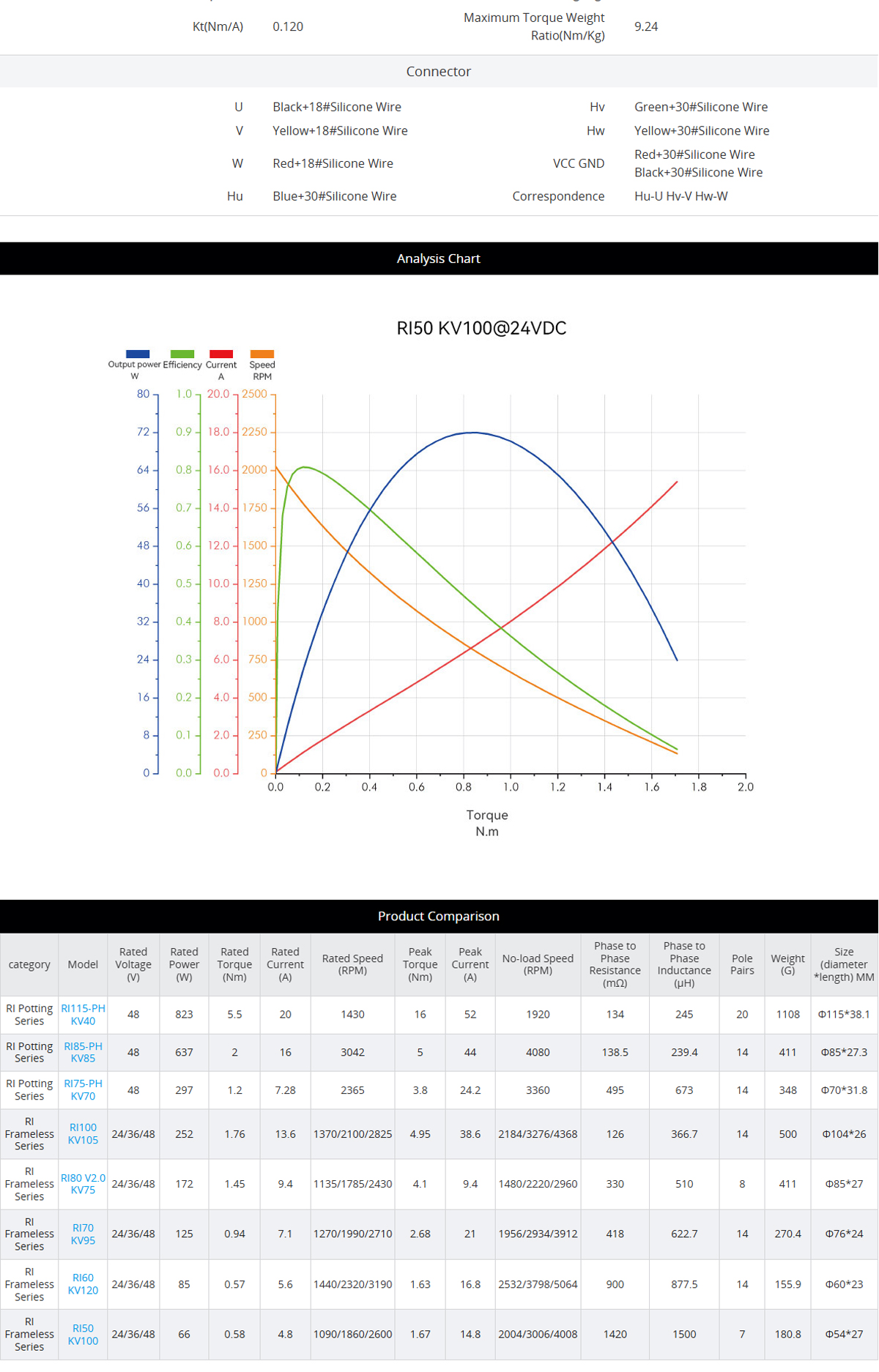

Product Details
Model: RI50 KV100
Application: Cobot Arm/Exoskeleton
Insulation Class: C
Driving Way: FOC
Insulation High-Voltage: 500V 5mA/2s
Operation Ambient Temperature: -20℃~50℃
Insulation Resistance: 500V 10MΩ
Winding Type: Star
Phase: 3
Pole Pairs: 7
Rated Voltage (V): 24/36/48
Ke (V/krpm): 11.41
No-Load Speed (rpm): 2004/3006/4008
Phase To Phase Resistance (mΩ): 1420
Rated Torque (Nm): 0.58
Phase To Phase Inductance (μH): 1500
Rated Speed (rpm): 1090/1860/2600
Inertia (gc㎡): 22.8
Rated Current (ADC): 4.8
Km (Nm/√W): 0.1007
Peak Torque (Nm): 1.67
Mechanical Time Constant (ms): 0.22
Peak Current (ADC): 14.8
Electrical Time Constant (ms): 1.06
Kv (rpm/V): 100
Weight (g): 180.8
Kt (Nm/A): 0.120
Maximum Torque Weight Ratio (Nm/Kg): 9.24
CubeMars RI50 KV100 Frameless Motor Low Cogging Torque Compact
CubeMars RI50 KV100 Frameless Motor Low Cogging Torque Compact
CubeMars RI50 KV100 Frameless Motor Low Cogging Torque Compact
CubeMars RI50 KV100 Frameless Motor Low Cogging Torque Compact
CubeMars RI50 KV100 Frameless Motor Low Cogging Torque Compact
CubeMars RI50 KV100 Frameless Motor Low Cogging Torque Compact
CubeMars RI50 KV100 Frameless Motor Low Cogging Torque Compact
CubeMars RI50 KV100 Frameless Motor Low Cogging Torque Compact
CubeMars RI50 KV100 Frameless Motor Low Cogging Torque Compact
  • 100 Units in Stock
