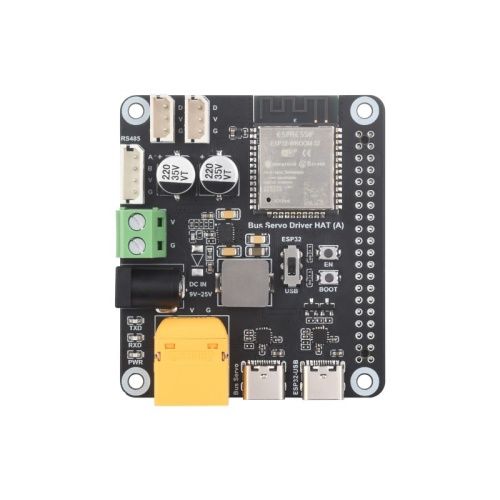

Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo



$29.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo Control
Circuit for ST/RSBL Series Serial Bus Servos
Product Details
Model:Bus Servo Driver HAT (A)
SKU:27577
Weight:82g
Controller:ESP32-WROOM-32
Power supply port:XT60 connector, 5.5×2.5mm DC jack
Power supply:9~25V (the input voltage and the servo voltage must be matched)
Communication interface:UART, USB Type-C port×2
Wireless communication:2.4G WiFi
Mounting hole diameter:3mm
Mounting hole spacing:58×49mm
PCB size:65×57 mm

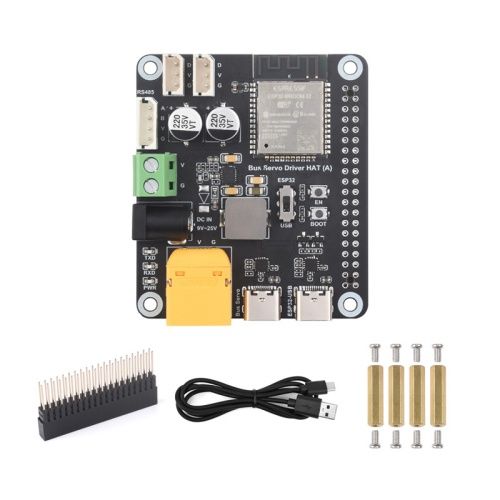

Item Packing
Bus Servo Driver HAT (A) x1
2×20 pin header x1
USB-A to USB-C cable x1
Screws pack x1
WS-SDB-27577
Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo Control
Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo Control
Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo Control
  • 100 Units in Stock
