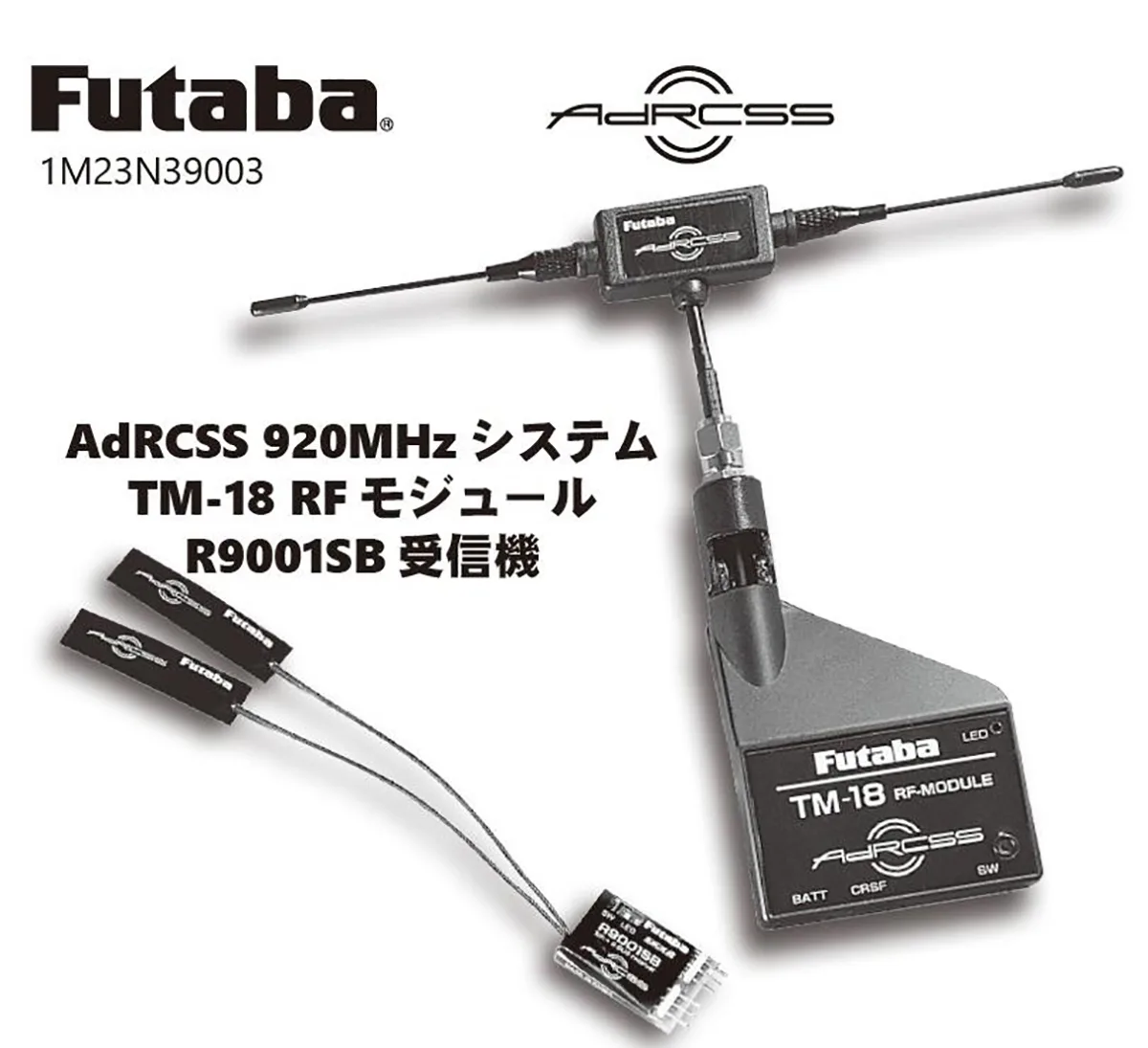

Futaba 900MHz TM-18 16 Channel Transmitter Module R9001SB Rx




$440.00

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
Adopts 920MHz frequency band spread spectrum communication technology.
Prevents interference from other AdRC SS 920MHz systems through the
unique ID coding of the transmitter. Equipped with fault protection
function (only for 3 channels). Recommended Usage

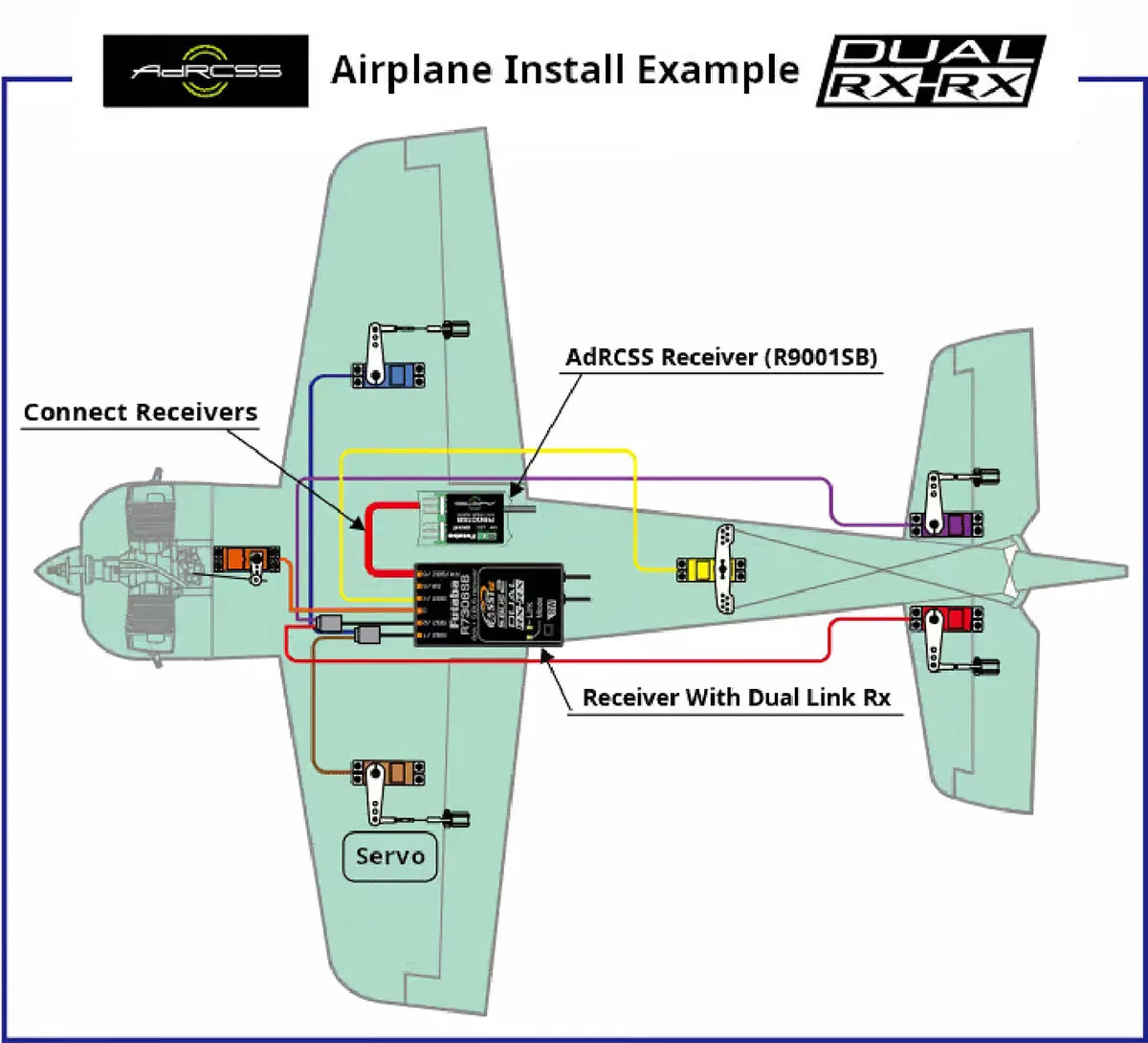

It is recommended to match with FDLS – 1, DLPH – 1, DLPH – 2 or receivers
supporting dual – receiver link systems (such as R7308SB, R7208SB, etc.),

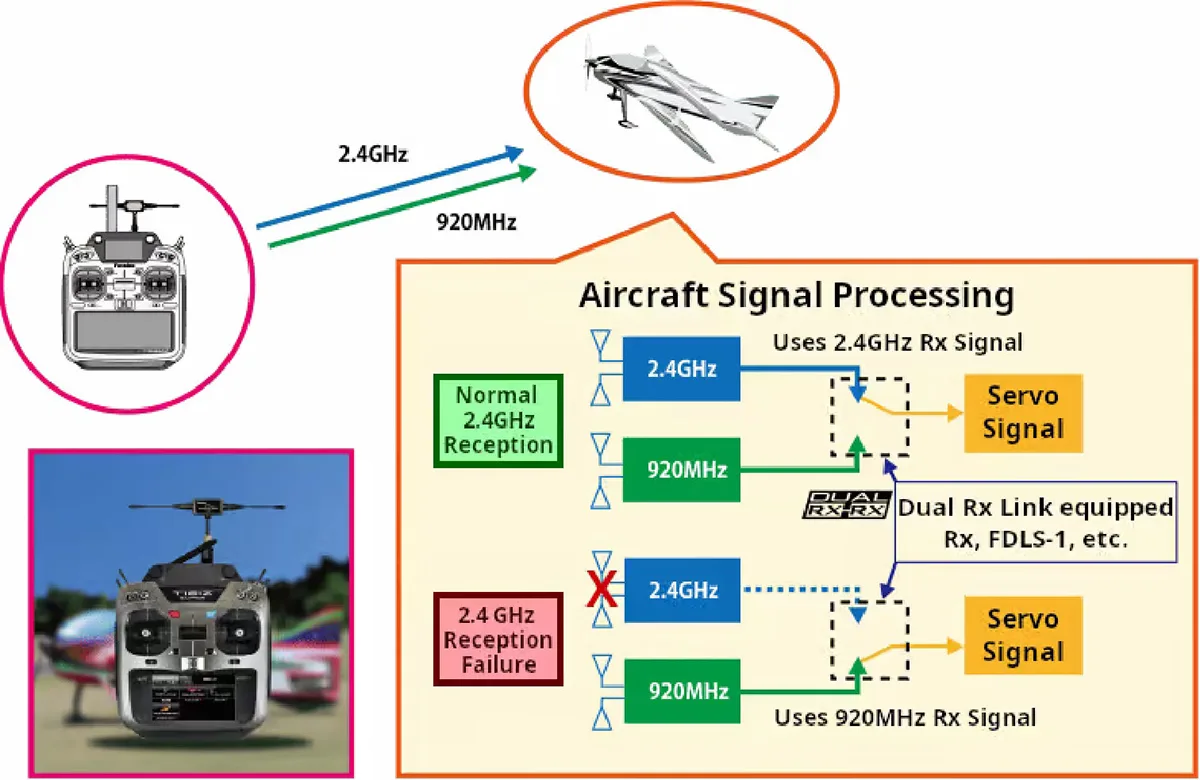

and use the AdRCSS 920MHz system as a backup for the 2.4GHz system.
※Due to the different communication speeds of each system, the operation
after switching may be slightly different, which is a normal phenomenon.
Compatible Transmitters
T32MZ WC, T32MZ, T18SZ, T16IZ, T16IZS
※T16SZ and T12K require additional power supply support because the
CRFS interface has no power supply.
Product Details
Model: TM-18 RF Module
Communication method: One way communication
(telemetry function not supported)
Maximum operating current: 36mA
Supports AdRCSS 920MHz system / Maximum 16 channels
(depending on transmitter settings)
Can be used simultaneously with all Futaba 2.4GHz systems
(including FASSTest 18ch/12ch, FASST MULTI/7ch, S-FHSS, T-FHSS)
Supports low power mode
Transmitter Setting Method:

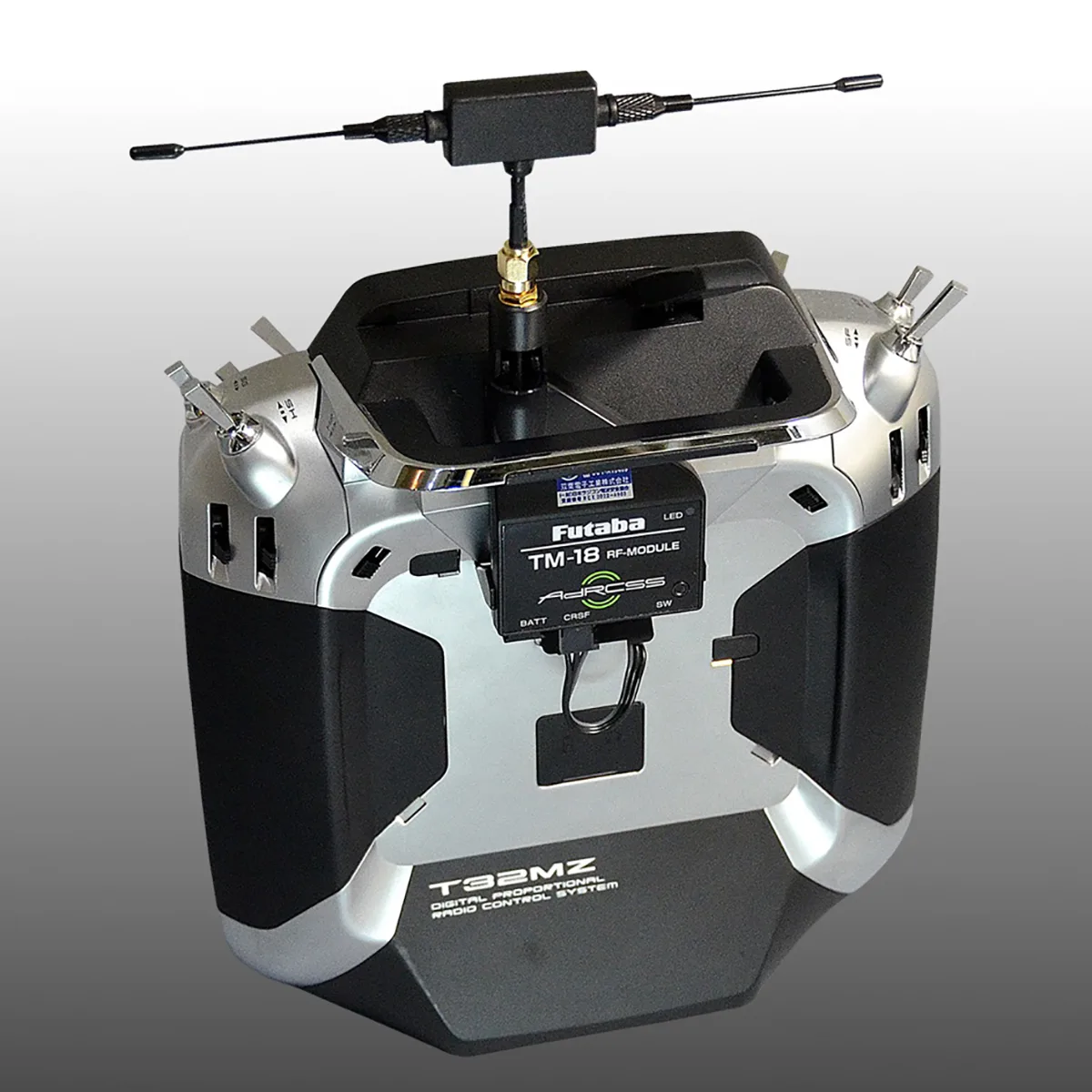

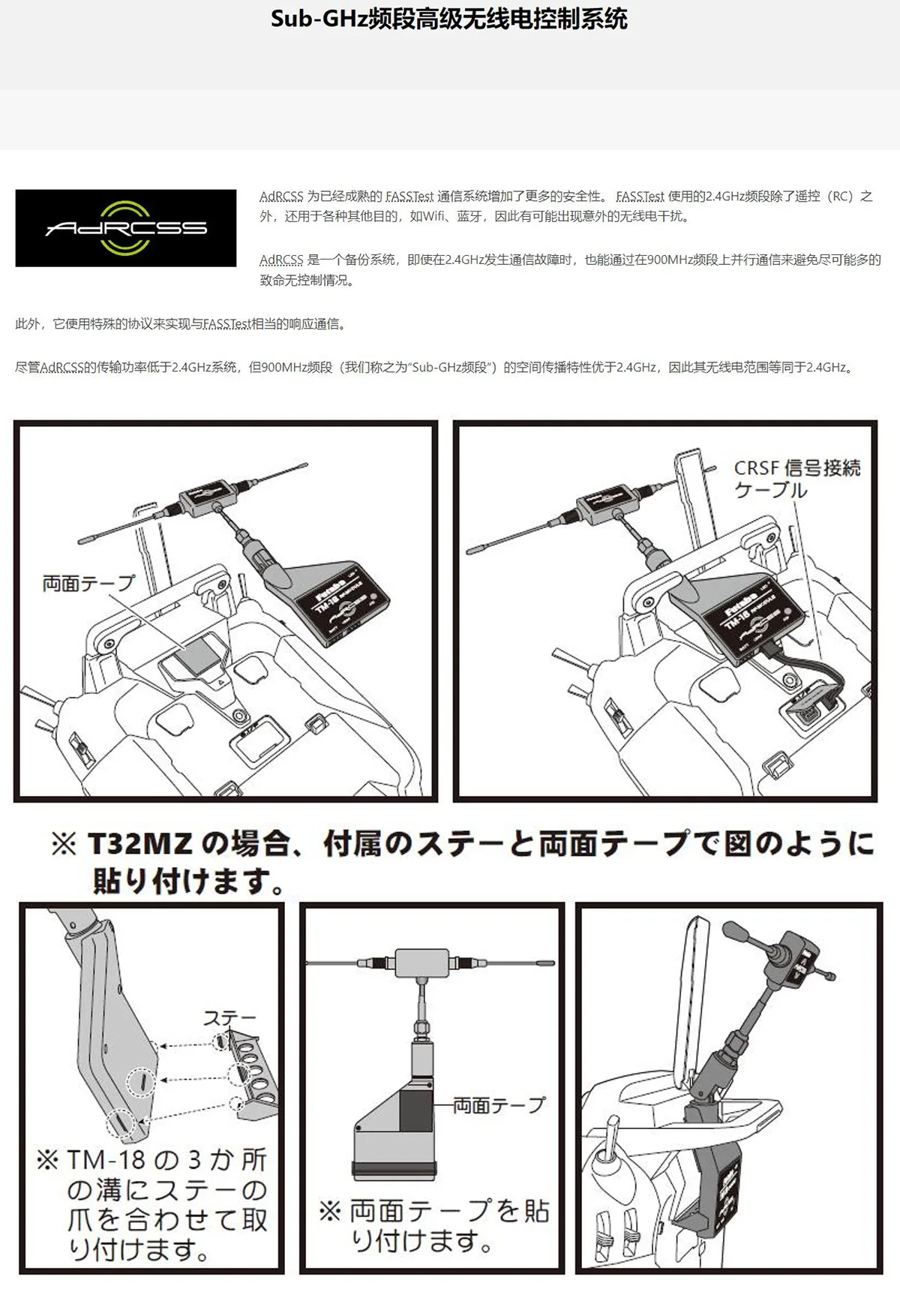

T32MZ WC / T32MZ: It can be used by directly connecting to the CRSF interface
T18SZ, T16IZ, T16SZ, T12K: CRSF mode needs to be enabled,
and S.BUS servo setting cannot be performed at this time

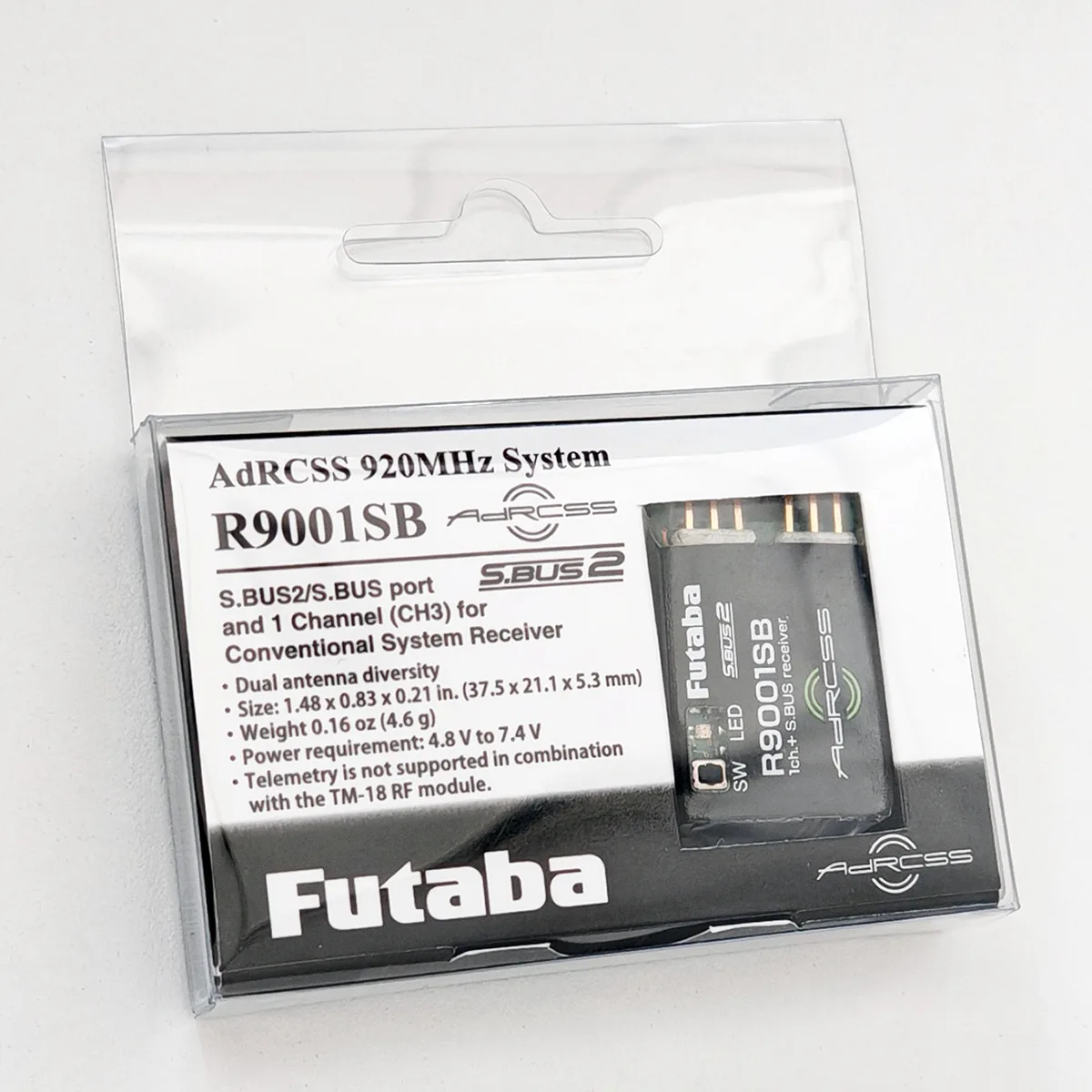

Model: R9001SB Receiver
AdRCSS 920MHz System: S.BUS2/S.BUS port and 1 Channel
(CH3) for Conventional System Receiver
Dual antenna diversity
Size: 37.5×21.1×5.3mm
Weight: 4.6g
Power requirement: 4.8V-7.4V
Telemetry is not supported in combination with the TM-18 RF module
Precautions:
When using BEC power supply, ensure its capacity meets the power
supply requirements of the servos and other equipment used.
Do not use dry batteries for power supply.
The maximum number of channels for S.BUS/S.BUS2 output varies
depending on the transmitter model (unused channels will maintain
neutral output). When fault protection (F/S) is triggered, the preset
F/S channel will switch to a safe position, and the remaining
channels will enter the Hold state.
Compatibility Description:
※ This device does not support the 2.4GHz system and needs
to be used with the TM – 18 RF module.
Futaba TM-18 900MHz 16 Channel Transmitter Module R9001SB Receiver for T32MZ WC T18SZ T161Z T16IZS
Futaba TM-18 900MHz 16 Channel Transmitter Module R9001SB Receiver for T32MZ WC T18SZ T161Z T16IZS
Futaba TM-18 900MHz 16 Channel Transmitter Module R9001SB Receiver for T32MZ WC T18SZ T161Z T16IZS
Futaba TM-18 900MHz 16 Channel Transmitter Module R9001SB Receiver for T32MZ WC T18SZ T161Z T16IZS
Futaba TM-18 900MHz 16 Channel Transmitter Module R9001SB Receiver for T32MZ WC T18SZ T161Z T16IZS
Futaba TM-18 900MHz 16 Channel Transmitter Module R9001SB Receiver for T32MZ WC T18SZ T161Z T16IZS
  • 100 Units in Stock

Be the first to write a review.  Write a Review.
