RadioMaster ER6G/ER6GV 2.4GHz ELRS PWM Receiver 6 Channel


$39.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
The RadioMaster ER series of PWM receivers are based on the revolutionary
ExpressLRS system. It offers high performance, high reliability, flexible
configuration, fast response speed and ultra-long range bringing you
brand new experience with your hobby.
The ER6G & ER6GV receiver have been specially designed for glider pilots
who require a compact and slim receiver. It can drive up to 6 servos and has
built-in receiver voltage telemetry and flight battery telemetry with
the ability to automatically detect which voltage input to use. Both ER6G
& ER6GV feature a dual-antenna with telemetry power up to 50mw and can work
stably with a 1S Lipo receiver battery.

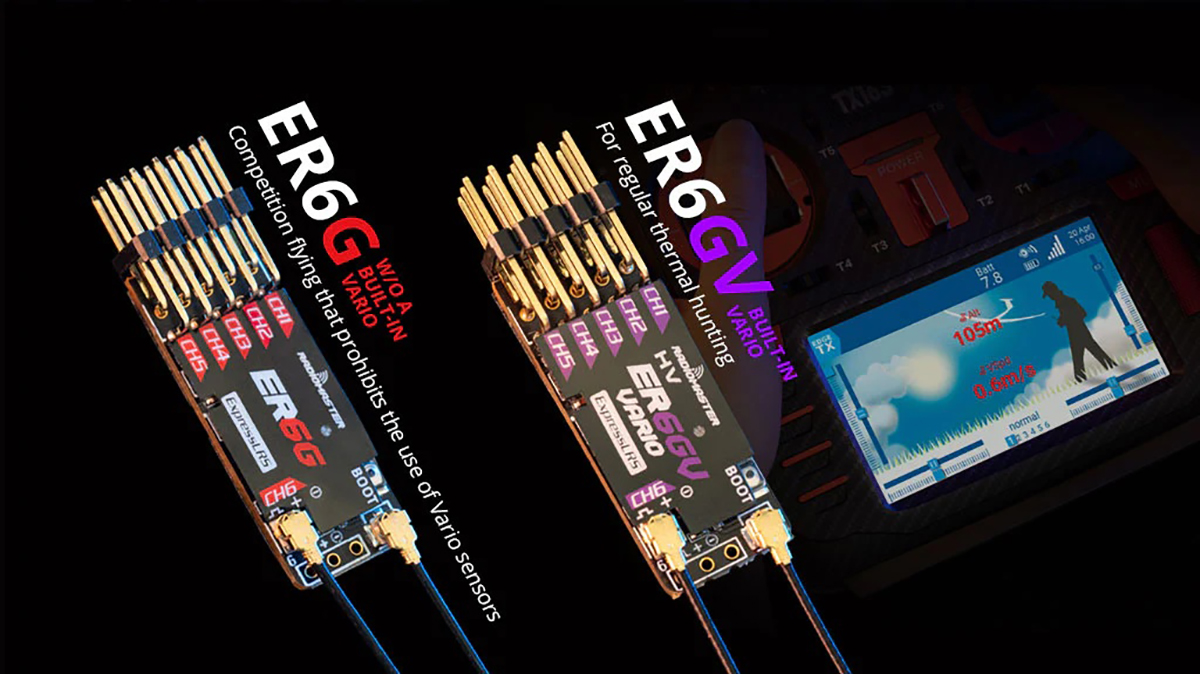

The ER6G Receiver has the same functionality as the ER6GV only without a
built in Vario for competitions that prohibit the use of a Vario or simply
for users who do not need a vario on their receiver.
Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, fast response
speed and ultra-long range
Support 6 PWM Channels

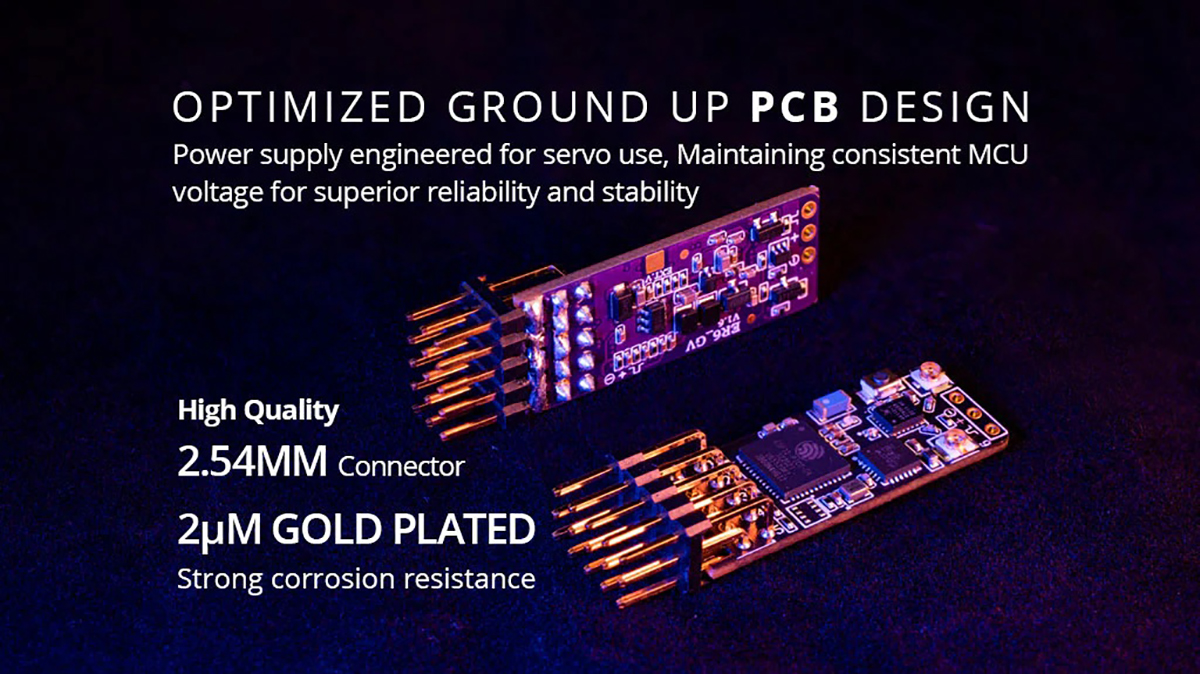

Optimized ground up PCB design

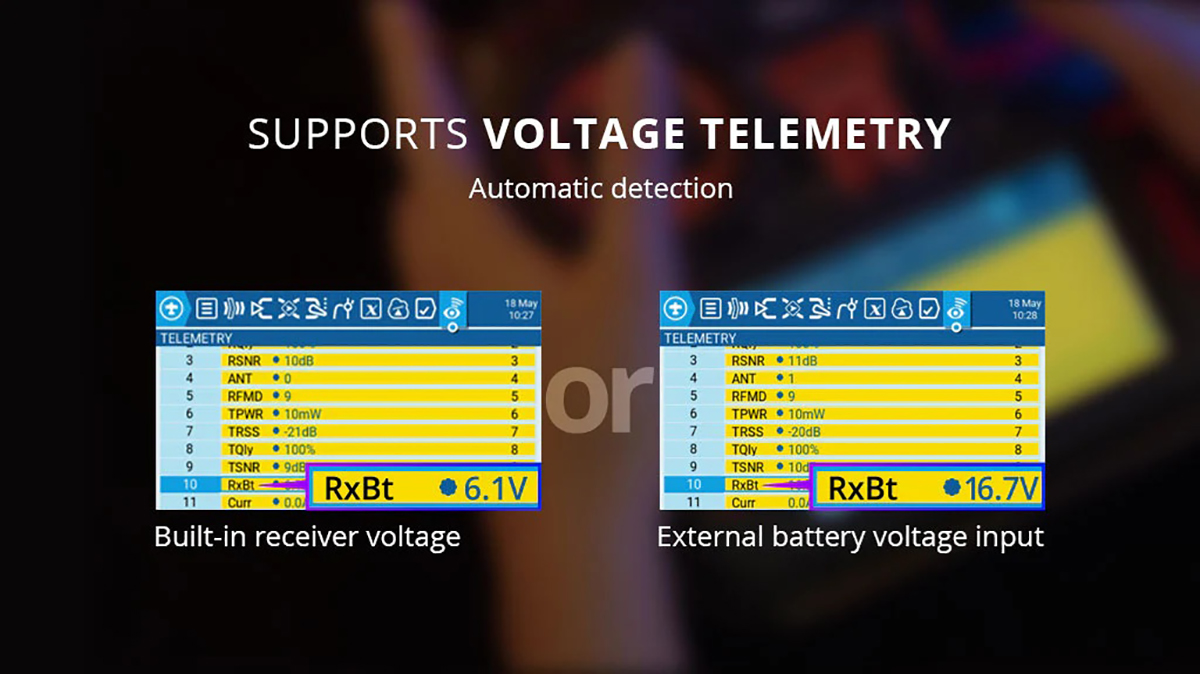

Automatically voltage telemetry of external battery voltage or built-in
receiver voltage
ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
Supports Wi-Fi updates and WEBUI configuration
High quality 2.54 mm connector
Standard 15 cm High Sensitivity Antenna
For fixed-wing aircraft and gliders
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in
2.4GHz ExpressLRSReceiver
Product Details
Model: ER6G 2.4GHz ELRS PWM Receiver
Power supply: DC 3.5 – 8.4V
Antenna type: 15cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 6CH PWM
Telemetry power: maximum 50mw (LUA Adjustable)
Battery voltage detection range: DC 3.0 – 26V
Weight: 5.0 grams

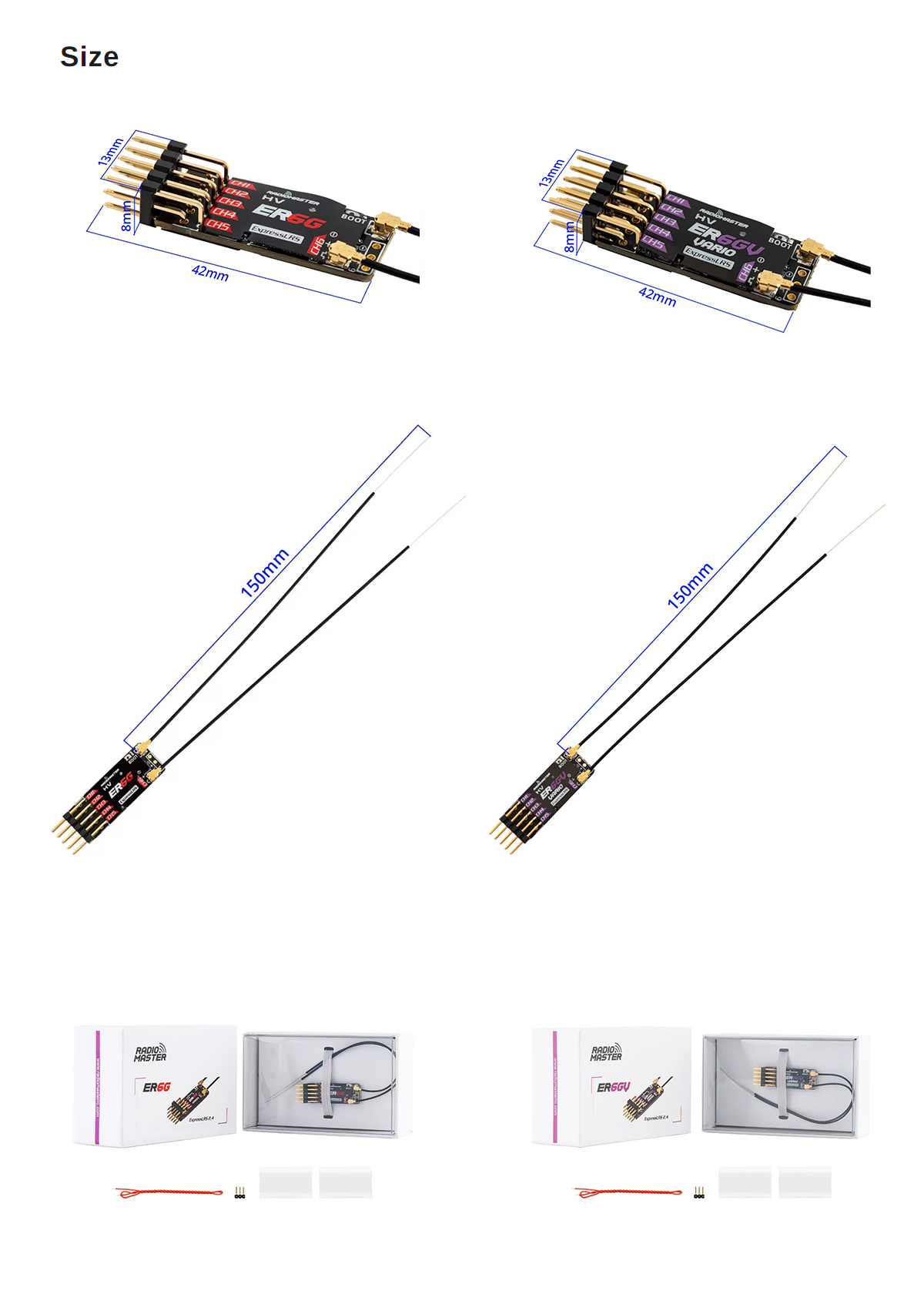

Dimensions: 42*13*8mm
Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster
ER6-G 2.4GHz Diversity+6xPWM RX
Model: ER6GV 2.4GHz ELRS PWM Receiver
Power supply: DC 3.5 – 8.4V
Antenna type: 15cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.2 pre-installed
Output channel: 6CH PWM
Return power: maximum 50mw (LUA Adjustable)
Built-in high-precision air pressure sensor (Vario)
Battery voltage detection range: DC 3.0 – 26V
Weight: 5.0 grams
Dimensions: 42*13*8mm
Firmware: Device Category: Radiomaster 2.4Ghz / Device:
RadioMaster ER6-GV 2.4GHz Diversity+6xPWM+Vario RX
