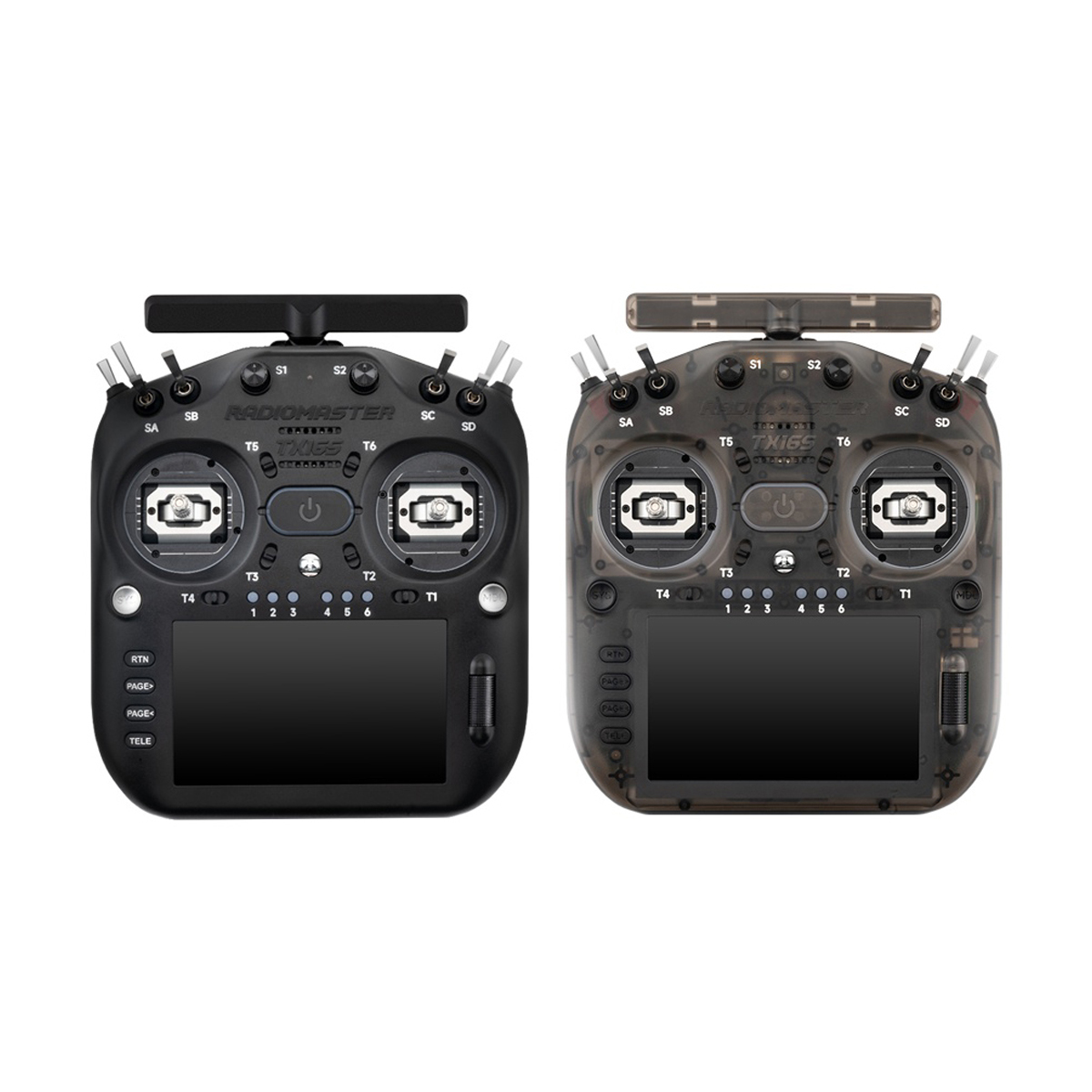

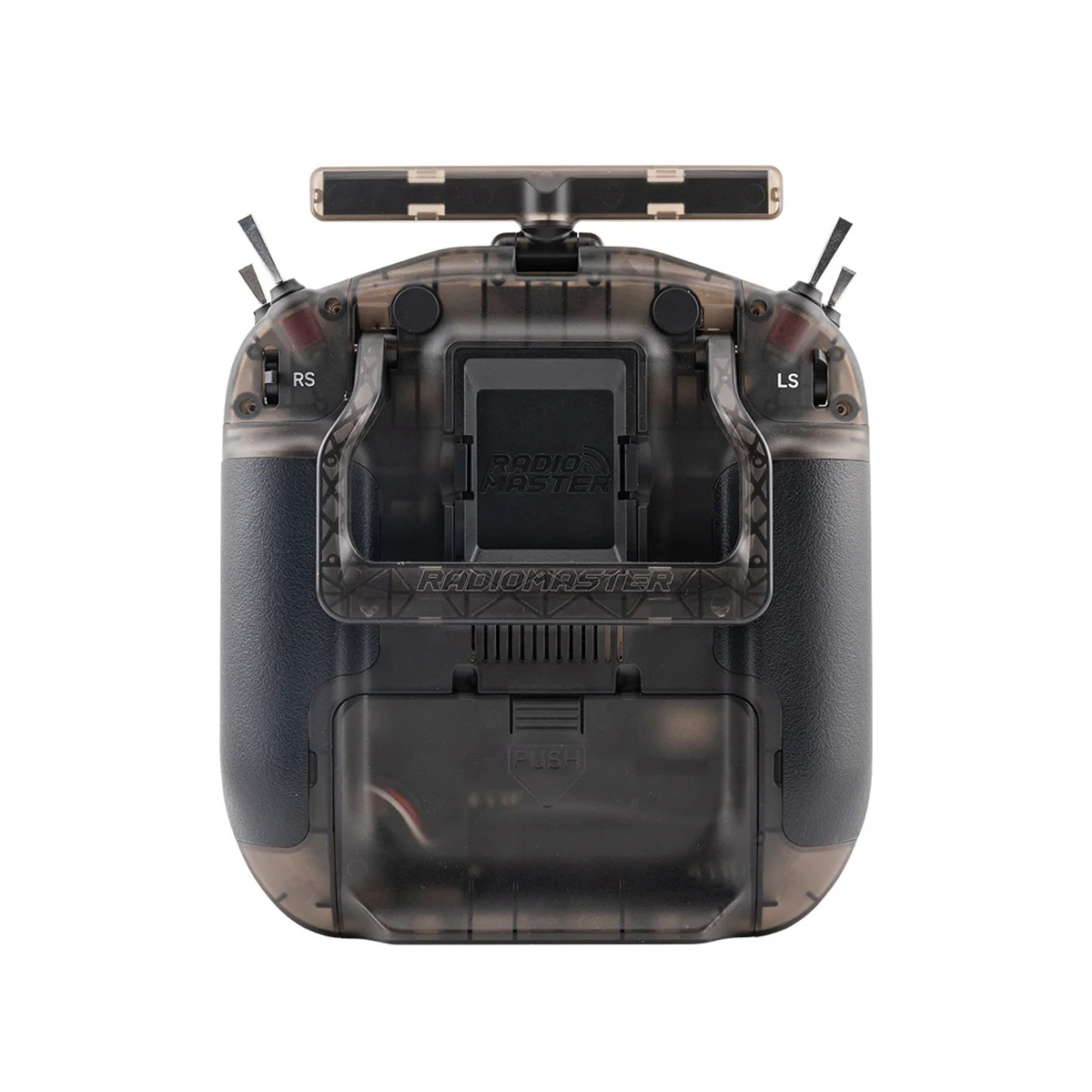

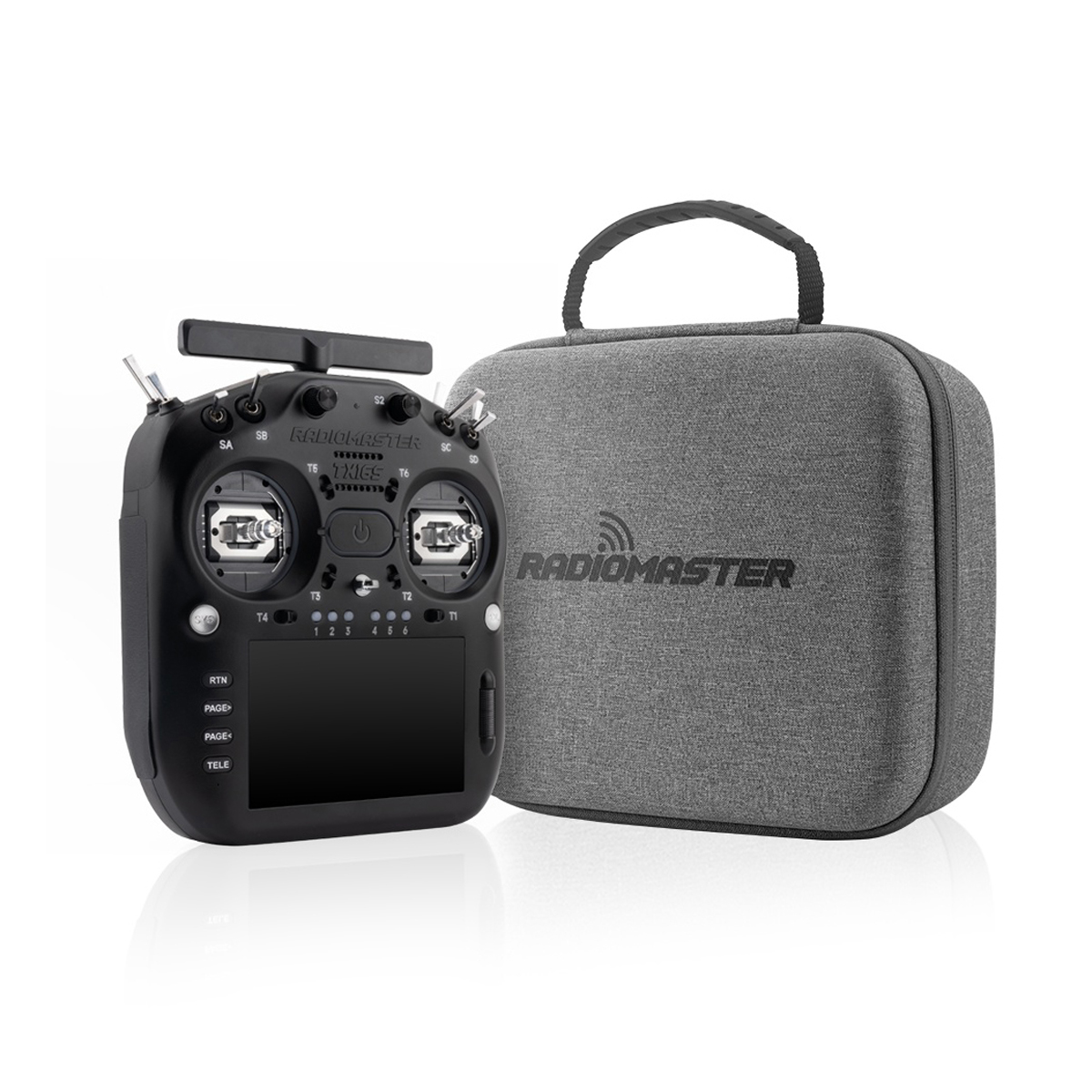

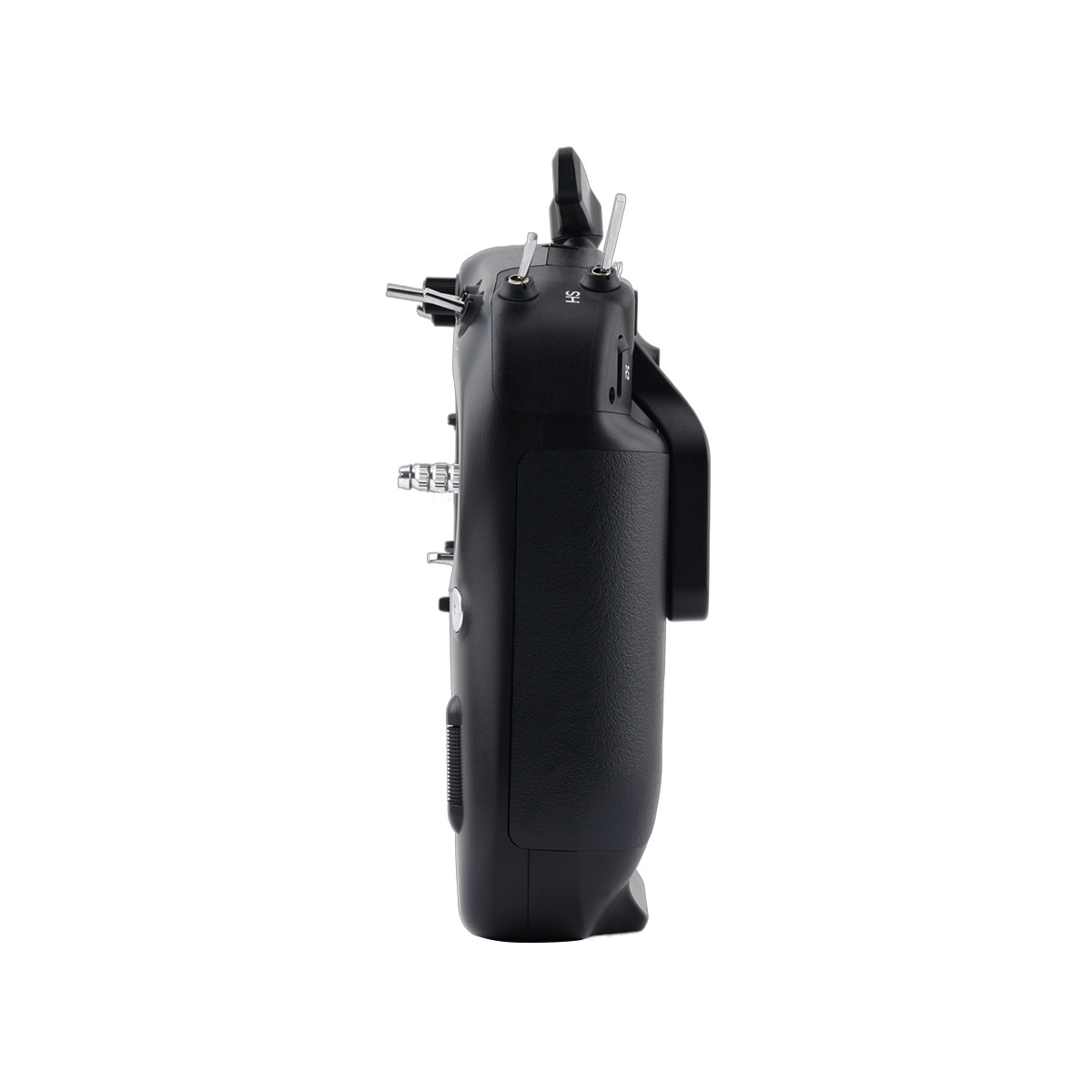

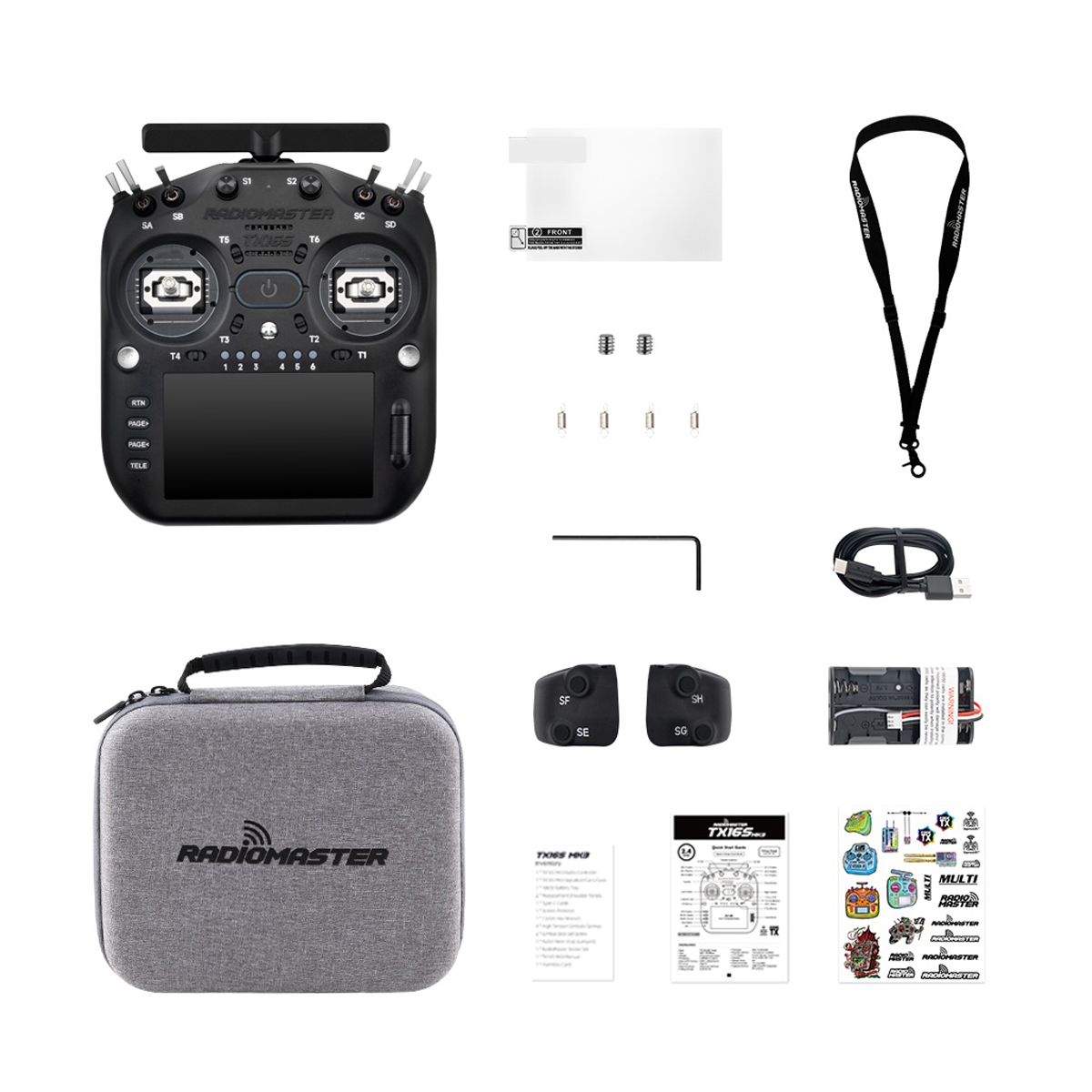

Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz V6 ExpressLRS








$240.00

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz
V6 Hall Gimbal Gemini Dual Band ExpressLRS for FPV Drone
Color: Black, Transparent Charcoal
High-Performance MCU: Powered by the
STM32 H7 chip for maximum processing power.
Touchscreen Display: 5-inch, 800 x 480 IPS
touchscreen with vivid colors and sharp detail.
Precision Gimbals: V6 quad-bearing Hall sensor gimbals (AG02 compatible)
RGB Programmable Gimbal Light Rings:
LUA-controlled, customizable LED gimbal lighting.
Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz
Smart Balance Battery Circuit: Maximizes battery
efficiency and longevity for better battery life.
Powerful Cooling System: Low-noise, high-output fans and
an aluminum heat sink keep your radio cool, even on the hottest days.
Digital audio: Greater sound quality and reduced interference.
Dual Foldable Antennas: Compact and easy
to store without compromising signal strength.
Built-in Microphone: For future feature expansion.
Automatic back light adjustment:
Makes the screen easier to read indoors and out.
Built-in Motion Sensor: Trigger switches, pan/tilt cameras,
or telemetry callouts simply by tilting your radio.
Memory: Integrated 4GB of onboard flash memory
and external MicroSD card support.
Removable shoulder switch panels: Customize
your setup with modular switch panels.
Product Details
Model: TX16S MK3 Radio Controller
Color: Black / Transparent Charcoal
Voltage Range: 6.6 – 8.4V DC
Working Current: 1.10A (at max RF output power)
Radio Firmware: EdgeTX (require 3.0.0 or higher)
Built-in RF Module: ExpressLRS 2 x LR1121
Frequency: ISM 2.4GHz and Sub-G 900MHz
Number of Channels: Up to 16ch
Gimbal: V6 Hall sensor gimbals (standard)
MicroSD Card Slot: Yes (card not included)
Internal Storage: Integrated 4GB of onboard flash memory
Display: 5-inch IPS touchscreen (800 X 480 resolution)

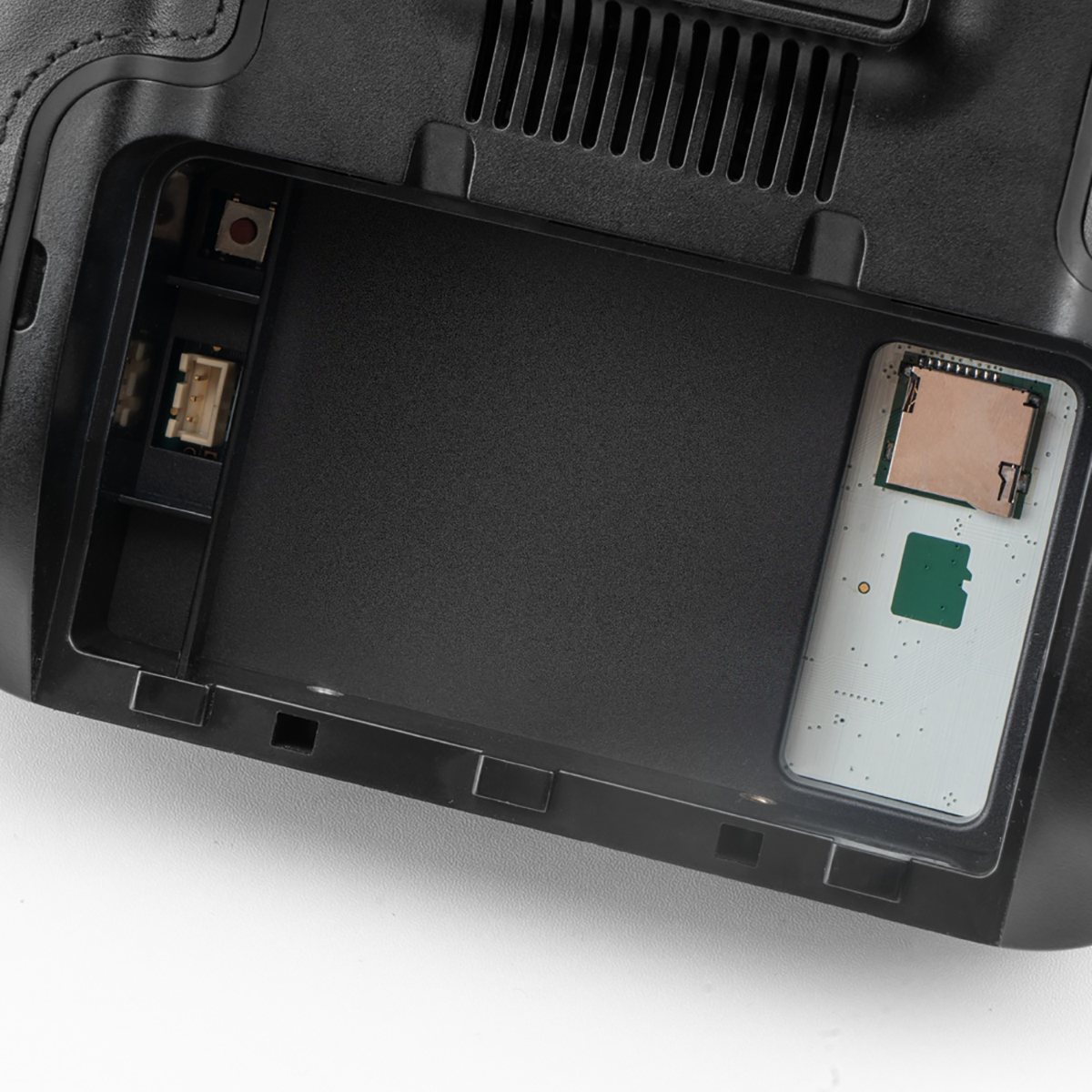

Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery
/ 2S 7.4V 6200mAh Lipo (batteries not included)
Upgrade Method: USB / EdgeTX Companion PC software
Module Bay: JR-compatible module bay for additional modules
Dimensions: 200*178*88mm
Weight: 813g (without battery)
Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz V6
Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz V6
Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz V6
Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz V6
Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz V6
Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz V6
Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz V6
Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz V6
  • 100 Units in Stock

Be the first to write a review.  Write a Review.
