TX16S MK3 MAX Radio Controller 2.4GHz 900MHz






$340.00

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
Black, Blue, Gold, Red RadioMaster TX16S MK3 MAX Radio Controller 2.4GHz 900MHz AG02
CNC Hall Gimbal 5-inch IPS Touchscreen for RC Drone

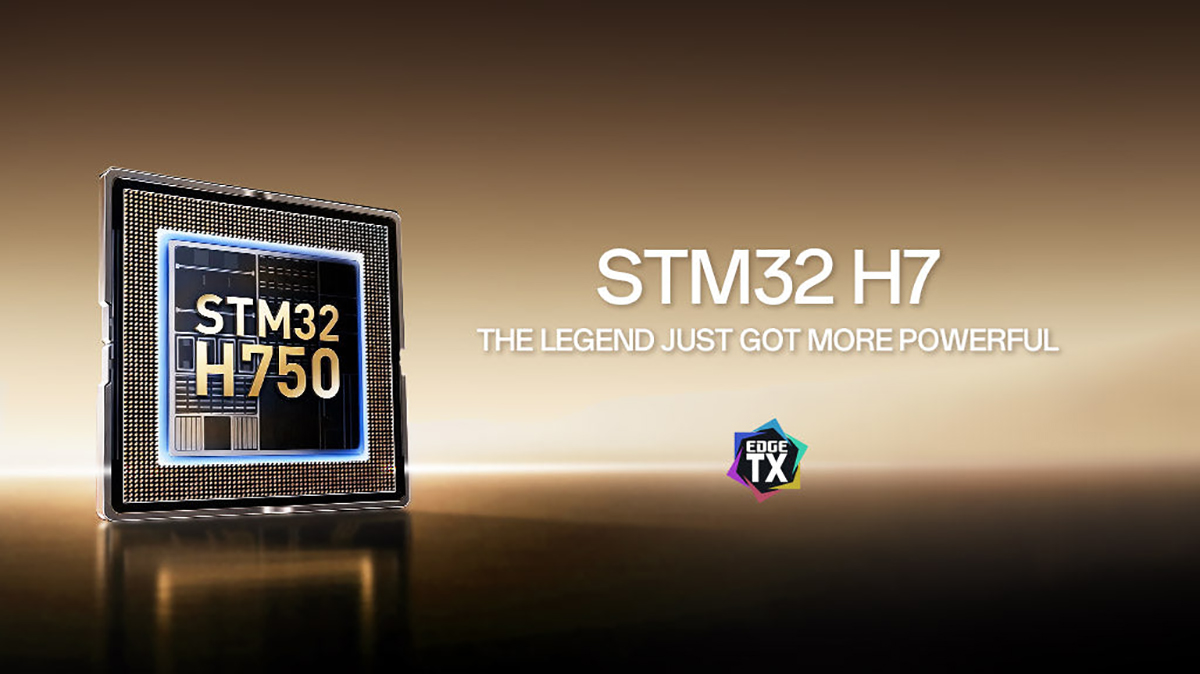

High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.

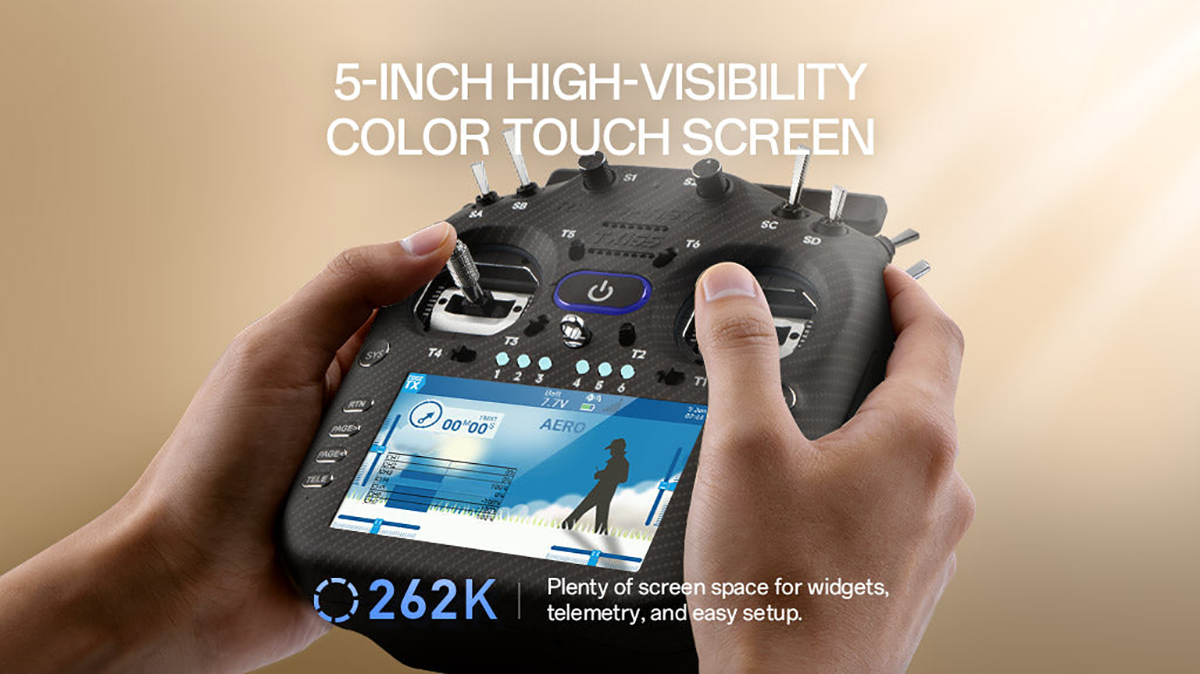

Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.

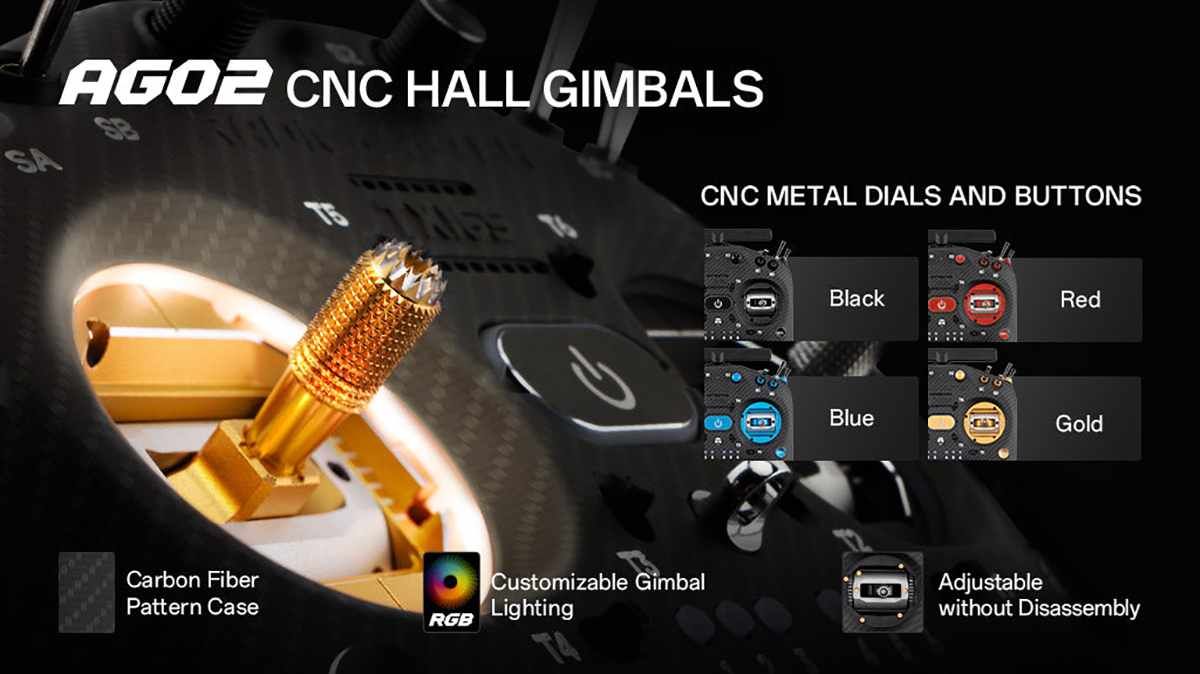

Precision Gimbals: AG02 Quad-Bearing, CNC Aluminum Hall sensor gimbals (Model dependent).
Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz
Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for better battery life.

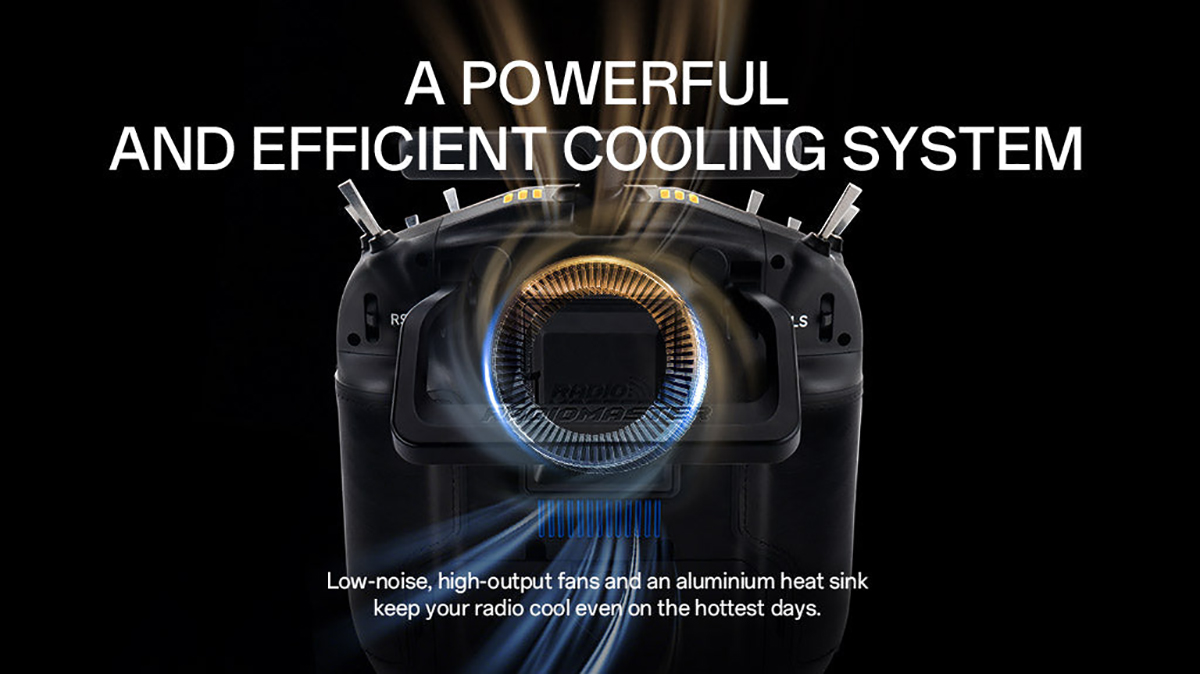

Powerful Cooling System: Low-noise, high-output fans and
an aluminum heat sink keep your radio cool, even on the hottest days.
Digital audio: Greater sound quality and reduced interference.

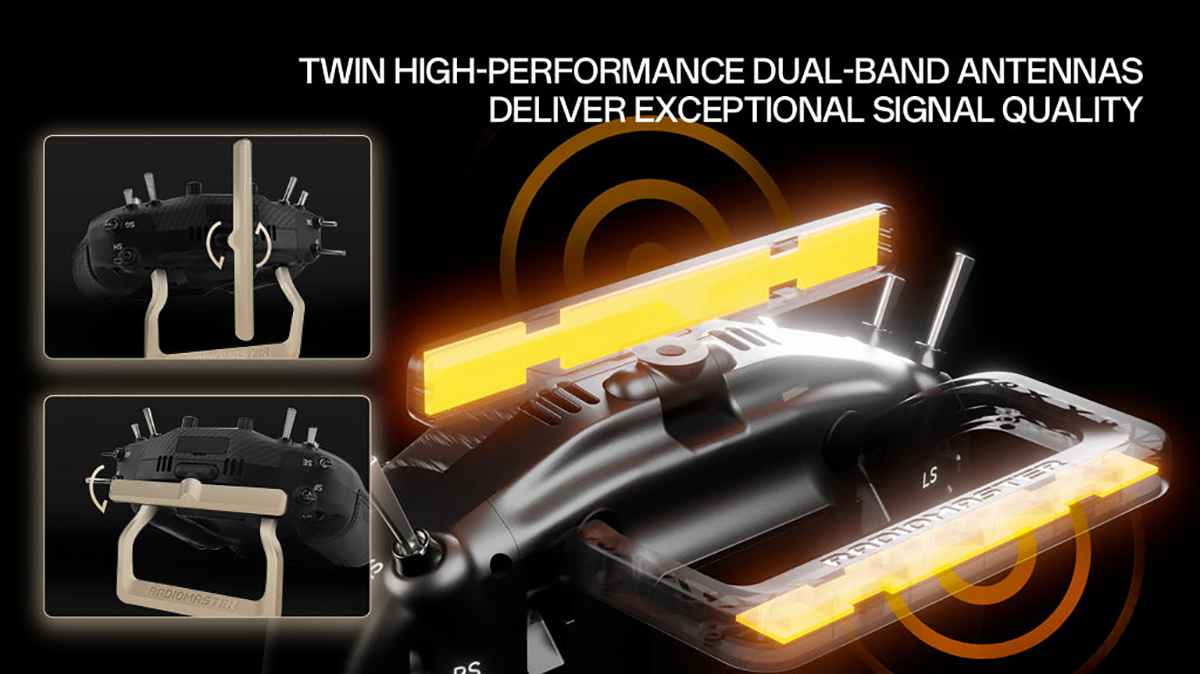

Dual Foldable Antennas: Compact and easy to store without compromising signal strength.
Built-in Microphone: For future feature expansion.
Automatic back light adjustment: Makes the screen easier to read indoors and out.

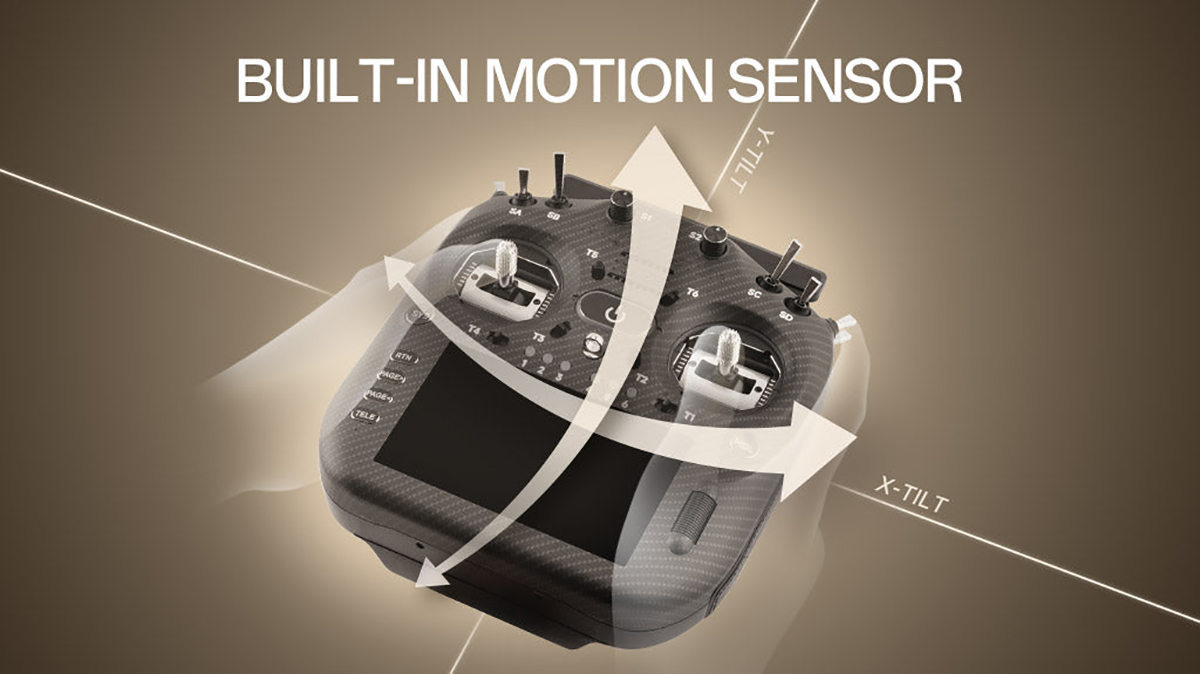

Built-in Motion Sensor: Trigger switches, pan/tilt cameras,
or telemetry callouts simply by tilting your radio.
Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.

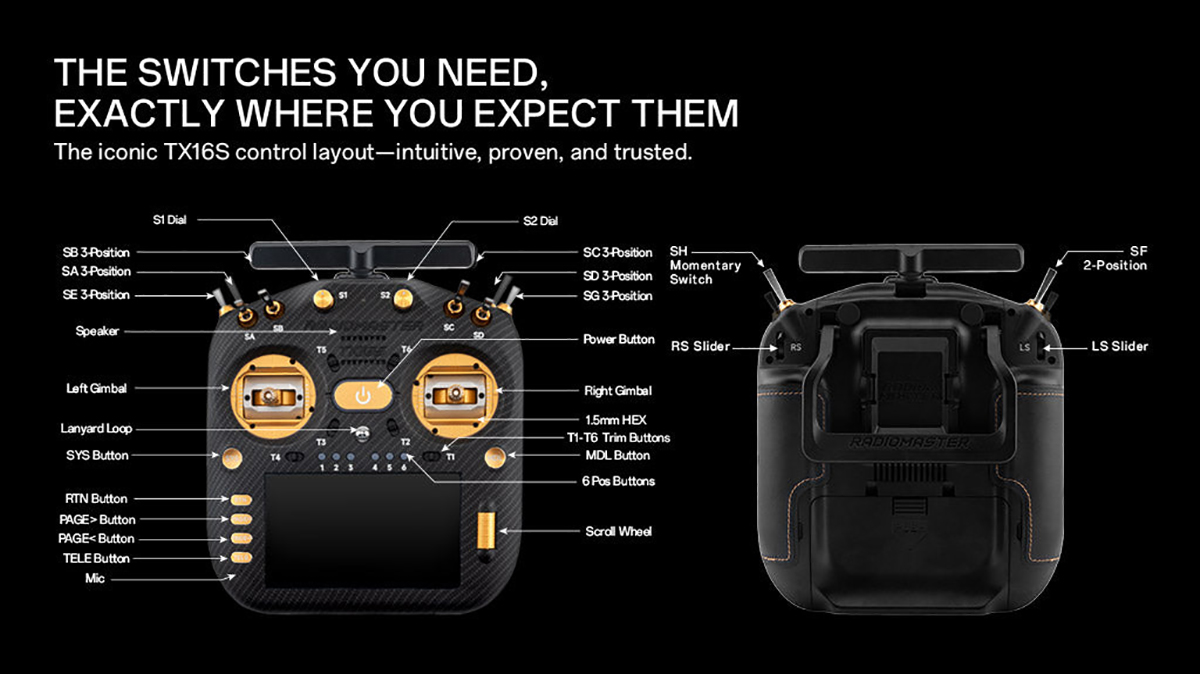

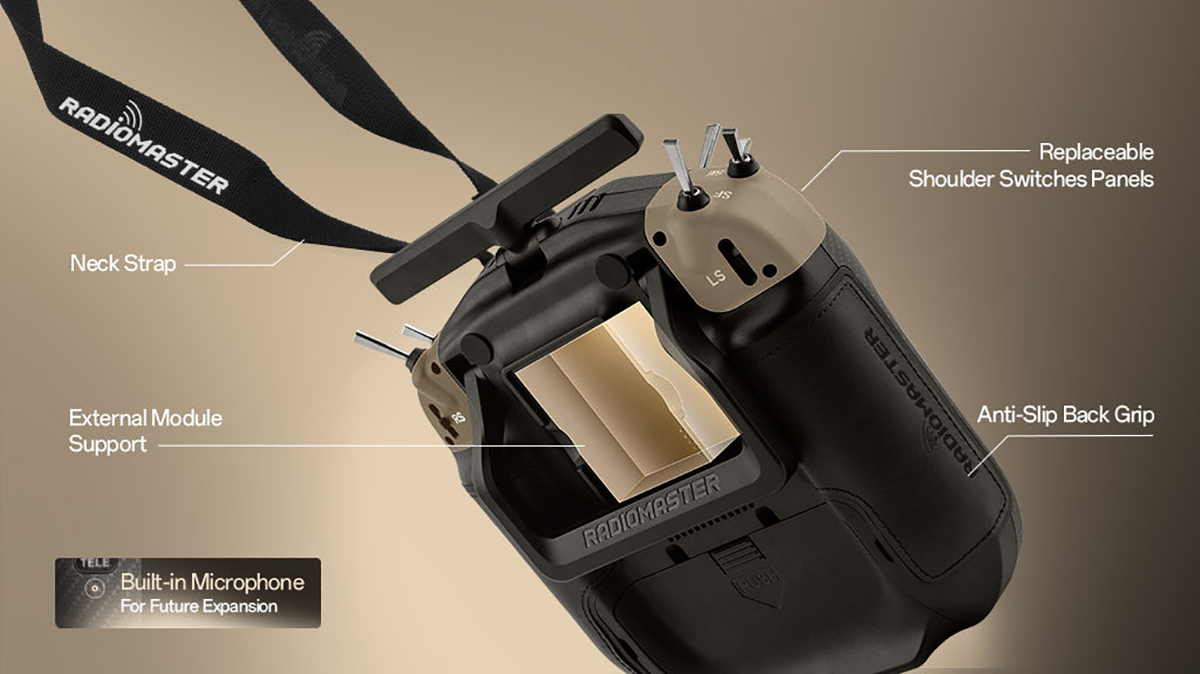

Removable shoulder switch panels: Customize your setup with modular switch panels.
Product Details
Model: TX16S MK3 MAX Radio Controller
Color: Black / Red / Blue / Gold
Voltage Range: 6.6 – 8.4V DC
Working Current: 1.10A (at max RF output power)
Radio Firmware: EdgeTX (require 3.0.0 or higher)

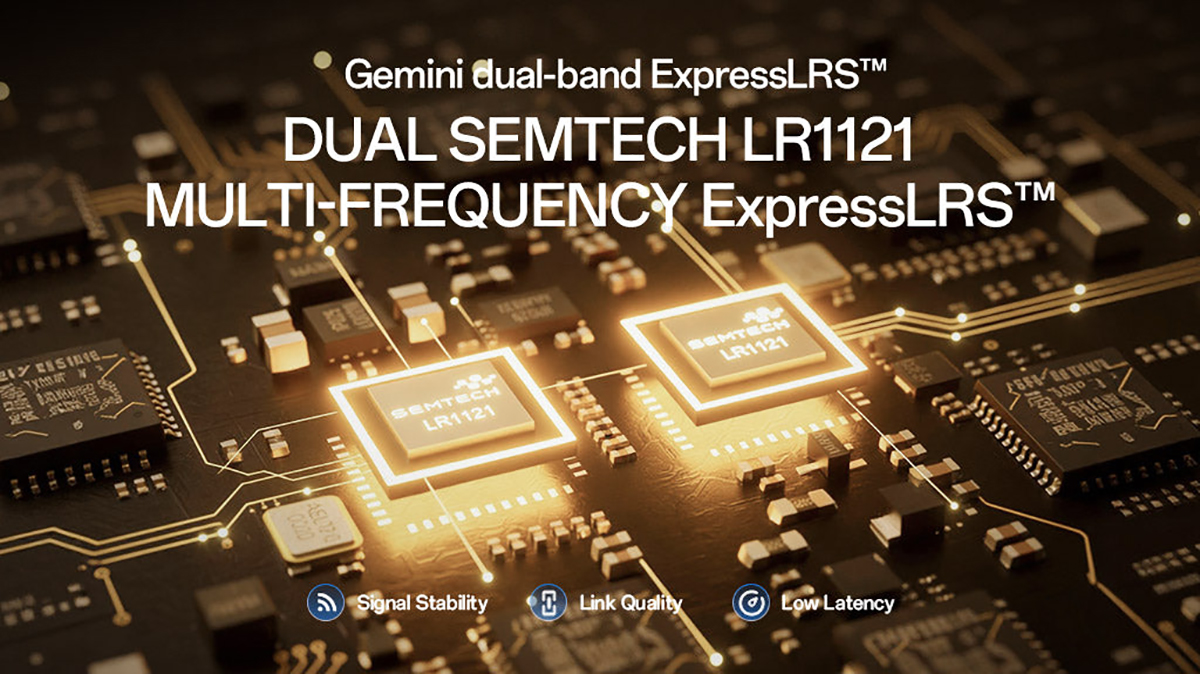

Built-in RF Module: ExpressLRS 2 x LR1121
Frequency: ISM 2.4GHz and Sub-G 900MHz
Number of Channels: Up to 16ch
Gimbal: AG02 CNC Hall sensor gimbals
MicroSD Card Slot: Yes (card not included)
Internal Storage: Integrated 4GB of onboard flash memory
Display: 5-inch IPS touchscreen (800 X 480 resolution)
Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery
/ 2S 7.4V 6200mAh Lipo (batteries not included)
Upgrade Method: USB / EdgeTX Companion PC software
Module Bay: JR-compatible module bay for additional modules

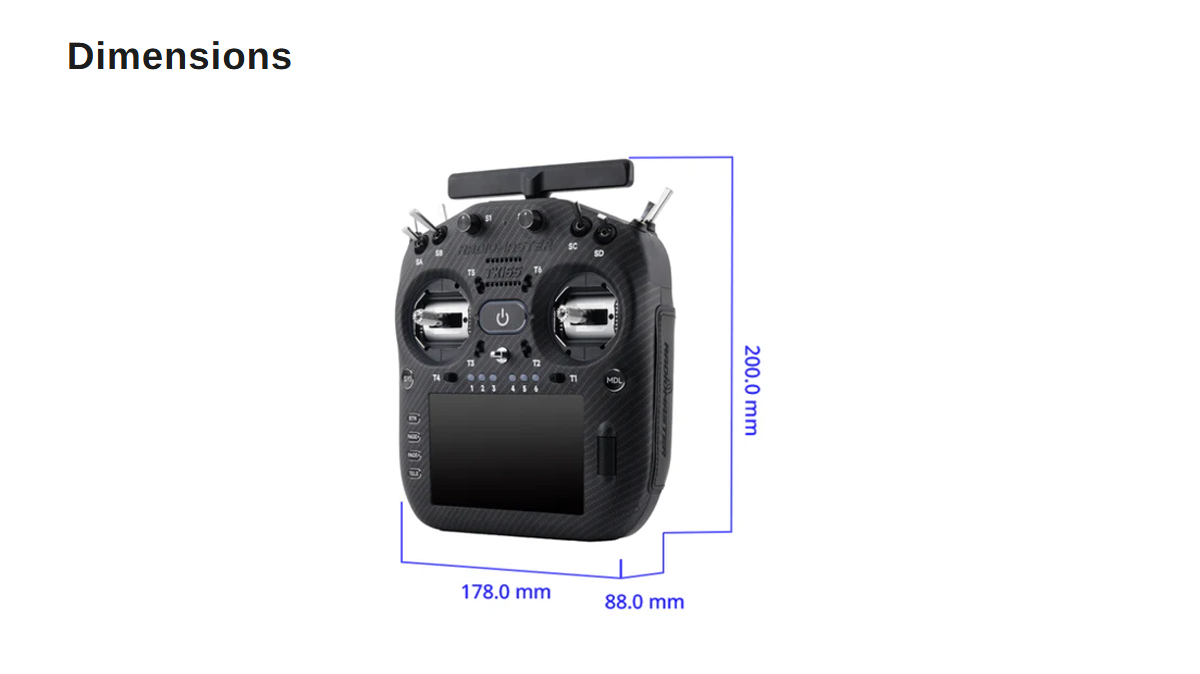

Dimensions: 200*178*88mm
Weight: 864g (without battery)
