5.8GHz Built-in Receiver 7 inch 800x480 Monitor W/Light Shield
-Built-in 5.8G Receiver -None "blue screen" effect when signal is weak -Small, light weight, durable Compatible with most 5.8G transmitters sold on our website except Partom TX. (refer to frequency table supported in the specification section) Product Details
1. Screen size:7”
2. Screen type: TFT LCD Screen/long life, LED backlight
3. Resolution: 800*480
4. Brightness: 450cd/m2
5. Contrast: 500:1
6. View Angle: 140/120degree (Horizontal/Vertical)
7. Working Voltage: DV 7-13V(center positive) or 11.1V Li-battery
8. Power Consumption: < 6w
9. Size: 170mm x 110mm x 40mm
10. Built-in 5.8Ghz receiver (RC305 5.8G)
11. Input: 2 ways video including AV1 for built-in receiver, one way audio
12 Output: 1 way
13. Support 9 languages menu selection including English.
14. Working temperature: -10℃~+ 65 ℃
15. Receiver antenna connector type: RP-SMA, jack (monitor side) See connector type diagram
Working frequencies (* Check your TX frequency to make sure they are supported by your TX)
• CH1: 5705MHz
• CH2: 5685MHz
• CH3: 5665MHz
• CH4: 5645MHz
• CH5: 5885MHz
• CH6: 5905MHz
• CH7: 5925MHz
• CH8: 5945MHz

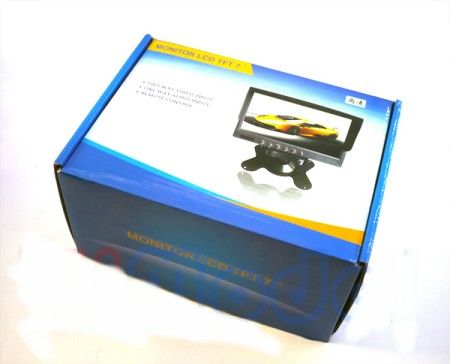

Item Packing
-monitor X 1
-monitor base X 1
-light shield X 1
-5.8G 2db antenna X 1
-double-side tape X 1

  • 45 Units in Stock
