GPS pre-configured for use with APM 2.5/2.5.2/2.6/Pixhawk


Add to Cart:

  • Description
  • Details
  • Reviews
  • offthegridsun info

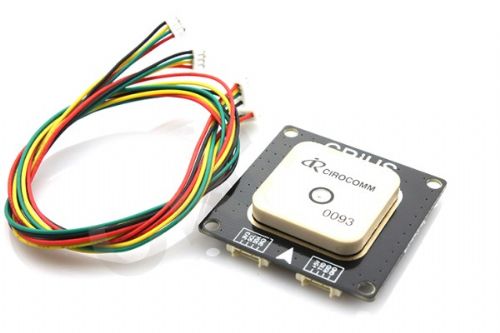

GPS pre-configured for use with APM 2.5/2.5.2/2.6/Pixhawk and include cable for APM

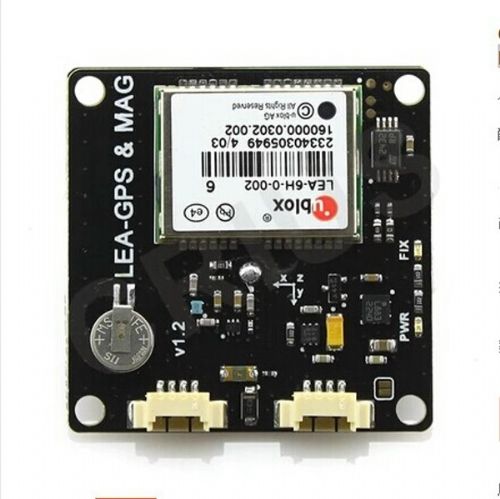

•u-blox LEA-6H GPS module
•5Hz update rate
•32k I2C EEPROM for save configuration
•Build in 25 x 25 x 4mm ceramic patch antenna
•LNA and SAW chip
•3.3V LDO low noise regulator
•UART (TTL) port with EMI protection
•3V lithium Rechargeable battery
•Power and fix indicator LEDs
•Reverse polarity protection for input power
Product Details
Default parameter
•UBX protocol
•Baud rate : 38400
•Nav rate : 4Hz
•TIMEPULSE (fix LED) rate : 1Hz
•Dimension: 40 x 40 x 9mm
•Weight: 17g/20g (include cable)
•Hole diameter: 3.1mm

  • 100 Units in Stock

Be the first to write a review.  Write a Review.

The NEW Small UAS Rule (Part 107), including all pilot and operating rules, will be effective in August 2016. For more detailed information, please see:

Need more information? Read about how to fly a UAS for your work or business.

This product was added to our catalog on Saturday 16 August, 2014.
