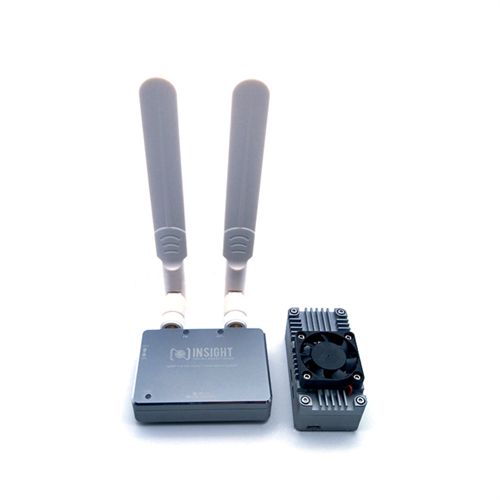

5G 200mW Full HD 1080P HDMI Digital FPV Wireless Video TX


$551.43

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
1. Anti-interference
2. Low latency
- system delay 80ms;
3. OSD function
- Using pix apm pixw without external OSD, APP can be achieved information overlay function;
4. Use with flight controller
- without any restrictions to use built-in digital transmission APP with pix apm pixw
5. Battery and charge
- Built-in 1300mAh capacity battery on the ground side, the equipment can work continuously for 2 hours.
- Sky-side input voltage 5V (optional wide voltage input module 7-28V)
6. Video input, output format:
- HDMI input;
- 5G WI-FI full HD video output: Android phone, tablet computer can be as the display after connecting the APP;
7. 5G full HD digital transmitter:
- Digital video transmission, input up to 1920 * 1080 @ 60fps, output up to 1920 * 1080 @ 30fps;
- 5G radio frequency technology, the transmission power is 200mw (in line with FCC certification standards);
- the ground side with 5dbi omnidirectional antenna, the measured effective transmission distance is up to 2km;
Product Details
Material: aluminum alloy
Power (ground): DC power input 5v; built-in lithium battery; power consumption: 1.5-3W
Power supply (sky side): DC power input 5V; power consumption: 3-5W
Size (ground side): 68 * 48 * 15 (mm)
Size (sky side): 62 * 32 * 23 (mm)
Weight (ground side): 100g
Weight (sky side): 58g
parameter
1.Output distance (outdoor)
- standard antenna 1500 meters
- high gain directional antenna 5KM
2.Output delay
- 70-100ms
- 5.1GHz-5.8GHz
3.Modulation method:OFDM
4.Input video interface:Mini HDMI
5.Compatible with input video format:HDMI full format up to 1920 * 1080P @ 60
6.Output format:352 * 288 @ 30,720 * 576 @ 30,1280 * 720p @ 30 @ 60,1920 * 1080p @ 30
7.Compression rate:HEVC 3A HD TV broadcast
8.Number of communication channels:24 channels
9.Support device:phone, tablet, computer (demand WIFI support 802.11n / ac)
10.Support system:Android
11.Data interface:UART data Transparent transmission interface
12.Control signal output interface:4 sets of PWM signal output PTZ and other external device control
13.Communication encryption:256-bit encryption
14.Operating temperature:-10 ° -60 °
15.Certification Standard:FCC Standard
Receiving end parameter:
Size:68mm * 48mm * 15mm
Weight:100G
Interface:Micro usb 5v charging interface
Battery:built-in 1300mAh polymer lithium-ion battery (for 2.5 hours)
Video transmitter:
Size:62 * 32 * 23
Weight:58G
Power supply:5V DC input
Interface:Mini hdmi * 1 / UART * 1 / PWM * 4

HDMI FPV Insight 5G 200mW Full HD 1080P HDMI Digital FPV Wireless Video Transmitter System Combo
HDMI FPV Insight 5G 200mW Full HD 1080P HDMI Digital FPV Wireless Video Transmitter System Combo
HDMI FPV Insight 5G 200mW Full HD 1080P HDMI Digital FPV Wireless Video Transmitter System Combo
