Hobbywing Platinum HV 150A V5 3-8S Speed Controller


$189.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features

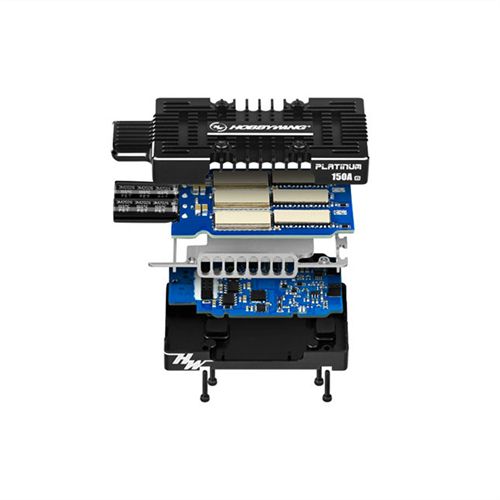

- Two-sided hollow cooling structure
- Smaller size,Stronger flow resistance
- Superior fixed speed capabilities
- Built-in programmable high power BEC
- It has multiple protection functions such as:
Start-up protection, current protection,
temperature protection, overload protection,
throttle signal loss protection, input voltage
protection, and effectively extending the life of the ESC.
Product Details
Brushed/Brushless: BL
High Voltage/Regular: Regular
Cont./Peak Current: 150A/180A
Input Voltage: 3-8S LiPo
BEC Output: Switch Mode:5-8V,10A
Input Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1
Output Wires: Black-12AWG-120mm*3
Input Connectors: No
Output Connectors: 4.0mm Gold Connectors (Female)
(Note: All the wire length above is the original
length not the length you see from the outside.)
ESC Programing via
- Transmitter: Not Supported
- LED Program Card: Not Supported
- LED Program Box: Not Supported
- LCD Program Box: Supported
- WiFi Module: Supported
- Program Port: Separate Program Port
- Firmware Upgrade: Supported
Size: 83x37x21mm
Weight: 140g
Platinum-150A-V5
Hobbywing Platinum HV 150A V5 3-8S Switchable 5-8V/10A BEC Brushless Speed Controller For RC Fix-wing 3D Flying Quadcopter
Hobbywing Platinum HV 150A V5 3-8S Switchable 5-8V/10A BEC Brushless Speed Controller For RC Fix-wing 3D Flying Quadcopter
Hobbywing Platinum HV 150A V5 3-8S Switchable 5-8V/10A BEC Brushless Speed Controller For RC Fix-wing 3D Flying Quadcopter
Hobbywing Platinum HV 150A V5 3-8S Switchable 5-8V/10A BEC Brushless Speed Controller For RC Fix-wing 3D Flying Quadcopter
Hobbywing Platinum HV 150A V5 3-8S Switchable 5-8V/10A BEC Brushless Speed Controller For RC Fix-wing 3D Flying Quadcopter
Hobbywing Platinum HV 150A V5 3-8S Switchable 5-8V/10A BEC Brushless Speed Controller For RC Fix-wing 3D Flying Quadcopter
  • 100 Units in Stock
