Makeflyeasy PixPilot C3 Flight Control Entry-Level Open Source



$175.00

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features

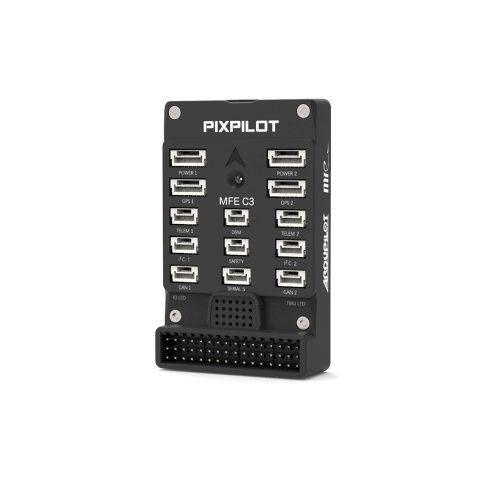

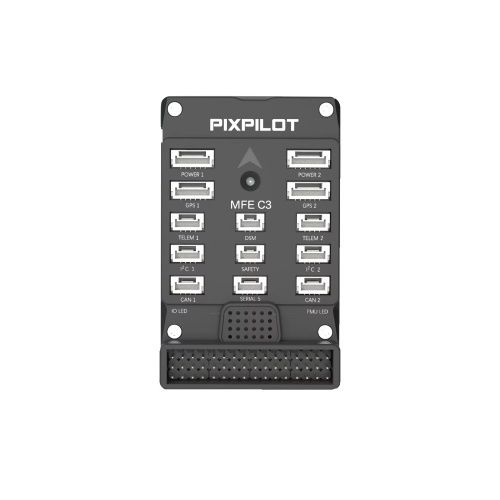

Makeflyeasy PixPilot C3 Flight Control Entry-Level
Open Source Flight Control for VTOL Fixed Wing
PixPilot C3 is a high-performance, small-size,
lightweight autopilot, suitable for small fixed-wing,
vertical take-off and landing fixed-wing, multi-rotor
autopilot systems, with stable and reliable,
simple installation, user-friendly features.
Product Details
Model：PixPilot C3
Main processor：STM32F427(32 Bit Arm Cortex-M4 180Mhz 2M Flash 256K RAM)
Coprocessor：STM32F103(32 Bit Arm Cortex-M3 72Mhz 64K Flash 20K RAM)
Sensor：ICM-42688-P X2(Acceleration and Gyro）,BMP388 X 2（Barometer）
UART：5
I2C：2
CAN：2
PWM：8+6
PPM/SBUS-IN：1
SBUS-OUT：1
Power：2
USB-Type-C：1
TF-card slot：1
Shell material：Engineering plastics
Operating temperature：-10 ℃~55℃
Size：76×45×16(mm)
Weight：37g
Item Packing
3
Detailed Images
MFE-PIXPILOT-C3
Makeflyeasy PixPilot C3 Flight Control Entry-Level Open Source Flight Control for VTOL Fixed Wing
Makeflyeasy PixPilot C3 Flight Control Entry-Level Open Source Flight Control for VTOL Fixed Wing
