Feetech FT750BL 24V 750kg Steel Gear Servo Brushless Motor



$484.93

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features

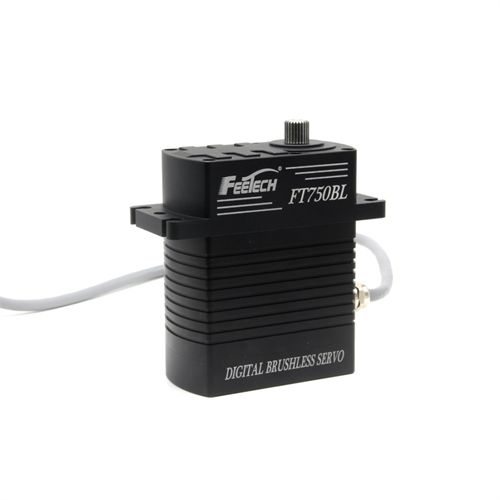

Feetech FT750BL 24V 750kg Steel Gear Servo Brushless Motor
180 Degree Magnetic Coding Industrial Digital Servo
Product Details
Model:FT-750B-C001
Product Name:24V 750KG 180 Degree Servo
Storage Temperature Range:-40℃~80℃
Operating Temperature Range:-40℃~60℃

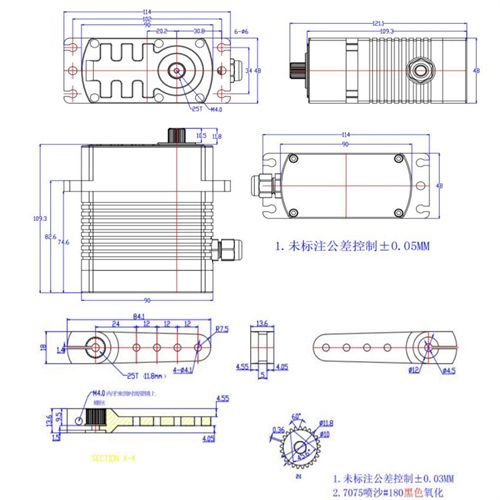

Size:A:90mm B:48mm C: 109.4mm
Weight:1050±5g
Gear type:Steel
Limit angle:NO limit
Bearing:Ball bearings
Horn gear spline:25T(11.8mm)
Gear Ratio:1/252
Case:Aluminum
Connector wire:43±1CM
Motor:Brushless Motor
Operating Voltage Range:16-28V
Idle current (atstopped):30mA@24V
No load speed:0.385sec/60°(26RPM)@24V
Runnig current(at no load):360mA@24V
Peak stall torque:750kg.cm@ 24V
Rated torque:250kg.cm@24V
Stall current:15.5A@24V
Command si gnal:Pulse width modulation
Control System Type:Digital comparator
Pulse width range:500~2500 μ sec
Stop position:1500 μ sec
Running degree:180±5°(at 500→2500μsec)
Dead band width:≤4 μ sec
Rotating direction:Clockwise (at 1500→2000μsec)

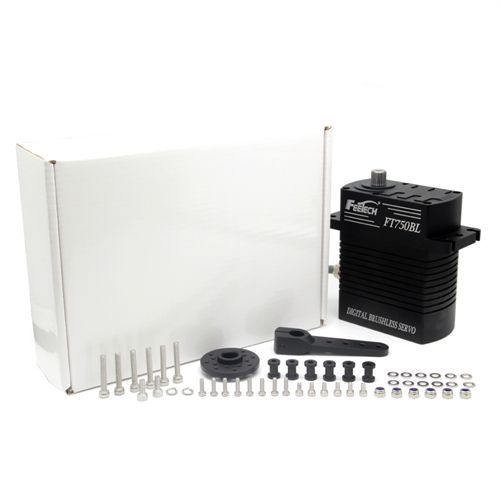

Item Packing
24V 600KG 180 Degree Servo x 1
FT-750B-C001
