GIM8108-9 Gear Ratio 1:9 Brushless Motor High Torque 9N.m


$612.00

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features

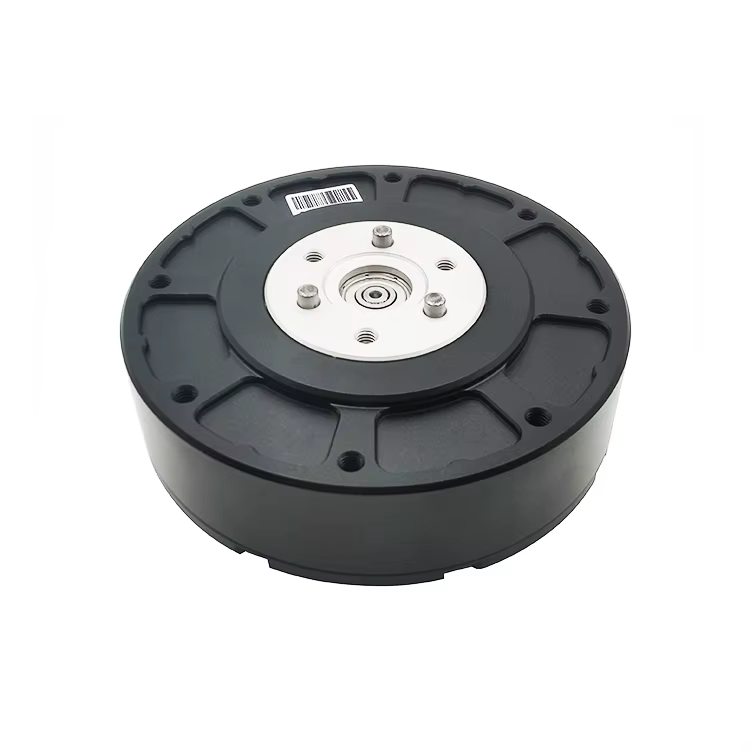

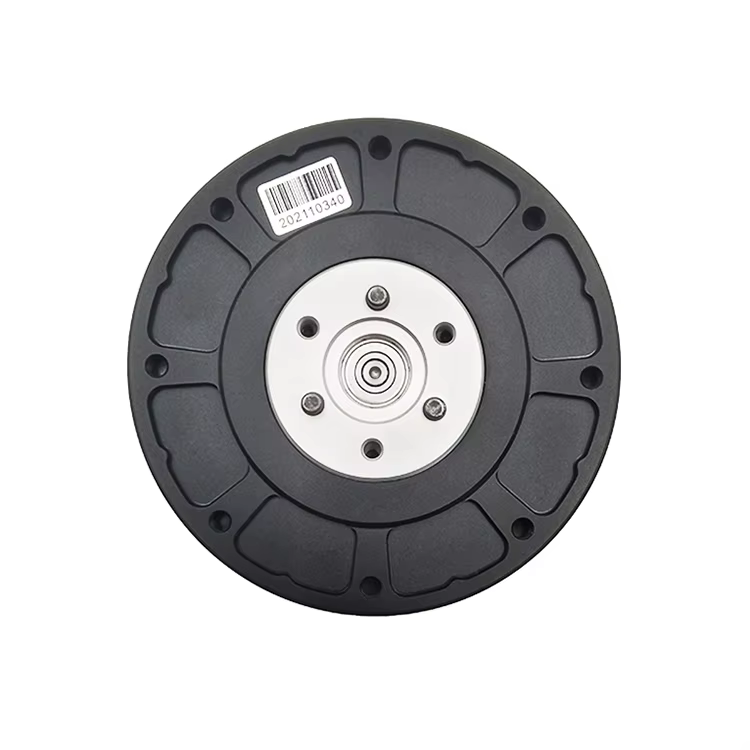

GIM8108-9 Gear Ratio 1:9 Brushless Motor High Torque 9N.m
avaleble: without driver, with MIT driver, with SHS driver
GIM motors has different sizes and gear ratios, drivers too.

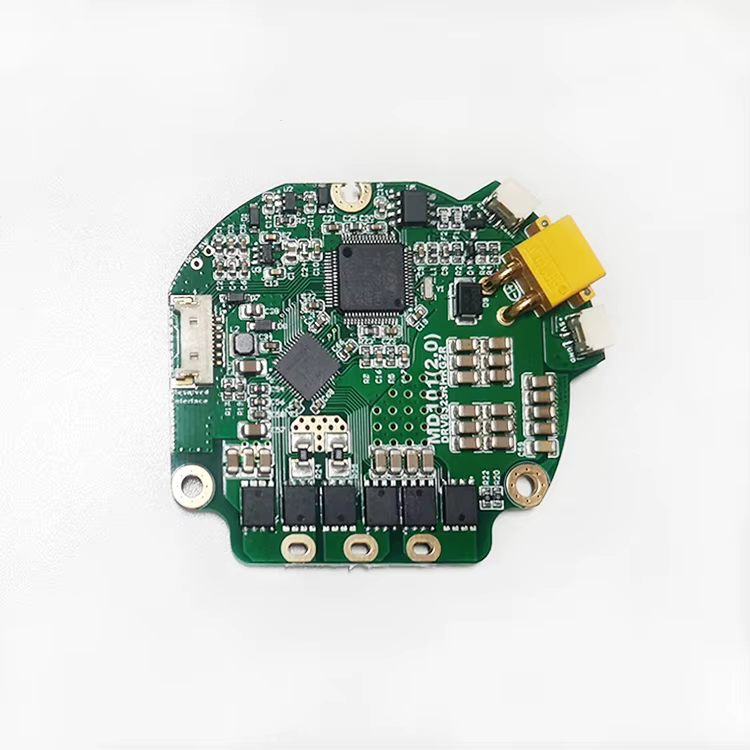

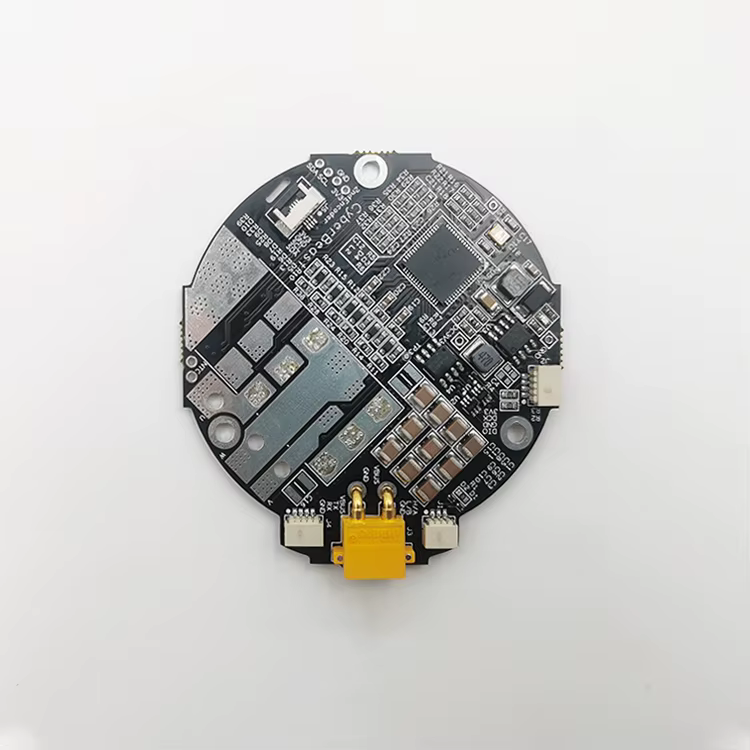

You can choose MIT open source driver or the new driver-SHS driver.
If you only need a driver, make sure the driver size and gear
ratio match the engine that is sold as standard.
Product Details
Specifications:
Weight (g) 567g
Model number GIM8108-9
Gimbal Accessories Type brushless motor Engine
Voltage Range 24~48V
Power 125W
Nominal Torque 9N.M
Nominal Speed 130RPM
Nominal Current 5A
Phase to phase resistance 0.28Ω
Phase to phase inductance 0.17mH
Speed ​​constant 100rpm/v
Torque constant 0.091NM/A
Rotor inertia 800gcm^2
Number of pole pairs 21Pairs
Gear Rate 9:1
Gear type Planetary
Reducer gear material STEEL
Reducer gear backlash <5arcmin
GIM8108-9 Gear Ratio 1:9 Brushless Motor High Torque 9N.m
GIM8108-9 Gear Ratio 1:9 Brushless Motor High Torque 9N.m
GIM8108-9 Gear Ratio 1:9 Brushless Motor High Torque 9N.m
GIM8108-9 Gear Ratio 1:9 Brushless Motor High Torque 9N.m
GIM8108-9 Gear Ratio 1:9 Brushless Motor High Torque 9N.m
GIM8108-9 Gear Ratio 1:9 Brushless Motor High Torque 9N.m
GIM8108-9 Gear Ratio 1:9 Brushless Motor High Torque 9N.m
GIM8108-9 Gear Ratio 1:9 Brushless Motor High Torque 9N.m
  • 100 Units in Stock
