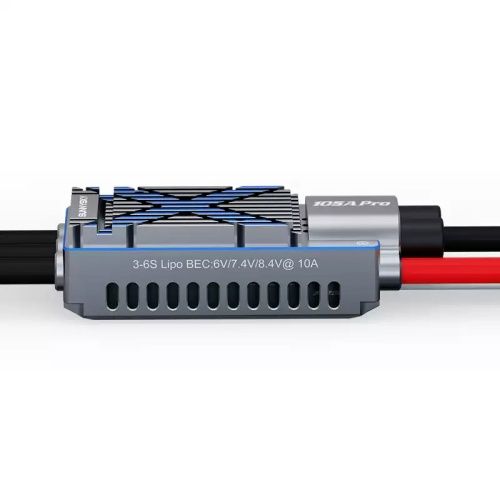

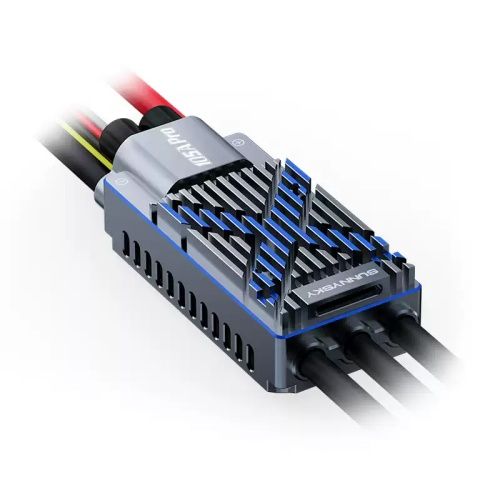

Sunnysky X105A PRO 3-6S NEW X-Series ESC 32-bit processor



$99.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
Excellent quality starts from the core
Equipped with a high-performance 32-bit processor, running at a
frequency of up to 170MHz, offering powerful computational
capabilities and fast operation speeds. The power output
components (MOSFET) utilize next-generation manufacturing
technology, providing low heat generation, high instantaneous
current handling capacity, and excellent reliability.
Product Details
Model:Sunnysky 105A PRO SBEC
Power Wire Specifications:12#150mm(red x1/black x1)
Motor Wire Specifications:12#150mm(black x3)
Connector:/
Ground Wire:/
Continuous Output Current:105A
Peak Output Current (Momentary):120A
Number of Cells:3-6S LiPo
CPU Frequency:170MHz
Telemetry Function:support
Speed Regulation Function:support
Software Upgrade Capability:support
Anti-spark Function:nothing
ESC Weight:Including fan:157g Excluding fan:148g
ESC Dimensions:Including fan:81x37x35.3mm Excluding fan:81x37x22.8mm
BEC Output:6V、7.4V、8.4V adjustable/10A Peak Current/25A
Parameter Programming Function:LCD programming card G2/Android&Apple APP
Signal Wire Specifications:60C 490mm black, red, yellow 3pin two JR
Connector;60C 490mm Black Red White 3pin Regular JR Connector
Data Wire (Telemetry) Specifications:30C 400mm yellow 1pin both ends
JR Connector;30C 400mm yellow 1pin, one end 1.5-3pin plug, one end JR Connector
Item Packing
Sunnysky 105A PRO ESC x1
X105A-PRO-ESC
Sunnysky X105A PRO 3-6S NEW X-Series ESC 32-bit processor for UAV FPV
Sunnysky X105A PRO 3-6S NEW X-Series ESC 32-bit processor for UAV FPV
Sunnysky X105A PRO 3-6S NEW X-Series ESC 32-bit processor for UAV FPV
  • 100 Units in Stock

Be the first to write a review.  Write a Review.
