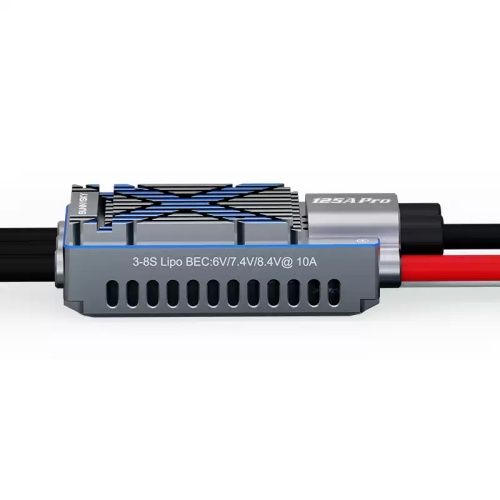

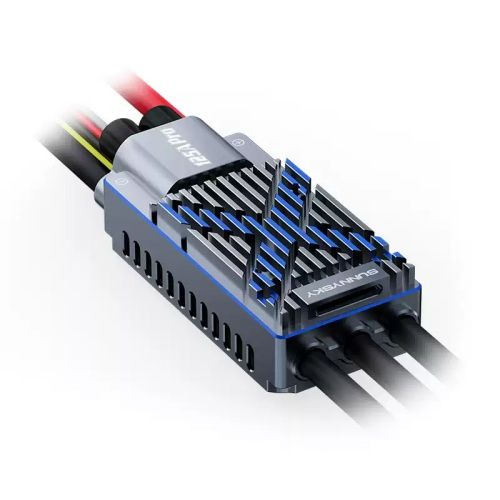

Sunnysky X125A PRO 3-8S Brushless Electric Speed Controller



$110.00

Add to Cart:


  • Description
  • Details
  • Reviews
  • offthegridsun info
Features
Sunnysky X125A PRO 3-8S Brushless Electric 110
Speed Controller for FPV Drones
Excellent quality starts from the core
Equipped with a high-performance 32-bit processor,
running at a frequency of up to 170MHz, offering
powerful computational capabilities and fast
operation speeds. The power output components(MOSFET)
utilize next-generation manufacturing technology,
providing low heat generation, high instantaneous
current handling capacity, and excellent reliability.
Product Details
Model:Sunnysky 125A PRO SBEC
Power Wire Specifications:10#150mm(red x1/black x1)
Motor Wire Specifications:10#150mm(black x3)
Connector:/
Ground Wire:/
Continuous Output Current:125A
Peak Output Current (Momentary):150A
Number of Cells:3-8S LiPo
CPU Frequency:170MHz
Telemetry Function:support
Speed Regulation Function:support
Software Upgrade Capability:support
Anti-spark Function:nothing
ESC Weight:Including fan:180g Excluding fan:170g
ESC Dimensions:Including fan:81x37x36.3mm Excluding fan:81x37x23.8mm
BEC Output:6V、7.4V、8.4V adjustable/10A Peak Current/25A
Parameter Programming Function:LCD programming card G2/Android&Apple APP
Signal Wire Specifications:60C 490mm black, red, yellow 3pin two
JR Connector;60C 490mm Black Red White 3pin Regular JR Connector
Data Wire (Telemetry) Specifications:30C 500mm yellow 1pin both ends
JR Connector;30C 500mm yellow 1pin, one end 1.5-3pin plug, one end JR Connector
Item Packing
Sunnysky 105A PRO ESC x1
X125A-PRO-ESC
Sunnysky X125A PRO 3-8S Brushless Electric Speed Controller for FPV Drones
Sunnysky X125A PRO 3-8S Brushless Electric Speed Controller for FPV Drones
Sunnysky X125A PRO 3-8S Brushless Electric Speed Controller for FPV Drones
  • 100 Units in Stock

Be the first to write a review.  Write a Review.

The NEW Small UAS Rule (Part 107), including all pilot and operating rules, will be effective in August 2016. For more detailed information, please see:

Need more information? Read about how to fly a UAS for your work or business.


This product was added to our catalog on Saturday 26 April, 2025.
